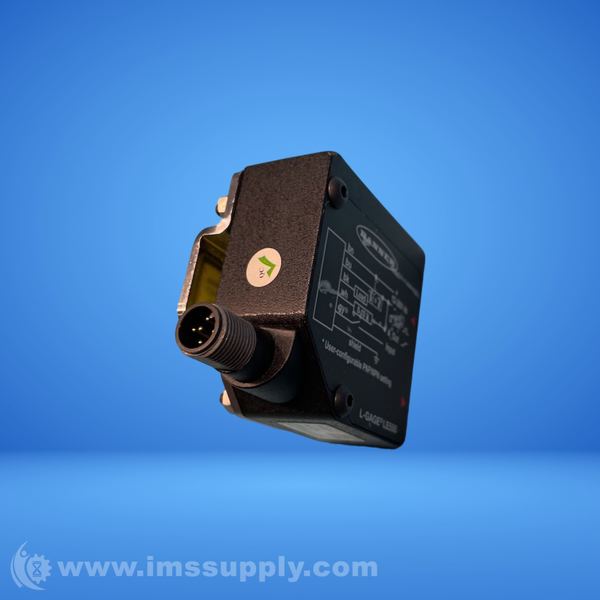

BANNER LE550UQ LASER DISPLACEMENT SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: LE550UQ
IMS Product Code: 2053431
Packaging: Sold Individually
Description:
Banner LE550UQ Laser Displacement Sensor
Laser displacement sensor with 100-1000 mm range, 12-30 V dc input, analog and discrete outputs, and M12 integral quick disconnect.
Specifications
- Supply Voltage: 12-30 V dc
- Sensing Mode: Triangulation
- Housing Style: Rectangular
- Primary Housing Material: Zinc Alloy Die-Cast
- Laser Classification: Class 2
- Analog Output Configuration: 0-10 V dc
- Discrete Outputs: 1 NPN/PNP Configurable
- Max Sensing Distance: 1000 mm
- Min Sensing Distance: 100 mm
- IP Rating: IP67
- NEMA Rating: NEMA 6
- Max Operating Temperature: 55 degrees C
- Min Operating Temperature: -20 degrees C
- Minimum Response Time: 2 ms
- Max Ambient Light: 10000 Lux
- Number of Pins: 5
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships on Monday, November 3, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 5 In Stock
Ships on Monday, November 3, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Mounted on bracket (SMBLEFA)
Availability: 1 In Stock
Ships on Monday, November 3, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
