BANNER M18SP6FF25Q PROXIMITY SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: M18SP6FF25Q
IMS Product Code: 2052951
Packaging: Sold Individually
Description:

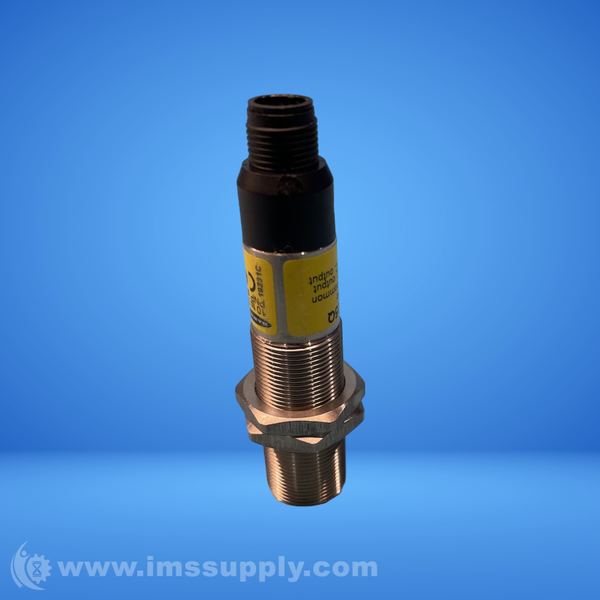

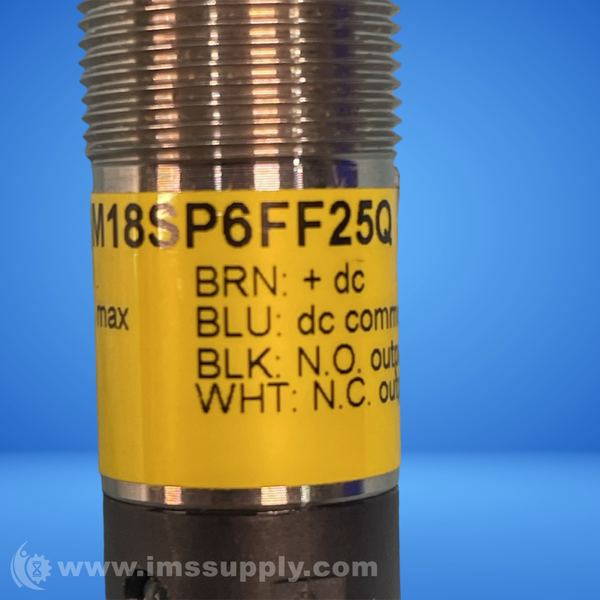

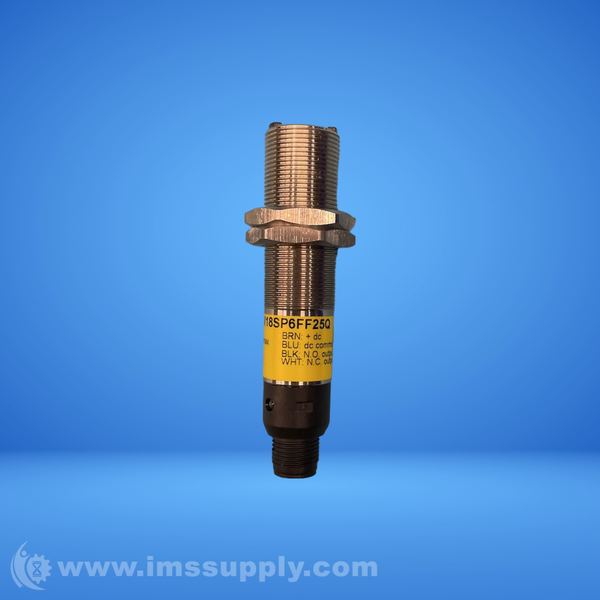

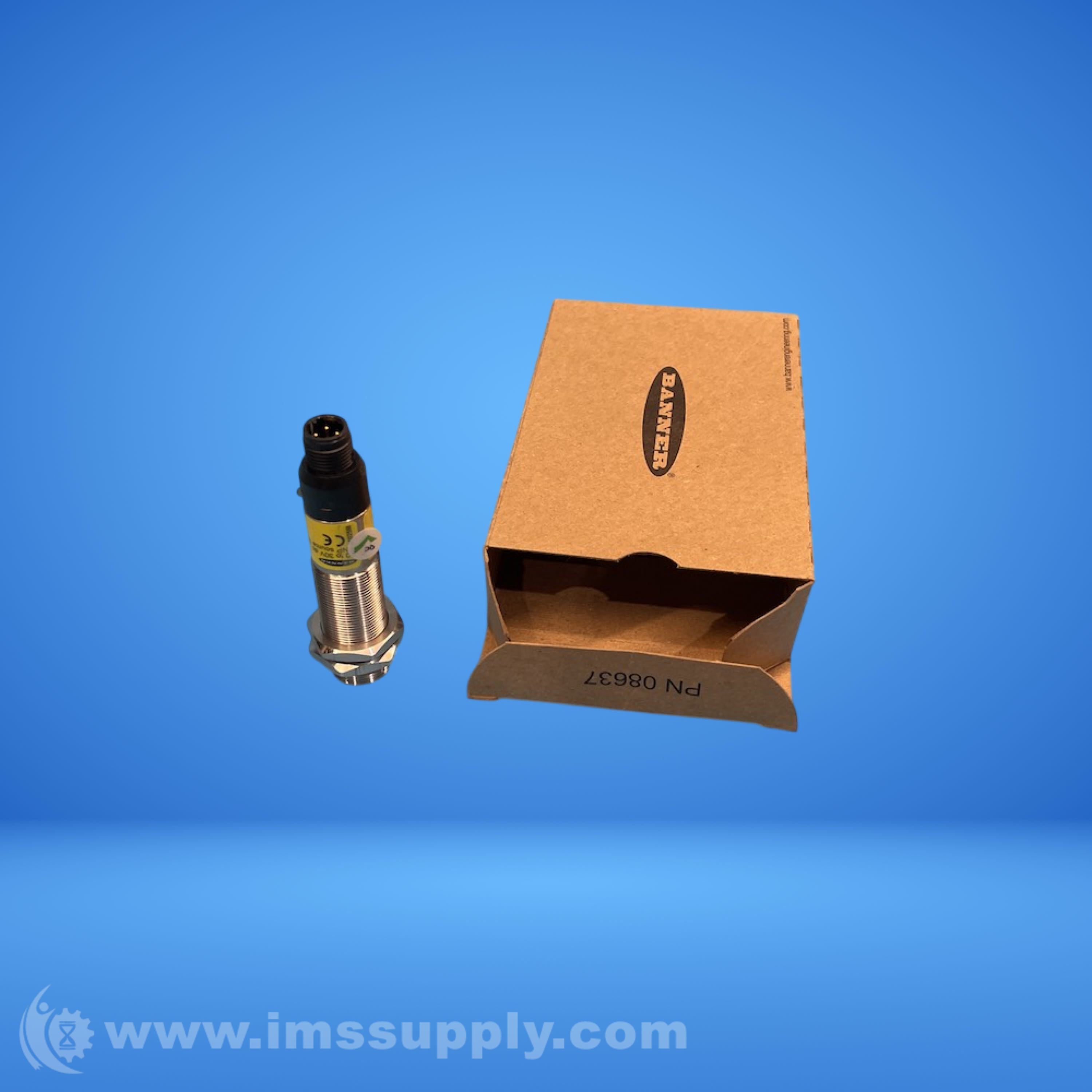

Banner M18SP6FF25Q Proximity Sensor
18mm Metal Barrel-Mount Sensor with Background Suppression (Fixed); Range: 25 mm; Input: 10-30 V dc; Complementary PNP; 4-pin M12 Integral QD
Specifications
- Supply Voltage: 10-30 V dc
- Sensing Mode: Proximity
- Sensing Beam: Infrared LED
- Max Sensing Distance: 25 mm
- Output: PNP
- Connection: Integral QD
- Quick Disconnect Type: M12
- Primary Housing Material: Stainless Steel
- Lens Material: Acrylic
- Operating Temperature: -40 to 70 degrees C
- IP Rating: IP69K
- NEMA Rating: NEMA 4X
- Output Response Time: 3 ms
- Repeatability: 750 �s
- Delay at Power-up: 100 ms
- Max Op. Relative Humidity: 90% @ 50�C
- Special Features: Washdown Rated, Encapsulated, Chemical Resistant
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 10 In Stock
Ships today if ordered in the next 1 hours and 23 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 4 In Stock
Ships today if ordered in the next 1 hours and 23 minutes.
