BANNER ENGINEERING CORP. OTBVP6QDH MOMENTARY TOUCH BUTTON
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: OTBVP6QDH
IMS Product Code: 312905
Packaging: Sold Individually
Description:

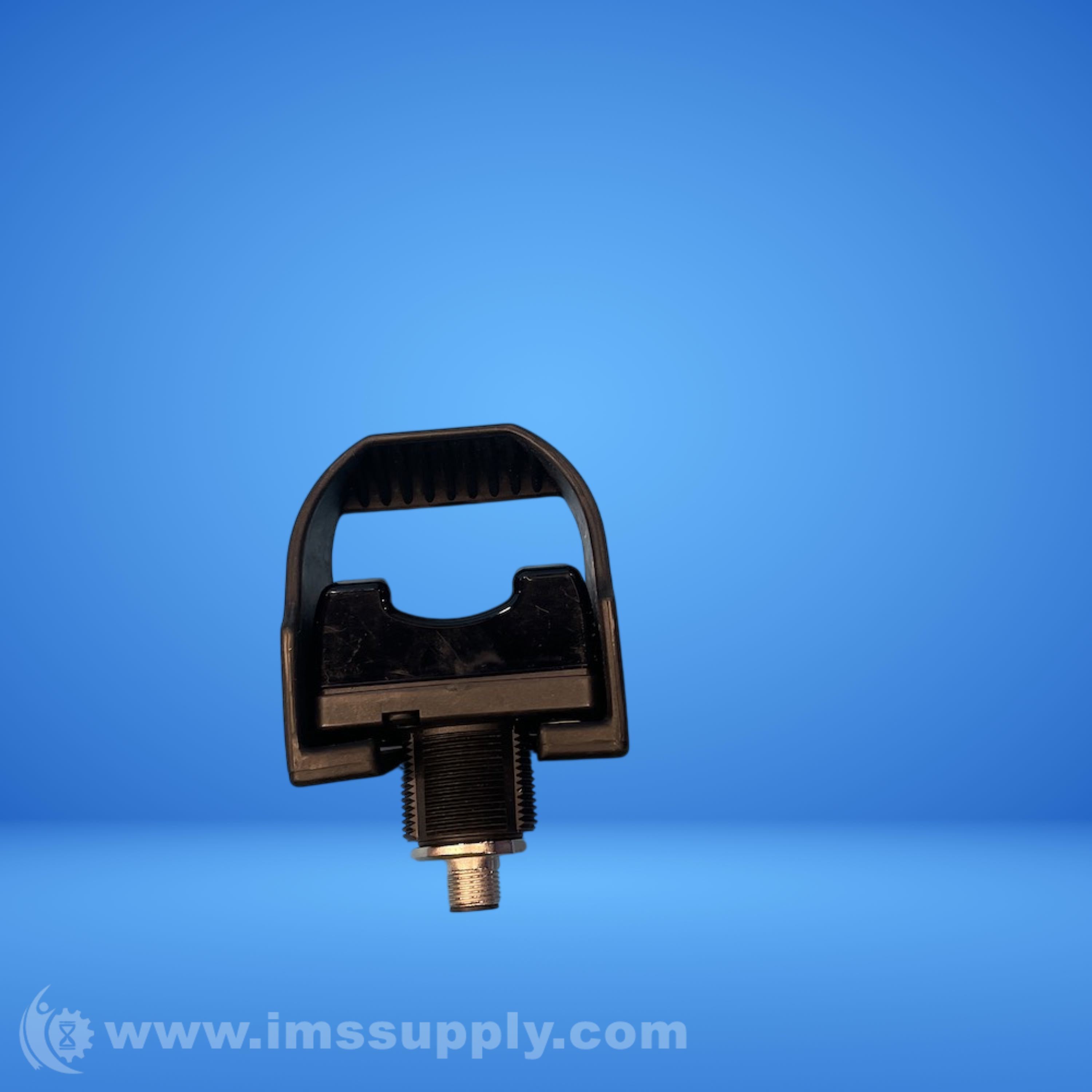

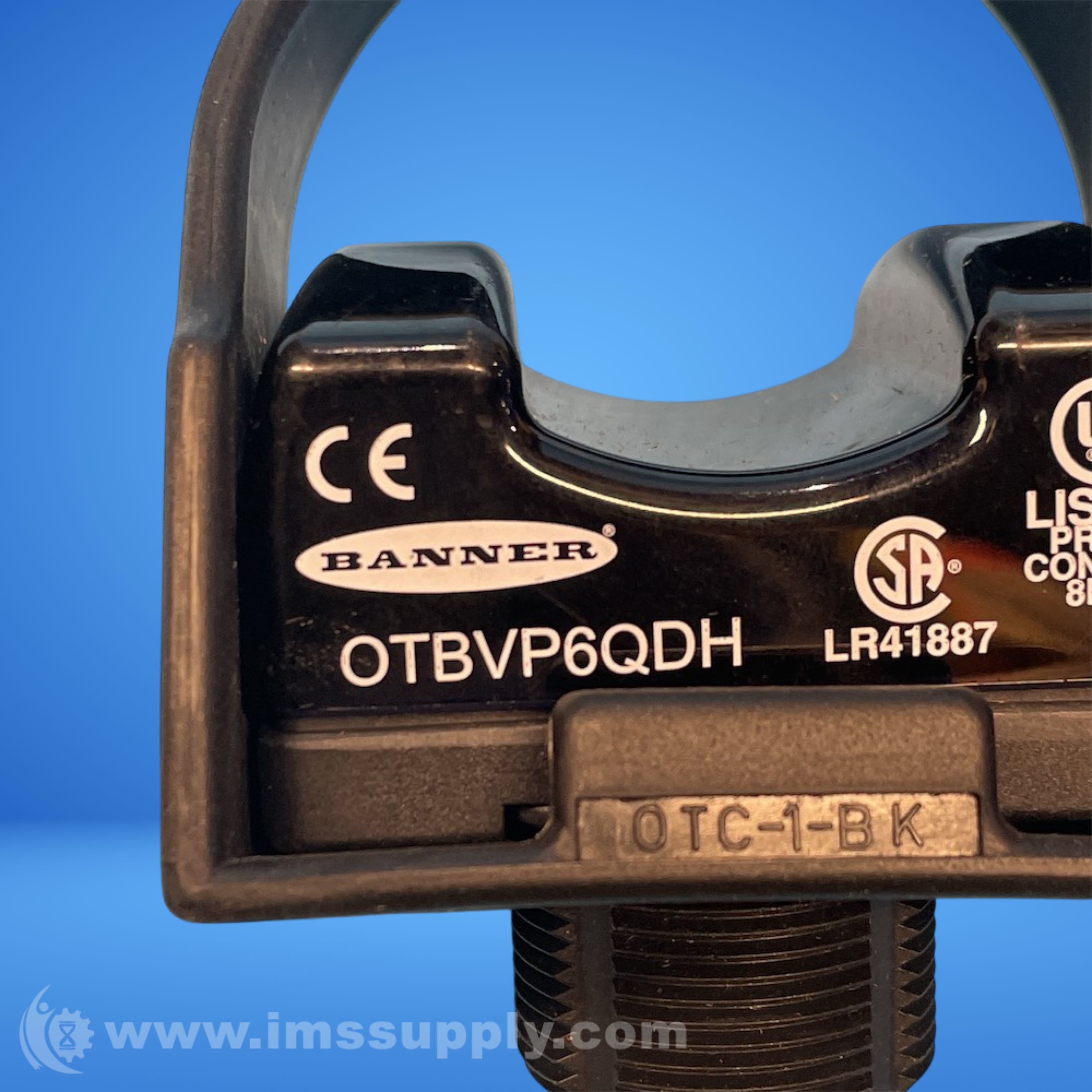

Banner Engineering Corp. OTBVP6QDH Momentary Touch Button
Momentary action touch button with black finish, M30 x 1.5 mounting thread, and M12 quick disconnect.
Specifications
- Supply Voltage: 10-30 V dc
- Output Type: PNP
- Operation: Normally Open/Normally Closed
- Mounting Thread: M30 x 1.5
- Connection: Integral QD
- Quick Disconnect Type: M12
- Number of Input Pins/Conductors: 4
- Primary Housing Material: Thermoplastic Polysulfone
- Environmental Rating: IP66
- Physical Dimensions (LxWxH or DxH mm): 59.9 x 43.2 x 48.0
- Min Op. Temperature (C): -20
- Max Op. Relative Humidity Non-Condensing (%): 90% @ 50C
- Button Operation: Momentary
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
