BANNER ENGINEERING CORP. PIAT46UHFMTA PLASTIC FIBER SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: PIAT46UHFMTA
IMS Product Code: 314401
Packaging: Sold Individually
Description:
Banner Engineering Corp. PIAT46UHFMTA Plastic Fiber Sensor

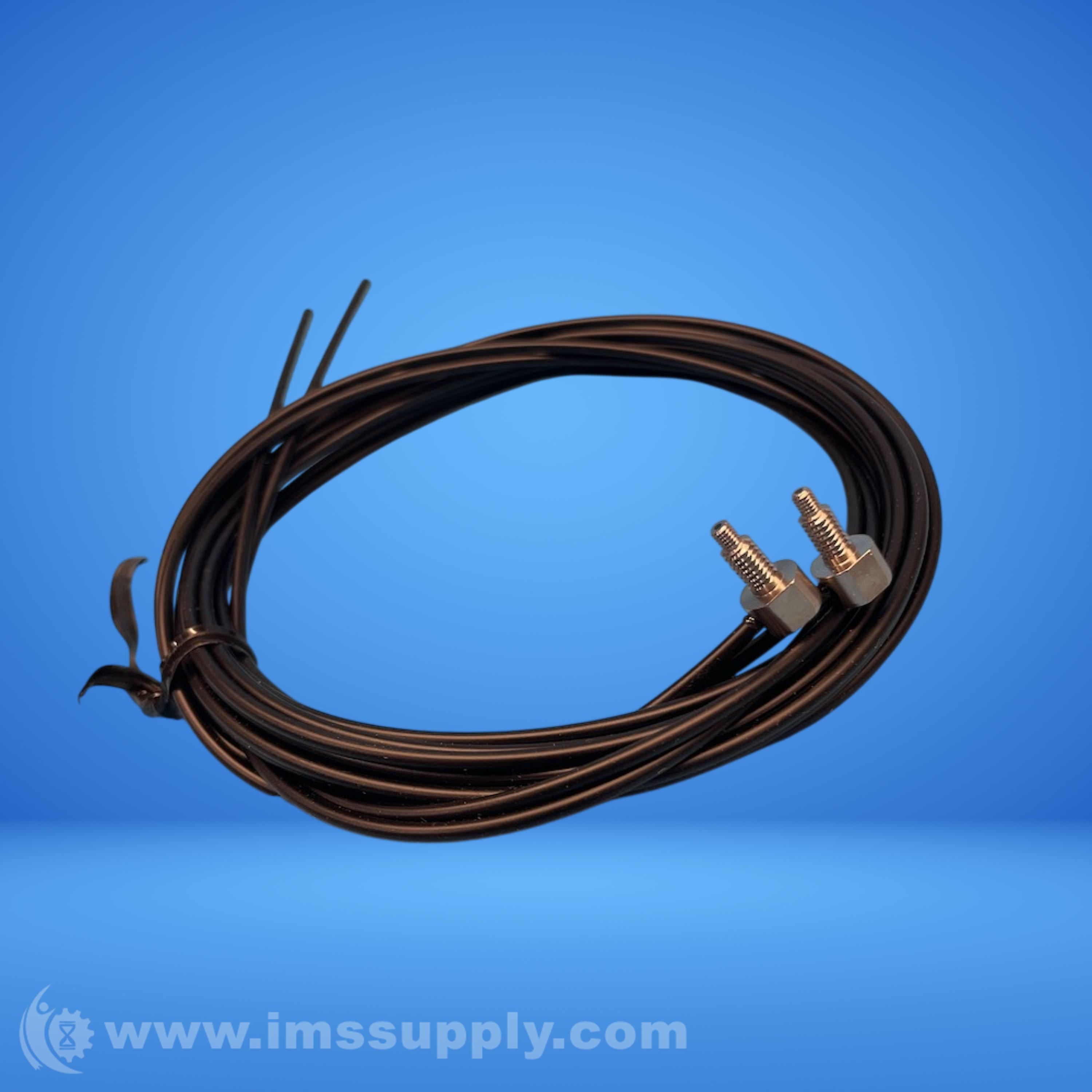

Plastic fiber optic sensor for opposed mode sensing applications. 2m length with M2.5 threaded sensing end and free cut termination.
Specifications
- housing style: Round
- fiber optic type: Plastic
- sensing mode: Opposed
- beam exit: Right Angle
- sensing end material: Stainless Steel
- fiber sheathing material: Polyethylene
- fiber sensing end tip: Thread
- fiber length: 2 m
- fiber sensing end size: M2.5
- core diameter: 1.1 mm
- minimum bend radius: 2 mm
- termination: Free Cut
- max temperature: 70 degrees C
- minimum repeat bending endurance: 1000
- sensing distance: 46 m
- output type: NPN
- supply voltage: 10-30 VDC
- connection: 4-Pin M12 Connector
- operating temperature: -20 to 55 degrees C
- ip rating: IP67/IP69K
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 23 In Stock
Ships today if ordered in the next 5 hours and 44 minutes.
