BANNER Q23SN6FPQ PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: Q23SN6FPQ
IMS Product Code: 2028698
Packaging: Sold Individually
Description:

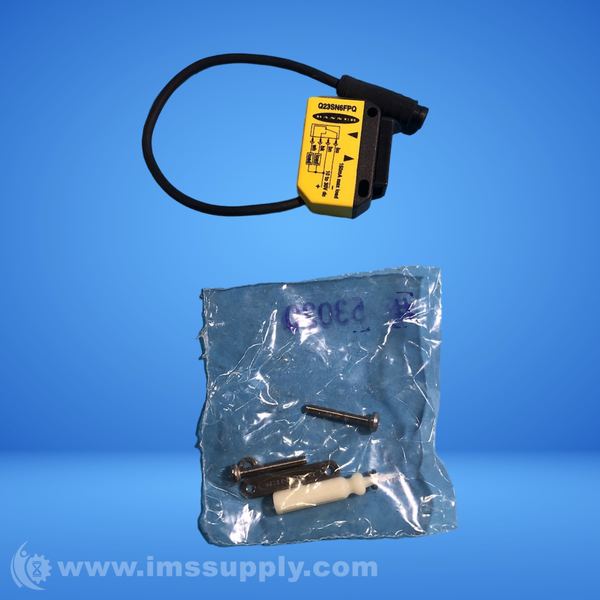

Banner Q23SN6FPQ Photoelectric Sensor
Q23 Series: Plastic Fiber Optic Photoelectric Sensor, 10-30V DC, NPN Output, M8x1 4-pin Pico Connection
Specifications
- Power: DC
- Sensing Beam: Visible Red LED
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA 4X
- Supply Voltage: 10-30 V dc
- Sensing Mode (General): Proximity
- Sensing Mode (Detailed): Diffuse
- Housing Style: Rectangular
- Primary Housing Material: Thermoplastic
- Input Output: Discrete
- Color LED - Amplifiers: Red
- Outputs: NPN
- Connection: Pigtail QD
- Quick Disconnect Type: M8
- Min Op. Temp. (°C): -20
- Max Op. Temp. (°C): 55
- Output response time (ms): 1
- Delay at Power-up (ms): 100
- Repeatability (µs): 250
- Number of Pins: 4
- Max Op. Relative Humidity [%]: 90% @ 50°C
- Lens Material: Acrylic
- Adjustments: Potentiometer
- Indicator: LEDs
- Feature: Washdown Rated: Yes
- Feature: Quick Disconnect: Yes
- Feature: Health/Marginal Signal Output: Yes
- Weight: 0.05 lbs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, November 3, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
