BANNER Q45BB6DQ5 DIFFUSE RECTANGULAR SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: Q45BB6DQ5
IMS Product Code: 2133813
Packaging: Sold Individually
Description:

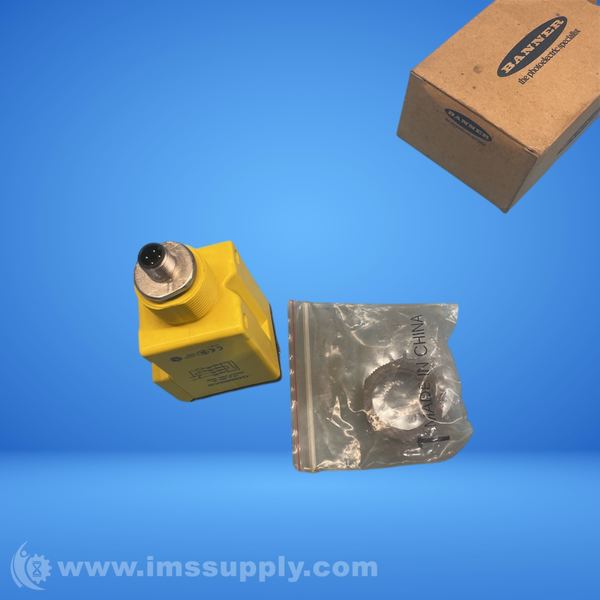

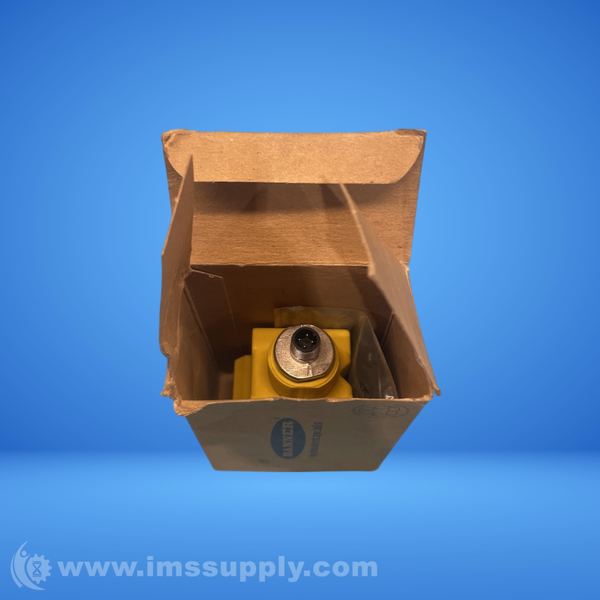

Banner Q45BB6DQ5 Diffuse Rectangular Sensor
Photoelectric sensor with diffuse reflective sensing mode, bipolar NPN & PNP output, and M12 4-pin connector.
Specifications
- Supply Voltage: 10-30 V dc
- Sensing Mode: Diffuse
- Max Sensing Distance: 450 mm
- Output Type: Bipolar (NPN & PNP)
- Connection: Integral QD M12
- Operating Temperature: -40 to 70 degrees C
- Housing Material: Thermoplastic
- IP Rating: IP67
- NEMA Rating: NEMA 4X
- Response Time: 2 ms
- Lens Material: Acrylic
- Adjustments: Potentiometer
- Indicator: LEDs
