BANNER QS18AB6AF300Q5 PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: QS18AB6AF300Q5
IMS Product Code: 2131803
Packaging: Sold Individually
Description:

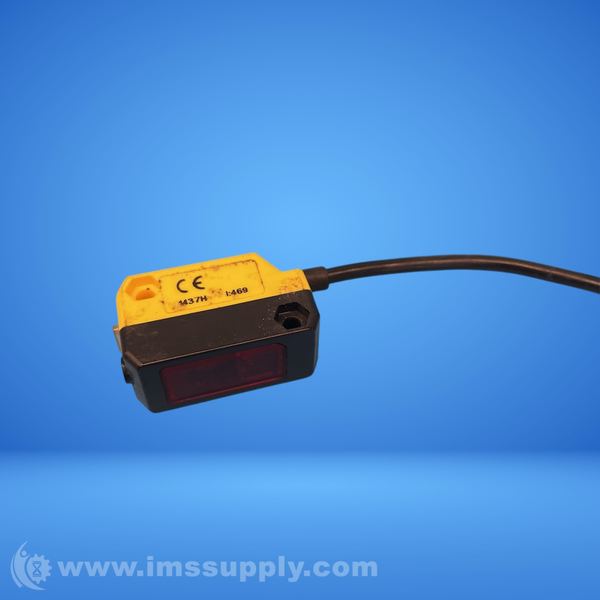

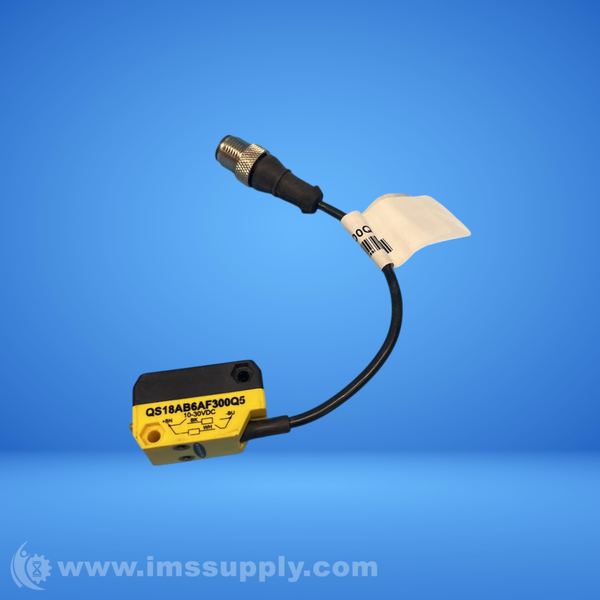

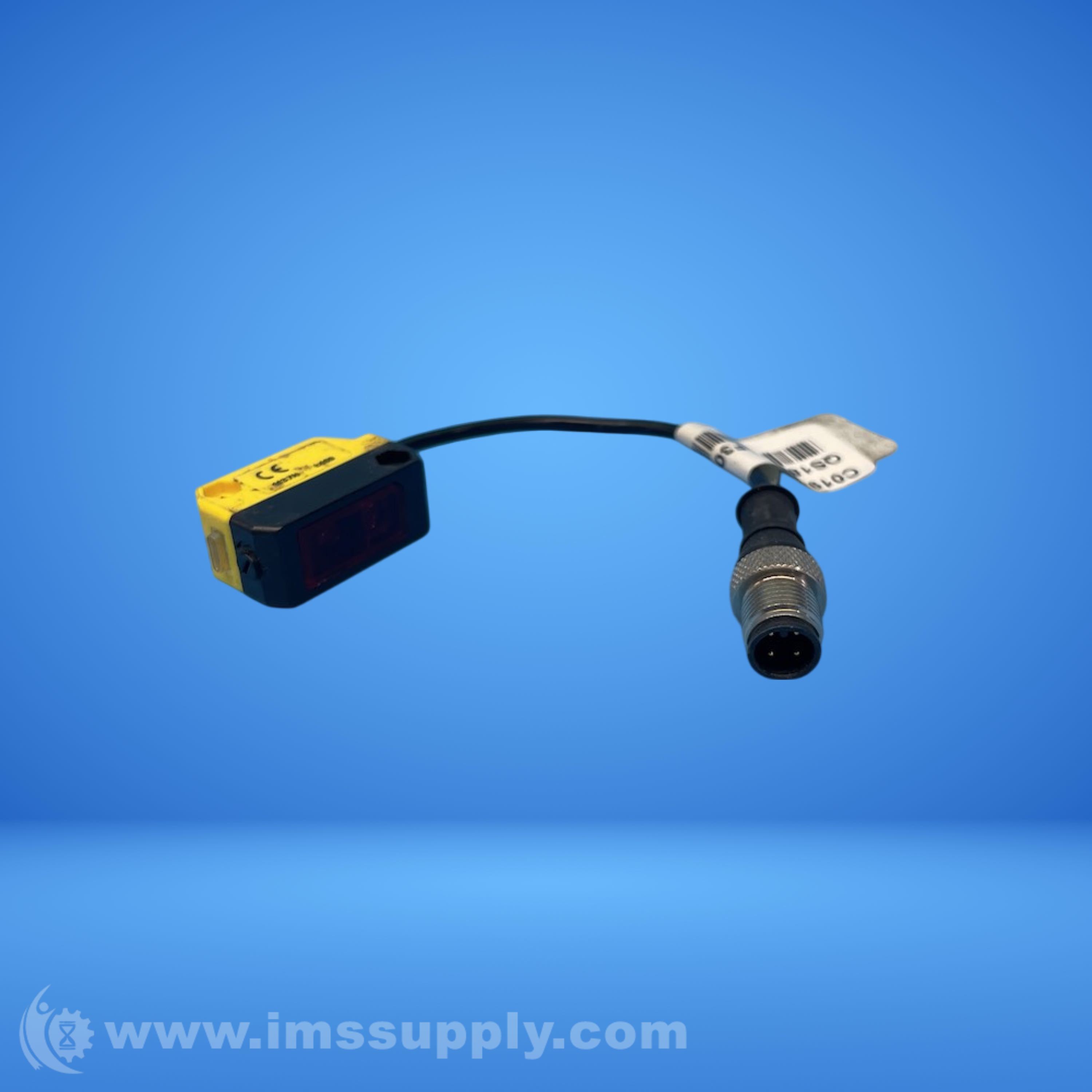

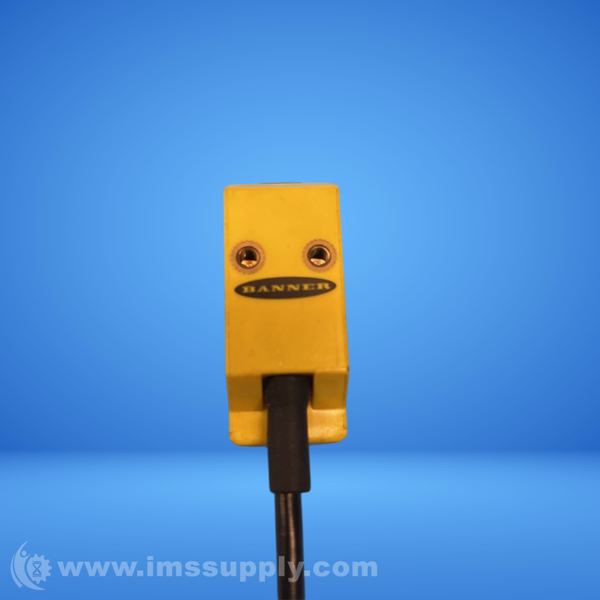

Banner QS18AB6AF300Q5 Photoelectric Sensor
Rectangular photoelectric sensor with background suppression, 10-30 V dc supply, bipolar NPN/PNP output, visible red LED sensing beam, M12 pigtail quick disconnect
Specifications
- Supply Voltage: 10-30 V dc
- Sensing Mode: Background Suppression (Adjustable)
- Max Sensing Distance: 300 mm
- Output Type: Bipolar (NPN & PNP)
- Connection: Pigtail QD, M12
- Operation: Light Operate
- Housing Material: ABS
- Lens Material: Acrylic
- IP Rating: IP67
- NEMA Rating: NEMA 4X
- Operating Temperature: -20 to 55 degrees C
- Output Response Time: 2.5 ms
- Sensing Beam Wavelength: 640 nm
- Repeatability: 250 µs
- Delay at Power-up: 200 ms
- Number of Pins: 4
- Max Relative Humidity: 95% @ 50°C
- Adjustments: Mechanical Screw
- Indicators: LEDs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
