BANNER QS18VP6DL PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: QS18VP6DL
IMS Product Code: 2147897
Packaging: Sold Individually
Description:

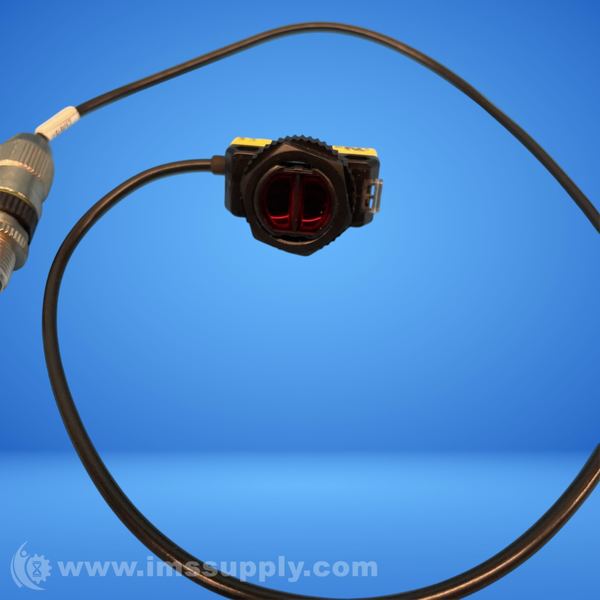

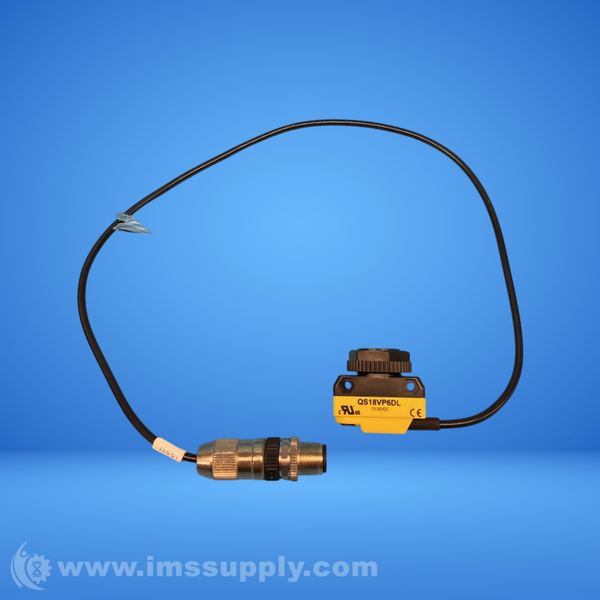

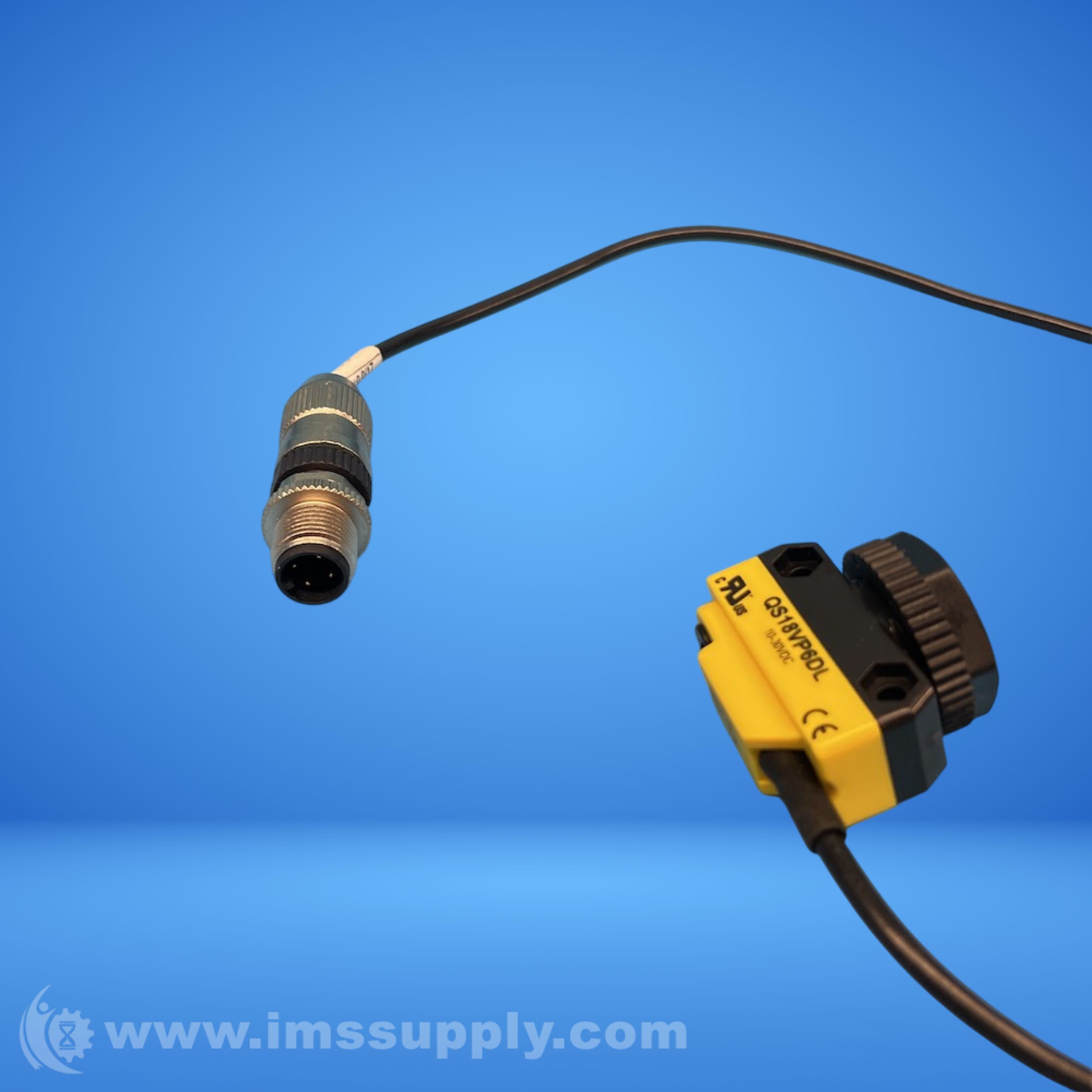

Banner QS18VP6DL Photoelectric Sensor
QS18 Series All Purpose Photoelectric Sensor
Specifications
- Power: DC
- Sensing Beam: Infrared LED
- Cable Length (m): 2
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA 4X
- Supply Voltage: 10-30 V dc
- Sensing Mode (General): Proximity
- Sensing Mode (Detailed): Diffuse
- Housing Style: Rectangular w/M18 Mount
- Primary Housing Material: ABS
- Input Output: Discrete
- Max Sensing Distance (mm): 600
- Outputs: PNP
- Connection: Cable
- Operation: Light/Dark Operate
- Min Op. Temp. (degrees C): -20
- Max Op. Temp. (degrees C): 70
- Output response time (ms): 0.85
- Sensing Beam Wavelength: 940
- Delay at Power-up (ms): 100
- Repeatability (s): 90
- Number of Pins: 4
- Max Op. Relative Humidity: 95% @ 50C
- Lens Material: Acrylic
- Adjustments: Potentiometer
- Barrel Diameter (mm): 18
- Indicator: LEDs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
Ships on Monday, November 3, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
