BANNER ENGINEERING QS18VP6LLPQ5 POLARIZED LASER PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: QS18VP6LLPQ5
IMS Product Code: 2025276
Packaging: Sold Individually
Description:

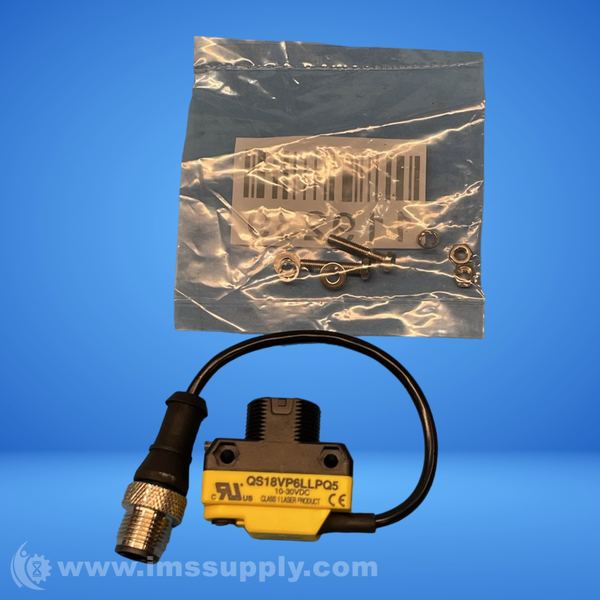

Banner Engineering QS18VP6LLPQ5 Polarized Laser Photoelectric Sensor
Polarized laser photoelectric sensor with 10-30 VDC PNP output, 0.15m M12 pigtail QD, IP67 rating, and -10 to 50 degrees C operating temperature.
Specifications
- Supply Voltage: 10-30 V dc
- Sensing Mode: Retroreflective - Polarized
- Max Sensing Distance: 10000 mm
- Outputs: PNP
- Connection: Pigtail QD
- Quick Disconnect Type: M12
- Housing Style: Rectangular w/M18 Mount
- Primary Housing Material: ABS
- Laser Classification: Class 1
- Min Op. Temp.: -10 degrees C
- Max Op. Temp.: 50 degrees C
- IP Rating: IP67
- NEMA Rating: NEMA 4X
- Output response time: 0.7 ms
- Sensing Beam Wavelength: 650
- Delay at Power-up: 200 ms
- Repeatability: 130 µs
- Number of Pins: 4
- Max Op. Relative Humidity: 95% @ 50°C
- Lens Material: Acrylic
- Adjustments: Potentiometer
- Barrel Diameter: 18 mm
- Indicator: LEDs
