BANNER QS30AF600Q PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: QS30AF600Q
IMS Product Code: 2053343
Packaging: Sold Individually
Description:

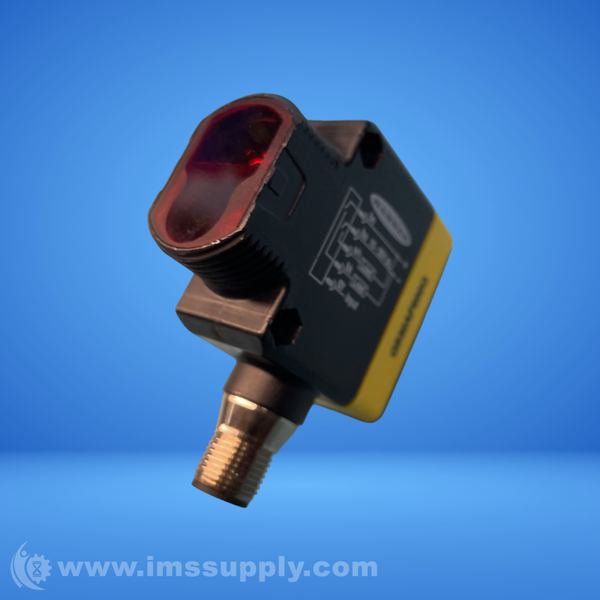

Banner QS30AF600Q Photoelectric Sensor
Rectangular photoelectric sensor with background suppression, 600mm sensing distance, bipolar output (NPN & PNP), M12 quick disconnect, IP67 rating.
Specifications
- Supply Voltage: 10-30 V dc
- Sensing Mode: Background Suppression (Adjustable)
- Max Sensing Distance: 600 mm
- Output Type: Bipolar (NPN & PNP)
- Connection Type: Integral QD, M12
- Housing Material: Thermoplastic
- Operating Temperature: -20°C to 60°C
- IP Rating: IP67
- NEMA Rating: NEMA 4X
- Lens Material: Acrylic
- Adjustments: Mechanical Screw
- Indicator: LEDs
- Output Response Time: 5 ms
- Repeatability: 750 µs
- Delay at Power-up: 200 ms
- Number of Pins: 5
- Max Op. Relative Humidity: 95% @ 50°C
