BANNER QS30LDLQ LASER SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: QS30LDLQ
IMS Product Code: 2049688
Packaging: Sold Individually
Description:
Banner QS30LDLQ Laser Sensor
Diffuse-mode Laser Sensor with 1 NPN and 1 PNP bipolar output. The WORLD-BEAM QS30 series sensor is an easy-to-use, high-performance laser sensor whose many configuration options make it suitable for demanding applications.
Specifications
- Power: DC
- Sensing Beam: Visible Red Laser
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA 4X
- Supply Voltage: 10-30 V dc
- Sensing Mode (General): Proximity
- Sensing Mode (Detailed): Diffuse
- Housing Style: Rectangular w/M30 Mount
- Primary Housing Material: Thermoplastic
- Laser Classification: Class 2
- Small Visible Spot: Laser
- Input Output: Discrete
- Max Sensing Distance (mm): 800
- Outputs: Bipolar (NPN & PNP)
- Connection: Integral QD
- Quick Disconnect Type: M12
- Operation: Light/Dark Operate
- Min Op. Temp. (C): -10
- Max Op. Temp. (C): 50
- Output response time (ms): 0.5
- Special Feature: Remote Teach
- Sensing Beam Wavelength: 658
- Delay at Power-up (ms): 1000
- Repeatability (µs): 70
- Number of Pins: 5
- Max Op. Relative Humidity [%]: 95% @ 50°C
- Lens Material: Acrylic
- Adjustments: Teach Button
- Barrel Diameter (mm): 30
- Indicator: LEDs
- Feature: Timing (Hold/Delay)
- Feature: Quick Disconnect
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, November 3, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships on Monday, November 3, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships on Monday, November 3, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):

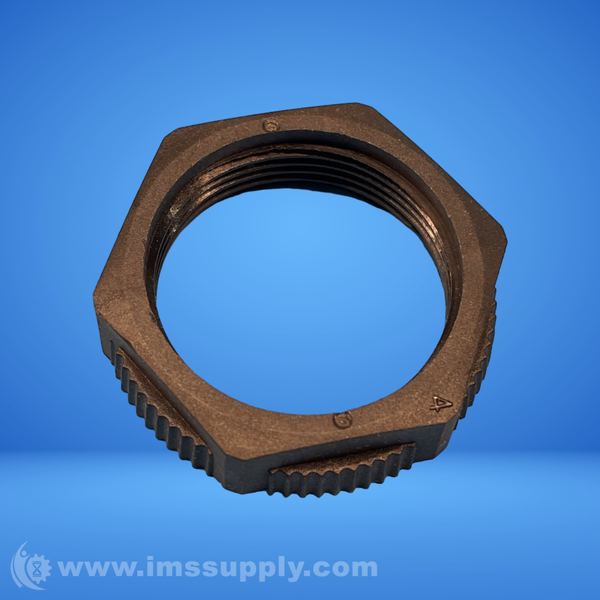

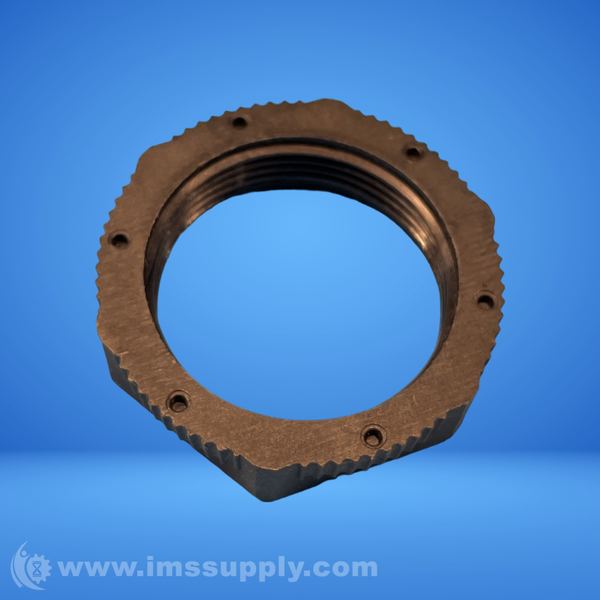

Parts come with mounting bracket.
Availability: 6 In Stock
Ships on Monday, November 3, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
