BANNER QS30LDQ DIFFUSE LASER SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: QS30LDQ
IMS Product Code: 2131311
Packaging: Sold Individually
Description:

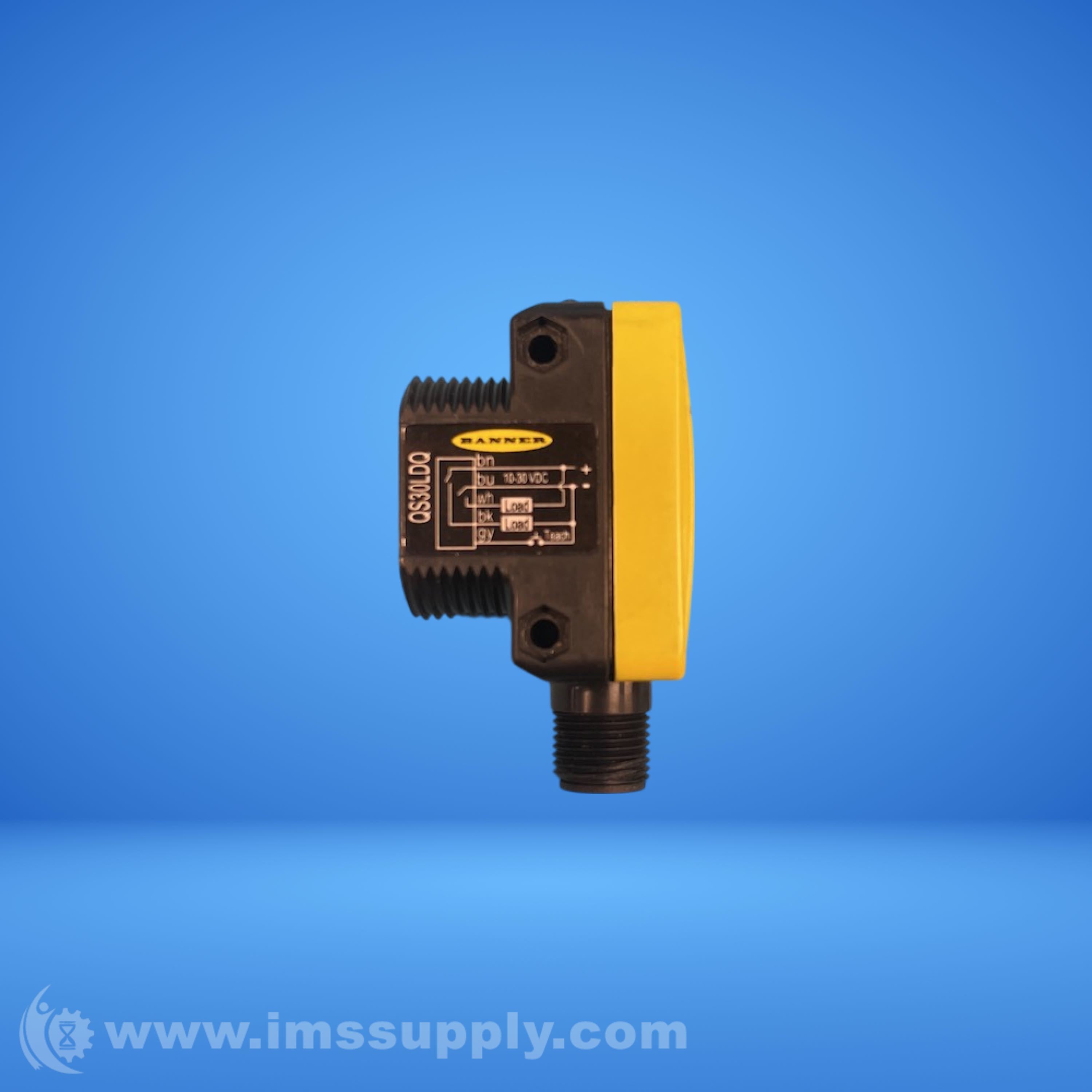

Banner QS30LDQ Diffuse Laser Sensor
Diffuse-mode laser sensor for demanding applications, 400mm sensing distance, NPN/PNP output, 10-30VDC supply voltage, M12 quick disconnect.
Specifications
- Supply Voltage: 10-30 V dc
- Sensing Mode: Diffuse
- Max Sensing Distance: 400 mm
- Output Type: Bipolar (NPN & PNP)
- Connection: Integral QD, M12
- IP Rating: IP67
- Operating Temperature: -10 to 50 degrees C
- Laser Classification: Class 1
- Response Time: 0.5 ms
- Remote Teach: Yes
- Housing Material: Thermoplastic
- Lens Material: Acrylic
- Number of Pins: 5
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships on Monday, October 6, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
