BANNER QS30RRXQ HIGH-POWERED RECEIVER
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: QS30RRXQ
IMS Product Code: 2176839
Packaging: Sold Individually
Description:

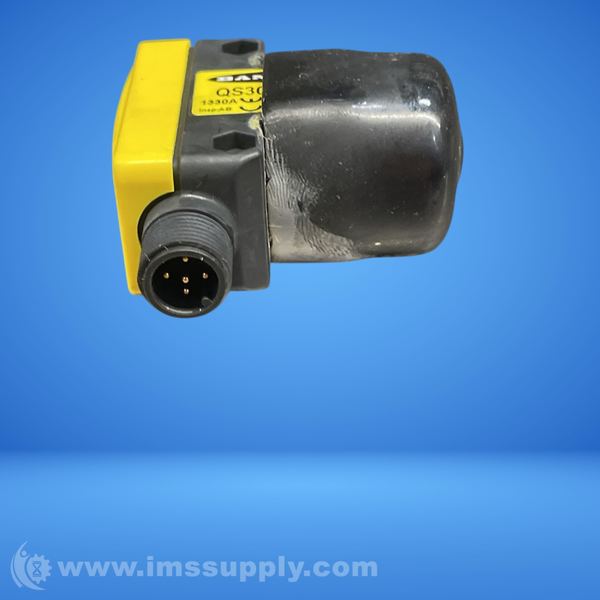

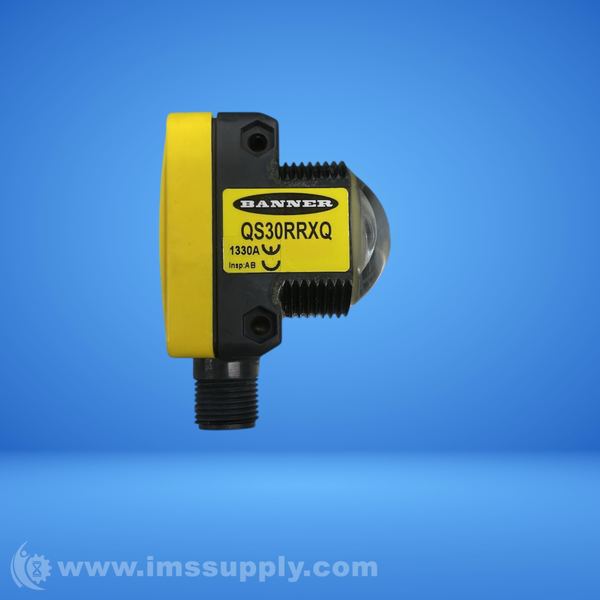

Banner QS30RRXQ High-Powered Receiver
Opposed mode receiver with 10-30V dc supply voltage and bipolar NPN/ PNP outputs
Specifications
- Power: DC
- Sensing Beam: Infrared LED
- Supply Voltage: 10-30 V dc
- Housing Style: Rectangular w/M30 Mount
- Primary Housing Material: Thermoplastic
- Lens Material: Zeonex
- NEMA / UL Type Rating: NEMA 4X
- IP Rating: IP69K
- Sensing Mode (General): Opposed
- Sensing Mode (Detailed): Receiver
- Max Sensing Distance: 213000 mm
- Outputs: Bipolar (NPN & PNP)
- Output response time: 5 ms
- Min Operating Temperature: -20 C
- Max Operating Temperature: 70 C
- Connection: Integral QD
- Quick Disconnect Type: M12
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
