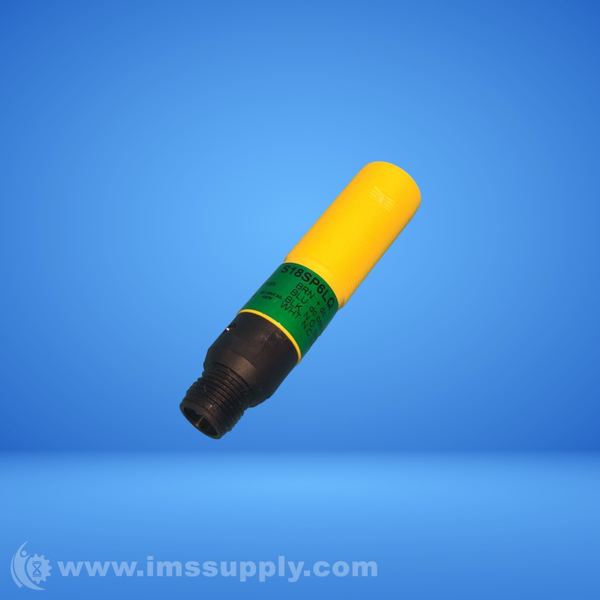

BANNER S18SP6LQ RETROREFLECTIVE PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: S18SP6LQ
IMS Product Code: 2038729
Packaging: Sold Individually
Description:
Banner S18SP6LQ Retroreflective Photoelectric Sensor
Retroreflective photoelectric sensor with 2m sensing range, 10-30V DC supply, PNP output, and M12 4-pin quick disconnect.
Specifications
- Supply Voltage: 10-30 V dc
- Sensing Mode: Retroreflective
- Output Type: PNP
- Connection Type: Integral QD

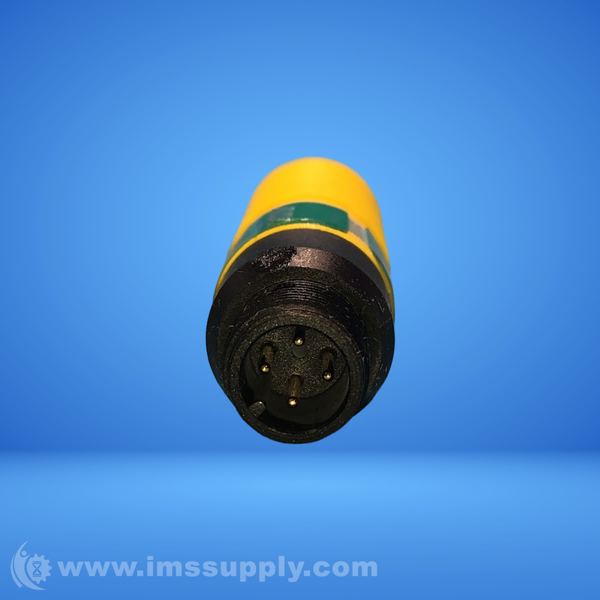

- Quick Disconnect Type: M12
- Max Sensing Distance: 2000 mm
- IP Rating: IP67, IP69K
- NEMA / UL Type Rating: NEMA 4X
- Min Op. Temp.: -40 degrees C
- Max Op. Temp.: 70 degrees C
- Output Response Time: 3 ms
- Delay at Power-up: 100 ms
- Repeatability: 750 microseconds
- Number of Pins: 4

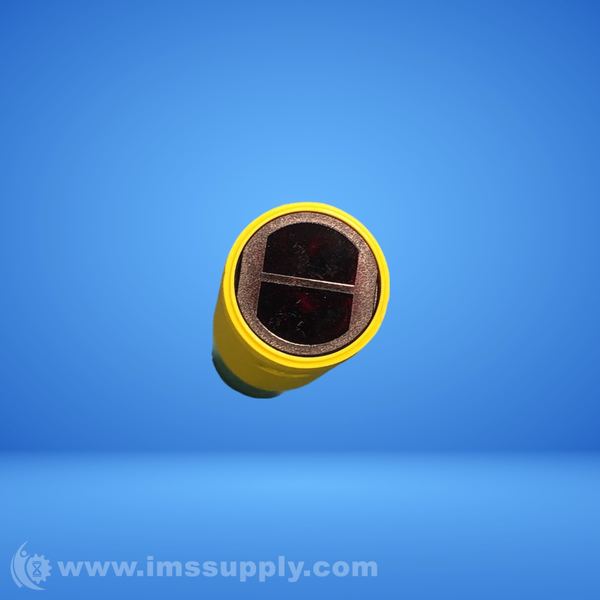

- Lens Material: Acrylic
- Barrel Diameter: 18 mm
- Housing Material: Thermoplastic
- Dimensions: 18 mm diameter x 60 mm long
- Weight: 50 g
- Certifications: CE, UL
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships on Monday, November 3, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Open Box (Special):

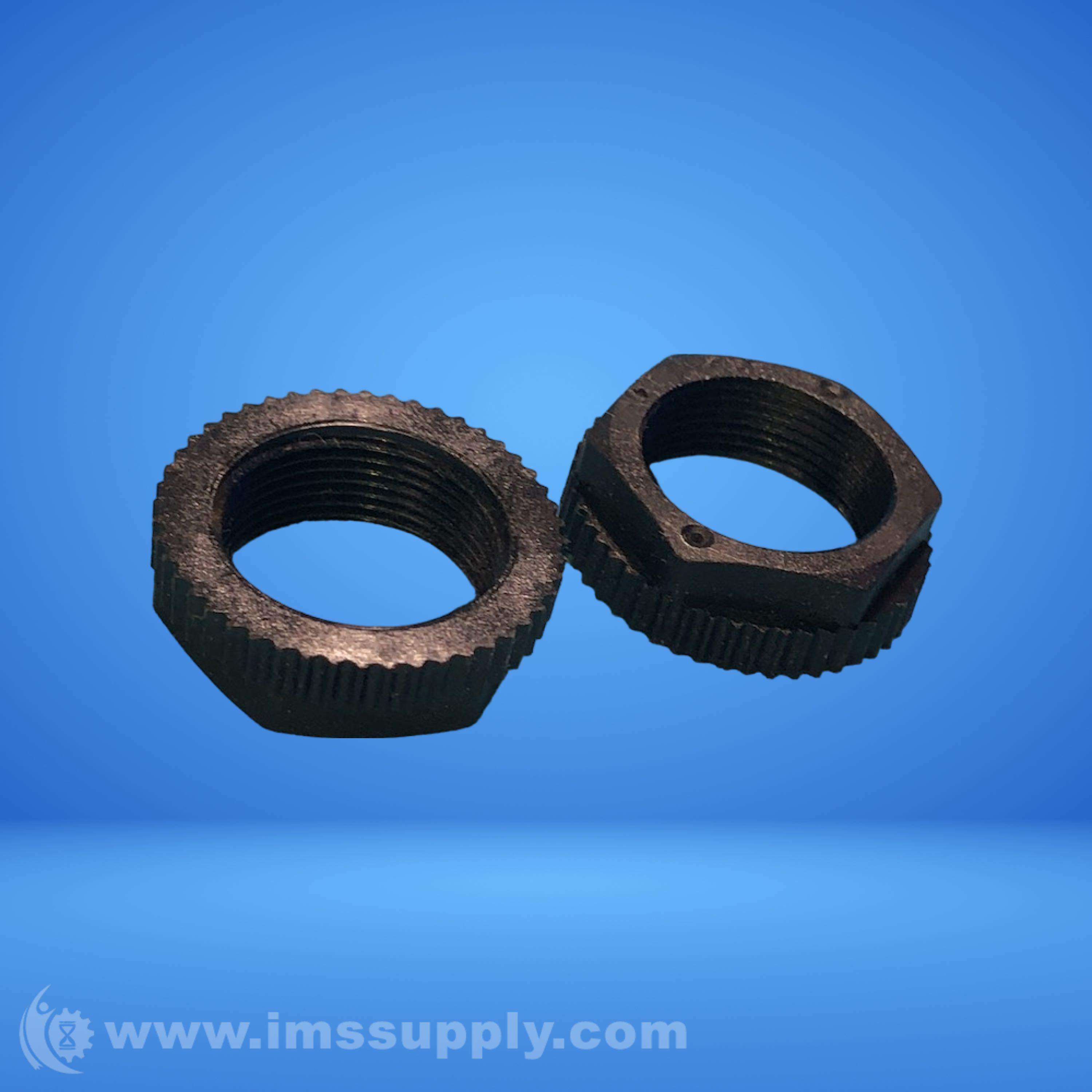

Part is missing hardware.
