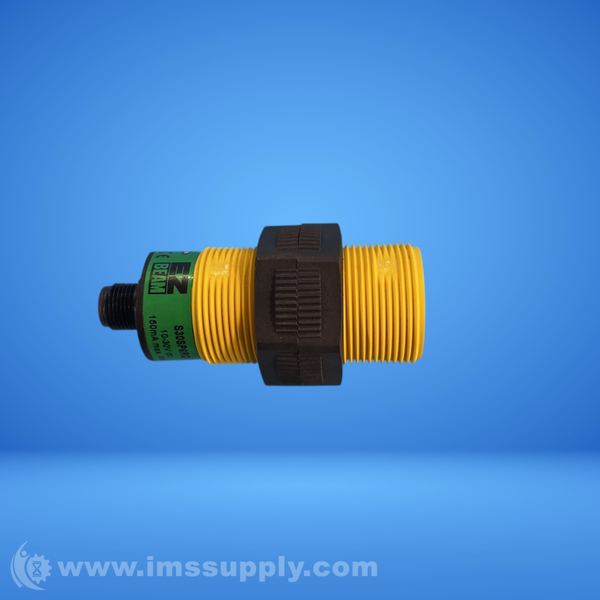

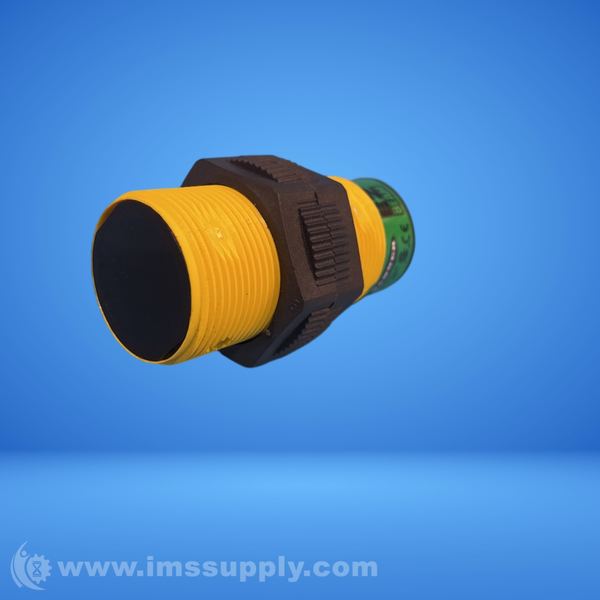

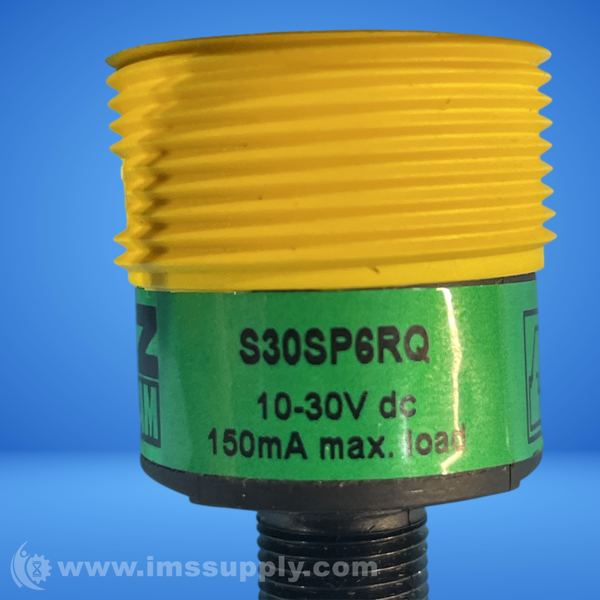

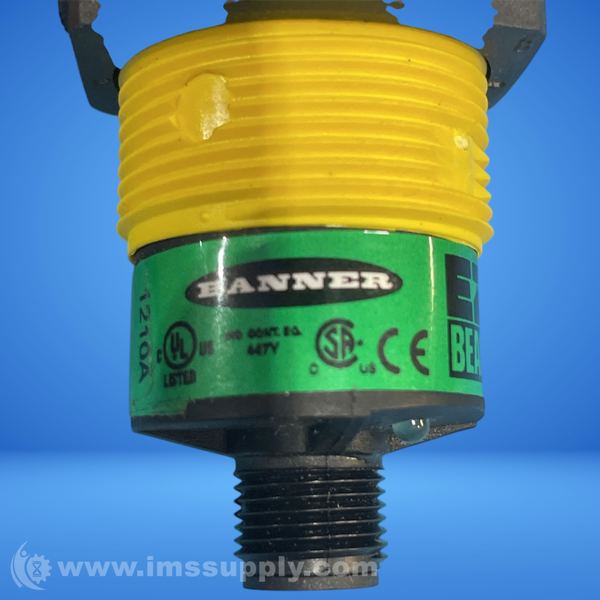

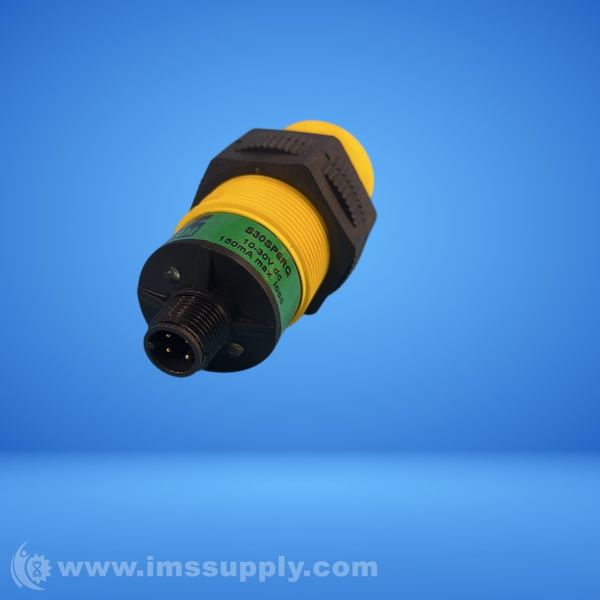

BANNER ENGINEERING CORP. S30SP6RQ OPPOSED MODE RECEIVER
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: S30SP6RQ
IMS Product Code: 2162636
Packaging: Sold Individually
Description:
Banner Engineering Corp. S30SP6RQ Opposed Mode Receiver
Opposed mode photoelectric sensor receiver with 4-pin M12 integral quick disconnect, 10-30V DC supply, and complementary PNP output.
Specifications
- Supply Voltage: 10-30 V dc
- Output Type: Complementary PNP
- Sensing Mode: Opposed
- Connection: 4-pin M12 Integral QD
- Sensing Beam: Infrared LED
- Range: 60 m
- IP Rating: IP69K
- NEMA / UL Type Rating: NEMA 4X
- Primary Housing Material: Thermoplastic
- Lens Material: Acrylic
- Barrel Diameter: 30 mm
- Min Op. Temperature: -40 C
- Max Op. Temperature: 70 C
- Output Response Time: 3 ON/1.5 OFF ms
- Delay at Power-up: 100 ms
- Repeatability: 375 us
