BANNER SLM120B6Q RUGGED METAL SLOT SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: SLM120B6Q
IMS Product Code: 2161589
Packaging: Sold Individually
Description:
Banner SLM120B6Q Rugged Metal Slot Sensor
Rugged nickel-plated metal fixed-distance slot sensor with 120 mm slot width, 10-30 V dc input, and bipolar output.
Specifications
- Slot Width: 120 mm
- Input: 10-30 V dc
- Output: Bipolar: 1 NPN; 1 PNP
- Connection: 4-pin M8 Integral QD
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA 4X
- Sensing Mode: Emitter/Receiver Pair
- Housing Style: Slot
- Primary Housing Material: Zinc Die-Cast with Nickel-Plating
- Max Sensing Range: 120 mm
- Slot Depth: 120.7 mm
- Minimum Object Detection: 0.9 mm
- Output Response Time: 0.5 ms
- Repeatability: 95 �s
- Adjustments: Potentiometer
- Lens Material: Acrylic
- Operating Temperature: -20 to 60 �C
- Max Op. Relative Humidity: 95% @ 55�C

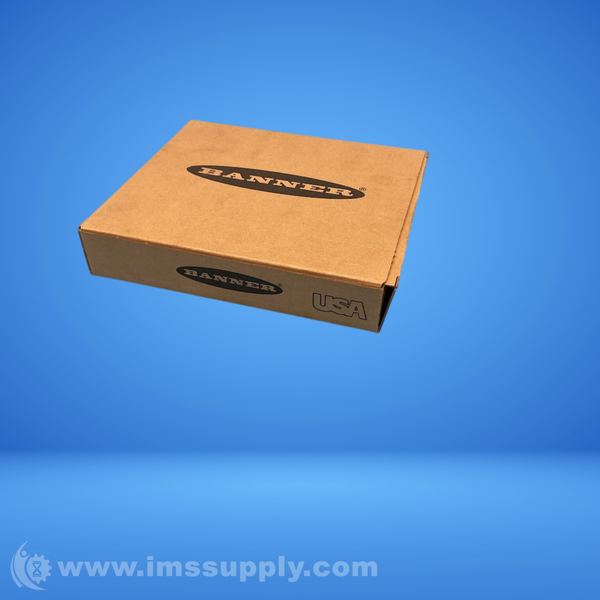

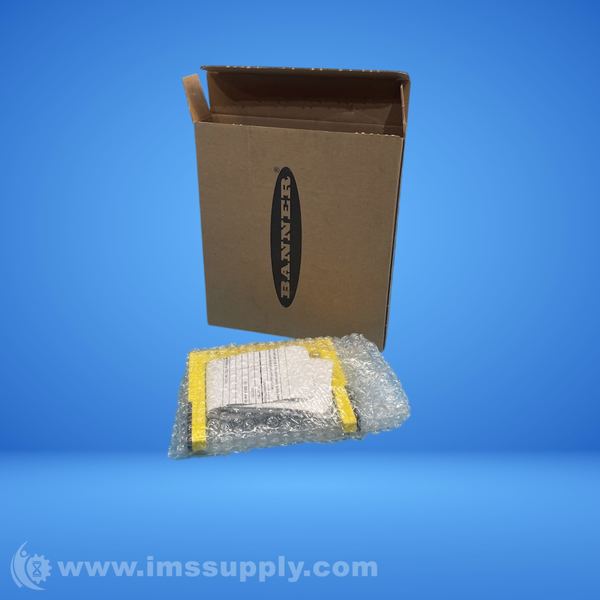

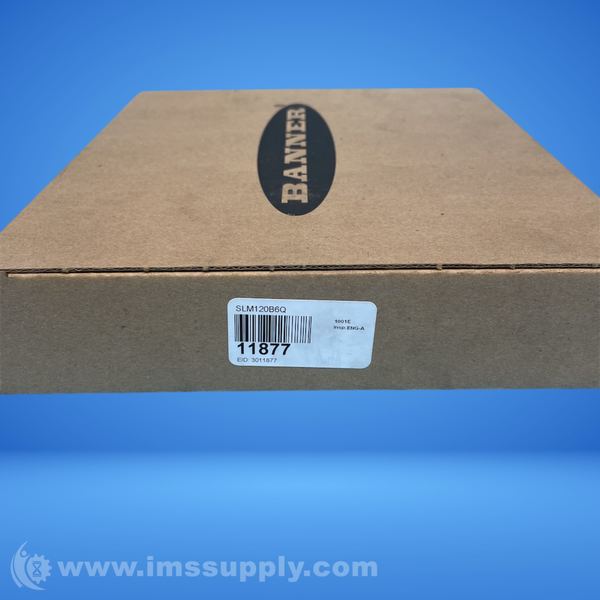

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
