BANNER ENGINEERING CORP. SLSE14-1050Q8 EMITTER
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: SLSE14-1050Q8
IMS Product Code: 2136020
Packaging: Sold Individually
Description:

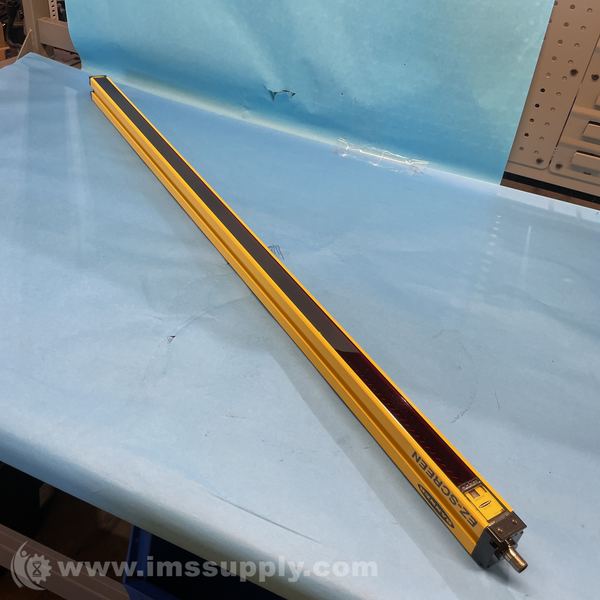

Banner Engineering Corp. SLSE14-1050Q8 Emitter
EZ-SCREEN Emitter with 1050 mm defined area height, 14 mm resolution, and 0.1-6 m operating distance
Specifications
- Defined Area Height: 1050 mm
- Resolution: 14 mm
- Operating Distance: 0.1-6 m
- Supply Voltage: 24 V DC
- Response Time: 36 ms
- IP Rating: IP65
- Primary Housing Material: Aluminum
- Safety Level: Type 4
- PL Rating: Ple
- SIL Rating: SIL3; CL3
- Electrical Safety Class: III
- Dimensions WxD: 36 x 45.2 mm
- Overall Length: 1120 mm
- Operating Temperature: 0 to 55 degrees C
- Shock: 10g at 16ms
- Vibration: 10-55 Hz at 0.35 mm
- Supply Current: 100 mA max.
