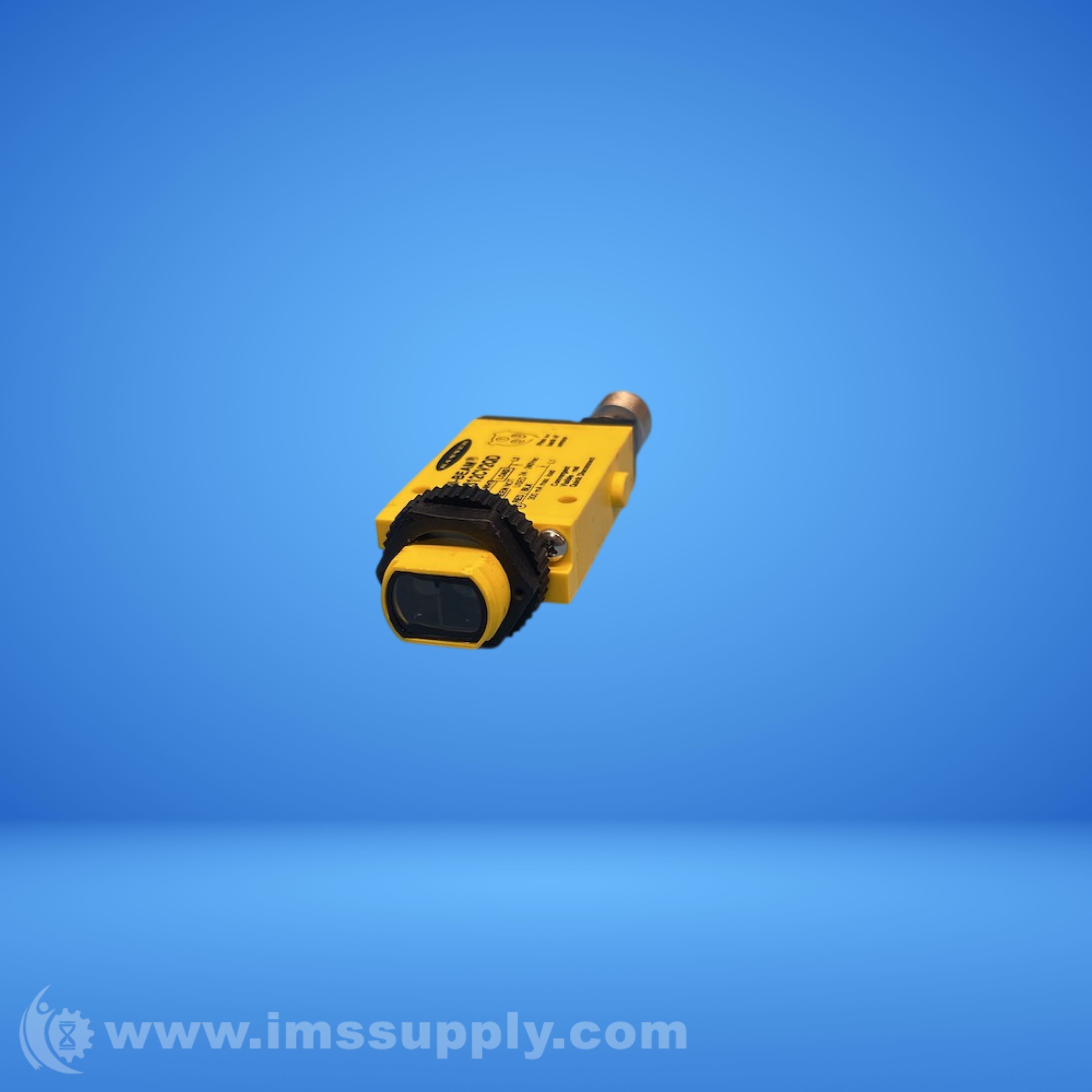

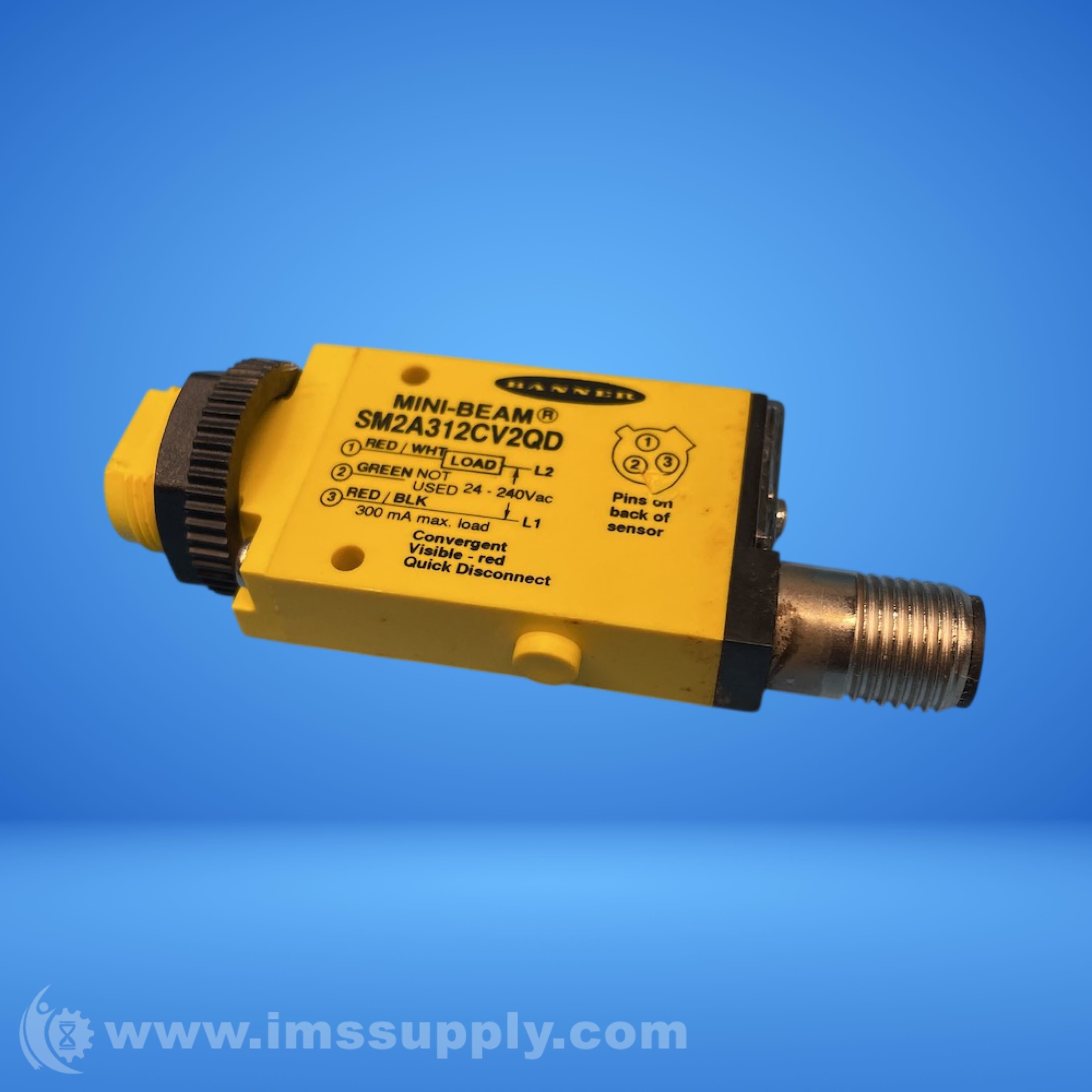

BANNER SM2A312CV2QD VISIBLE RED 650 NM CONVERGENT
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: SM2A312CV2QD
IMS Product Code: 2157058
Packaging: Sold Individually
Description:
Banner SM2A312CV2QD Visible Red 650 nm Convergent
Focal Point: 43 mm; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 3-pin Micro Integral QD
Specifications
- Power: AC
- Sensing Beam: Visible Red LED
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA 4X
- Supply Voltage: 24-240 V ac
- Pin / Wire Count: 3
- Sensing Mode (General): Proximity
- Sensing Mode (Detailed): Convergent
- Housing Style: Rectangular w/M18 Mount
- Primary Housing Material: Thermoplastic
- Input/Output: Solid-State AC Switch
- Max Sensing Distance (mm): 43
- Outputs: Solid-State AC Switch

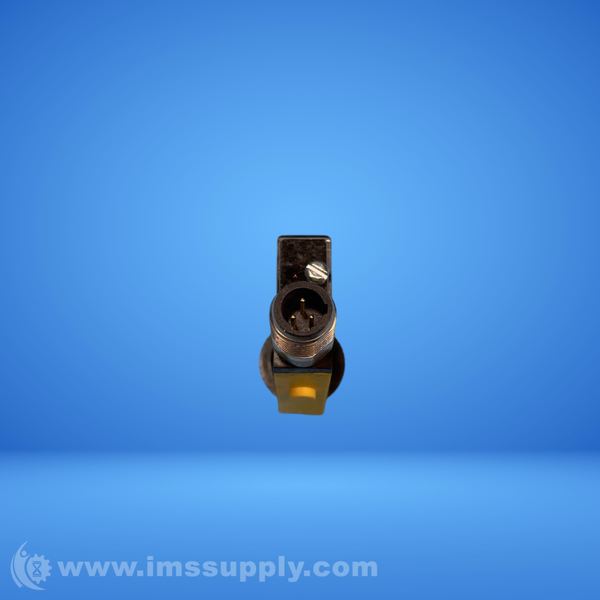

- Connection: Integral QD
- Quick Disconnect Type: 1/2 in. (Micro)
- Operation: Light/Dark Operate
- Min Op. Temperature (C): -20
- Max Op. Temp. (C): 70
- Output response time (ms): 4
- Sensing Beam Wavelength: 650
- Delay at Power-up (ms): 300
- Repeatability (µs): 1300
- Number of Pins: 3
- Max Op. Relative Humidity [%]: 90% @ 50°C
- Lens Material: Acrylic
- Adjustments: Potentiometer
- Barrel Diameter (mm): 18
- Indicator: LEDs
- Feature: Encapsulated: Yes
- Feature: Quick Disconnect: Yes
- Series: SM2A
New - Missing Box (Special):

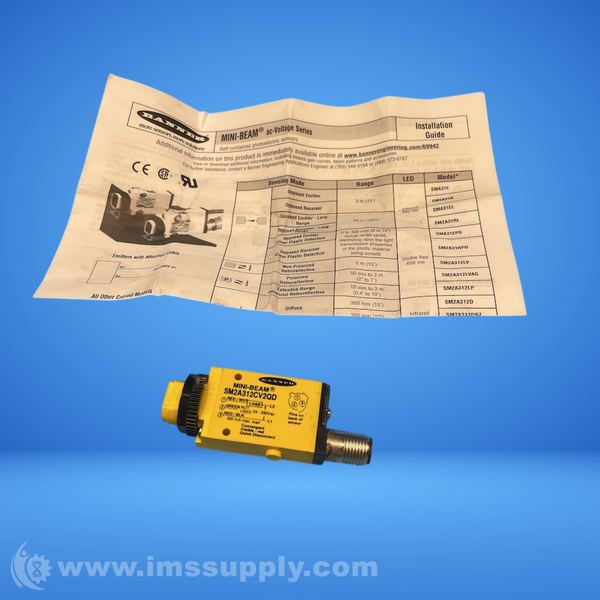

Part comes with installation guide.
