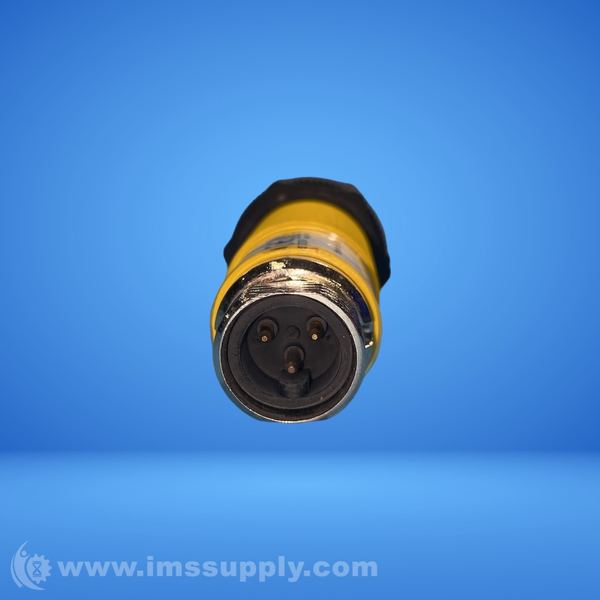

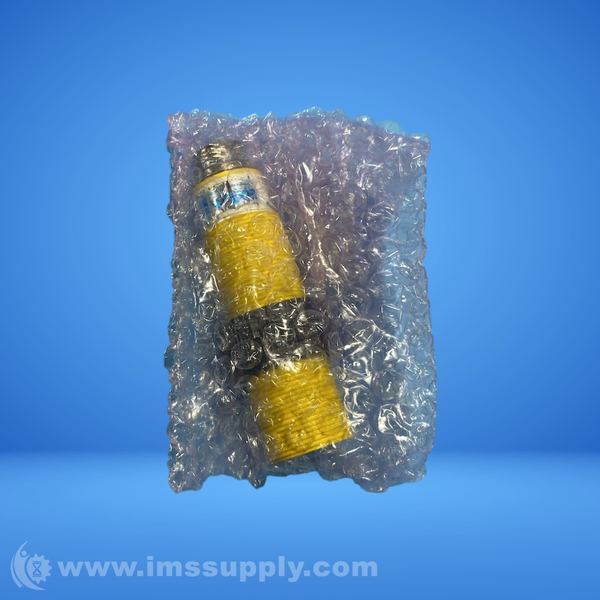

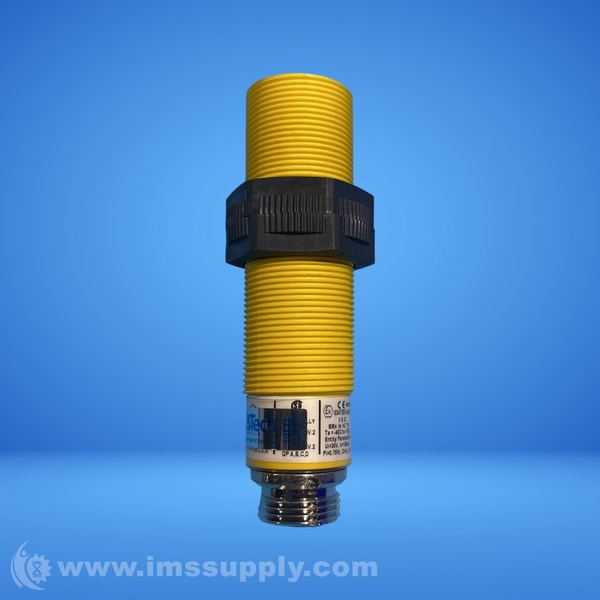

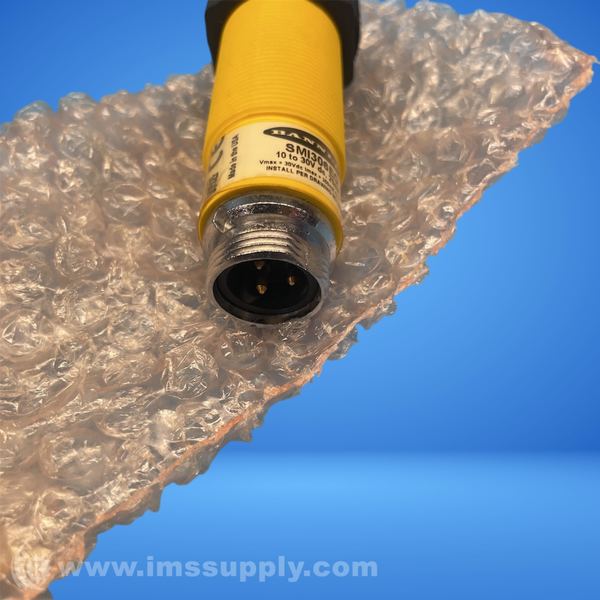

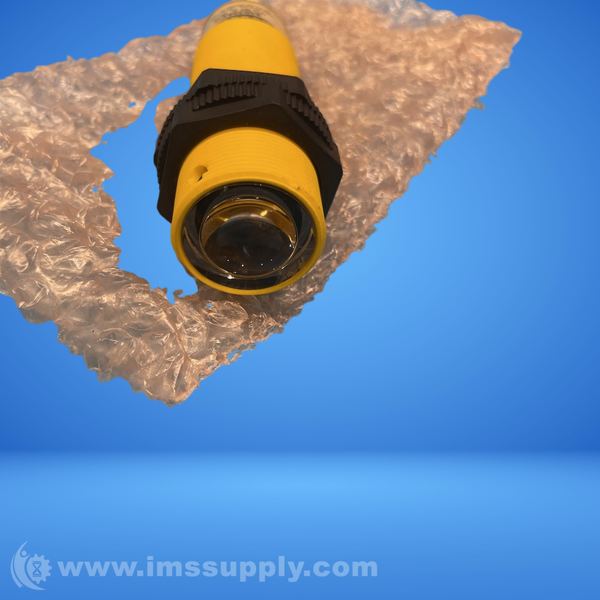

BANNER SMI306EQ BARREL SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: SMI306EQ
IMS Product Code: 2052448
Packaging: Sold Individually
Description:
Banner SMI306EQ Barrel Sensor
Intrinsically Safe Barrel Sensor
Specifications
- Supply Voltage: 10-30 V dc
- Sensing Beam: Infrared LED
- Max Sensing Distance (mm): 106680
- Housing Style: Barrel
- Barrel Diameter (mm): 30
- Primary Housing Material: Thermoplastic
- Lens Material: Acrylic
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA 4X
- Min Op. Temperature (C): -40
- Max Op. Temp. (C): 70
- Max Op. Relative Humidity [%]: 90% @ 50�C
- Output response time (ms): 10
- Repeatability (�s): 1000
- Connection: Integral QD
- Quick Disconnect Type: 7/8 in. (Mini)
- Number of Pins: 3
- Indicator: LEDs
- Sensing Mode (General): Opposed
- Sensing Mode (Detailed): Emitter
- Opposed Mode Emitter/Receiver: Emitter
- Special Feature: Intrinsically Safe: Yes
- Feature: Encapsulated: Yes
- Feature: Hazardous Area: Yes
- Feature: Quick Disconnect: Yes
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
