BANNER TL50GYRQ 3-COLOR LED TOWER LIGHT
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: TL50GYRQ
IMS Product Code: 2035258
Packaging: Sold Individually
Description:

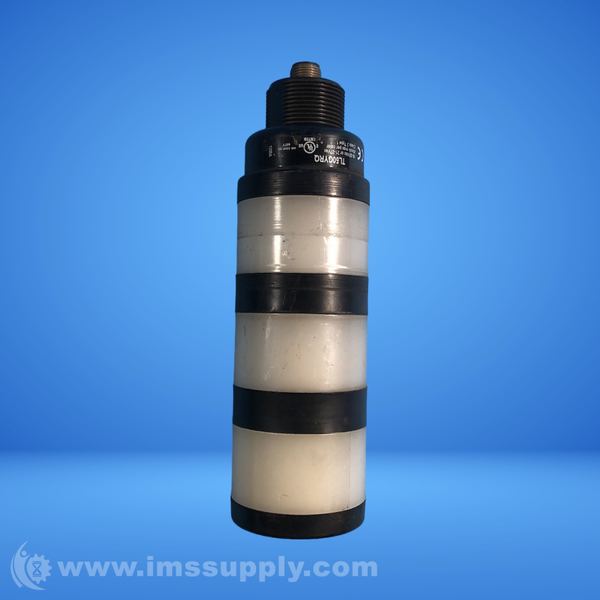

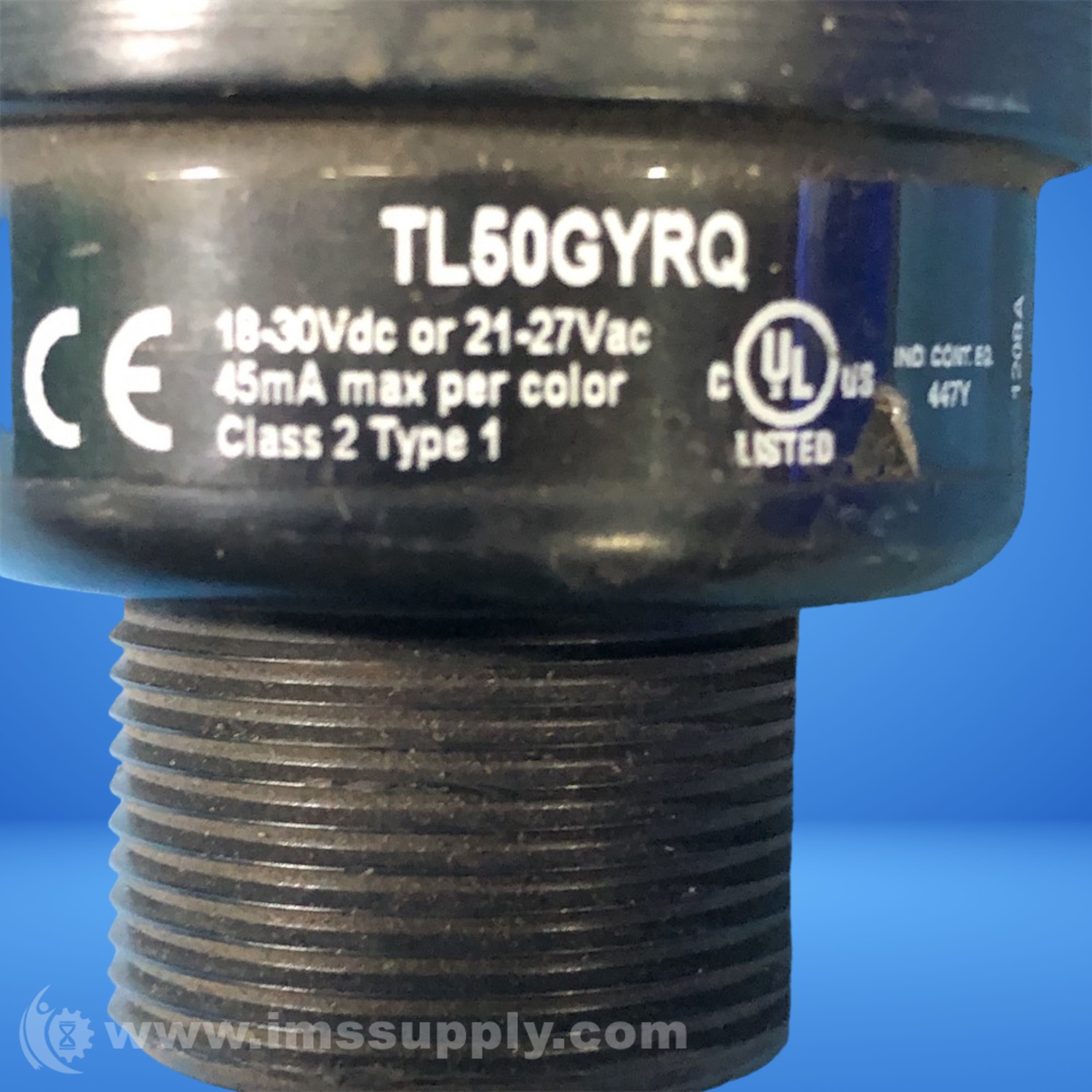

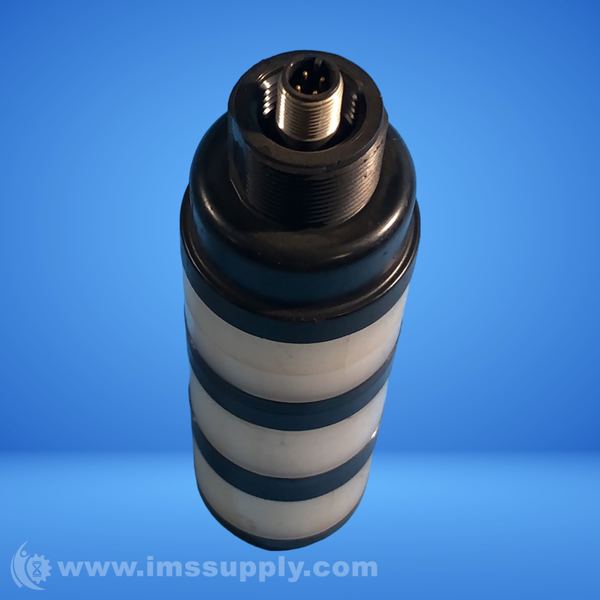

Banner TL50GYRQ 3-Color LED Tower Light
3-Color Indicator; Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP67; Input: Bimodal; Colors: Green Yellow Red; 4-pin M12 Integral QD
Specifications
- Power: DC or AC
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA and UL 13
- Supply Voltage: 18-30 V dc/24 V ac
- Housing Style: Base Mount - Tower
- Primary Housing Material: ABS
- Mounting Thread: M30 x 1.5
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Number of Colors: 3
- Color Technology: Standard LED
- Number of Tower Light Segments: 3
- Color Option 1: Green
- Animation Option 1: Solid On
- Color Option 2: Yellow
- Animation Option 2: Solid On
- Color Option 3: Red
- Animation Option 3: Solid On
- Connection: Integral QD
- Quick Disconnect Type: M12
- Max Current Color (mA): 45
- Number of Input Pins/Conductors: 4
- Input Type: Bimodal (PNP/NPN)
- Max Input Response Time (ms): 10
- Physical Dimensions (LxWxH or DxH mm): 50.0 x 169.9
- Environmental Rating: IP67
- Max Op. Relative Humidity Non-Condensing (%): 95% @ 50°C
- Min Op. Temperature (°C): -40
- Storage Temp (°C): -40 to 70
- Primary Housing Color: Black
- Primary Window Material: Polycarbonate Diffused
- Multi-Color Device: Simultaneous Colors On
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
Ships on Monday, October 6, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Parts comes screw cap.
Availability: 6 In Stock
Ships on Monday, October 6, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
