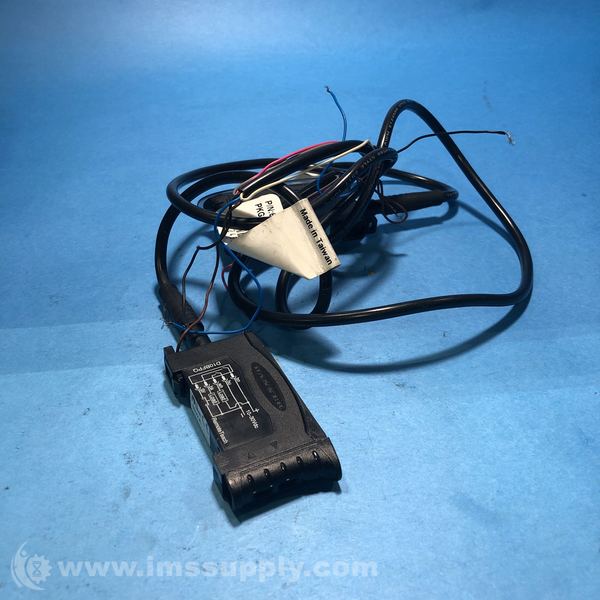

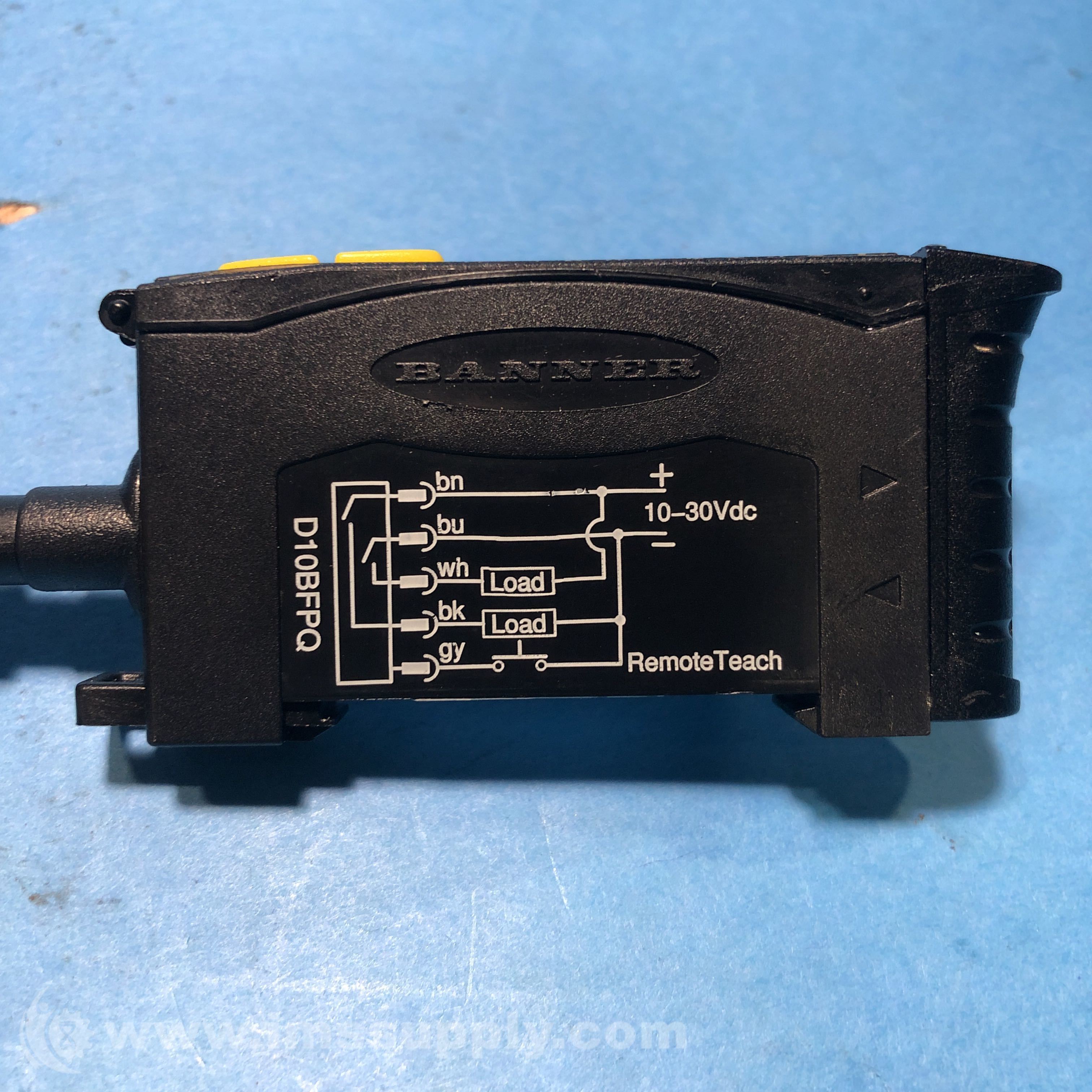

BANNER D10BFPQ FIBER OPTIC SENSOR
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: D10BFPQ
IMS Product Code: 1904782
Packaging: Sold Individually
Description:
Banner D10BFPQ Fiber Optic Sensor
Fiber optic sensor with plastic fiber optics, bipolar output, and remote teach functionality.
Specifications
- Power: DC
- IP Rating: IP50
- NEMA / UL Type Rating: NEMA 4X
- Housing Style: DIN Rail
- Primary Housing Material: Thermoplastic
- Input/Output: Discrete
- Output: Bipolar (NPN & PNP)
- Connection: Integral QD
- Quick Disconnect Type: M8
- Number of Pins: 6
- Power Supply/Supply Voltage: 10-30 V dc
- Delay at Power-up (ms): 200
- Indicator Display Type: Bargraph
- Minimum response time (ms): 0.2
- Repeatability (µs): 66 to 100
- Max Op. Temperature (C): 55
- Min Op. Temperature (C): -20
- Max Op. Relative Humidity (%): 90% @ 55°C
- Special Feature: Remote Teach: Yes
- Crosstalk Avoidance: Yes
- Feature: Timing (Hold/Delay): Yes
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 5 In Stock
Ships today if ordered in the next 14 hours and 28 minutes.
