BANNER PD49VP6C200Q CONVERGENT LASER SENSOR
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: PD49VP6C200Q
IMS Product Code: 1929831
Packaging: Sold Individually
Description:

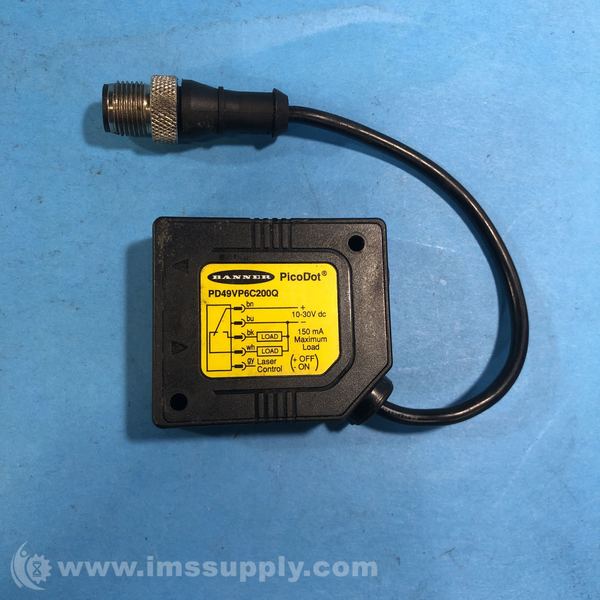

Banner PD49VP6C200Q Convergent Laser Sensor
Convergent laser sensor with visible red laser, 203 mm sensing distance, PNP output, 10-30 Vdc supply voltage, and IP67 rating.
Specifications
- Power: DC
- Sensing Beam: Visible Red Laser
- Cable Length: 0.15 m
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA 4X
- Supply Voltage: 10-30 V dc
- Sensing Mode: Proximity, Convergent
- Housing Style: Rectangular
- Primary Housing Material: Thermoplastic
- Laser Classification: Class 2
- Max Sensing Distance: 203 mm
- Outputs: PNP
- Connection: Pigtail QD, M12
- Operation: Light/Dark Operate
- Min Op. Temp.: -10 °C
- Max Op. Temp.: 45 °C
- Output Response Time: 0.2 ms
- Sensing Beam Wavelength: 650 nm
- Delay at Power-up: 1000 ms
- Repeatability: 50 µs
- Number of Pins: 5
- Max Op. Relative Humidity: 90% @ 50°C
- Lens Material: Acrylic
- Adjustments: Potentiometer
- Indicator: LEDs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 7 minutes.
