BANNER Q126EQ EMITTER SENSOR
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: Q126EQ
IMS Product Code: 1798286
Packaging: Sold Individually
Description:

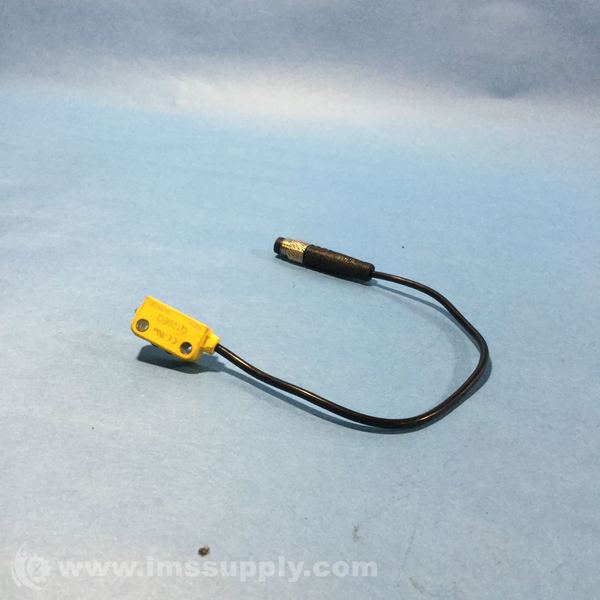

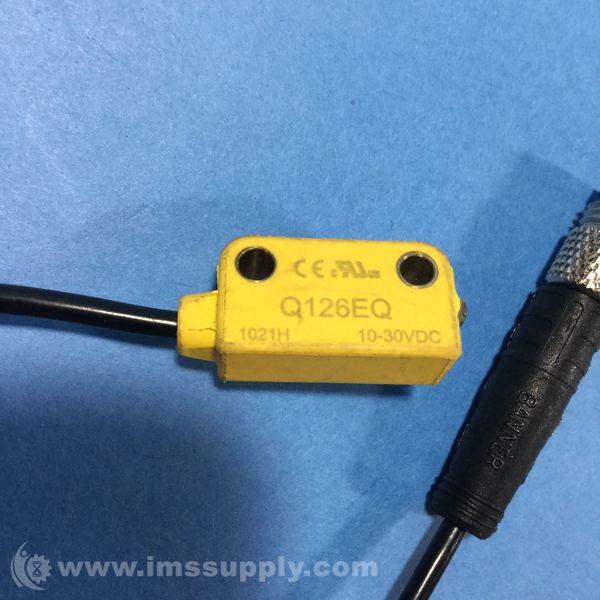

Banner Q126EQ Emitter Sensor
Miniature self-contained emitter sensor for opposed mode sensing. 10-30 VDC input, M8 pigtail quick disconnect, IP67 rated housing.
Specifications
- Power Supply: 10-30 VDC
- Sensing Mode: Opposed Mode Emitter
- Max Sensing Distance: 2000 mm
- Housing Style: Rectangular
- Primary Housing Material: Thermoplastic
- Lens Material: Polycarbonate
- Cable Length: 0.15 m
- Quick Disconnect Type: M8
- Operating Temperature: -20 to 55 degrees C
- Output Response Time: 1.3 ms ON / 0.9 ms OFF
- Repeatability: 175 µs
- Number of Pins: 4
- IP Rating: IP67
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 28 In Stock
Ships today if ordered in the next 14 hours and 28 minutes.
