BANNER Q146EQ PHOTOELECTRIC EMITTER
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: Q146EQ
IMS Product Code: 1844286
Packaging: Sold Individually
Description:

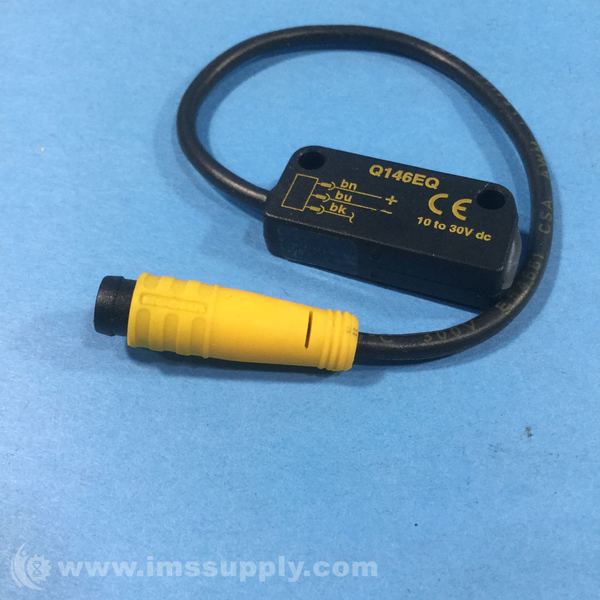

Banner Q146EQ Photoelectric Emitter
Rectangular photoelectric emitter with infrared LED, 10-30 V dc input, 1.8 m range, M8 pigtail QD connection.
Specifications
- Cable Length: 0.15 m
- Connection: Pigtail QD
- Housing Style: Rectangular
- Indicator: LEDs
- Input: 10-30 V dc
- IP Rating: IP54
- Lens Material: Glass
- Max Op. Temp.: 55 C
- Max Sensing Distance: 1800 mm
- Min Op. Temperature: -20 C
- NEMA / UL Type Rating: NEMA 4X
- Number of Pins: 3
- Output Response Time: 8 ON/4 OFF ms
- Power: DC
- Primary Housing Material: Thermoplastic
- Quick Disconnect Type: M8
- Range: 1.8 m
- Repeatability: 1000 us
- Sensing Beam: Infrared LED
- Sensing Beam Wavelength: 880
- Sensing Mode: Opposed
- Supply Voltage: 10-30 V dc
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 35 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 35 minutes.
