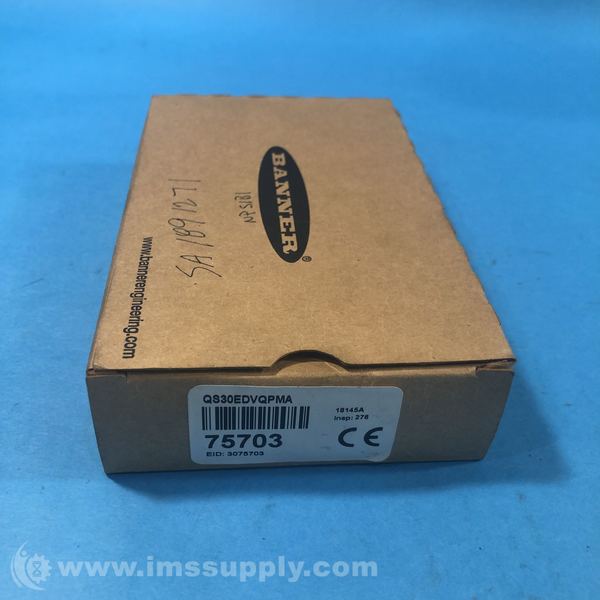

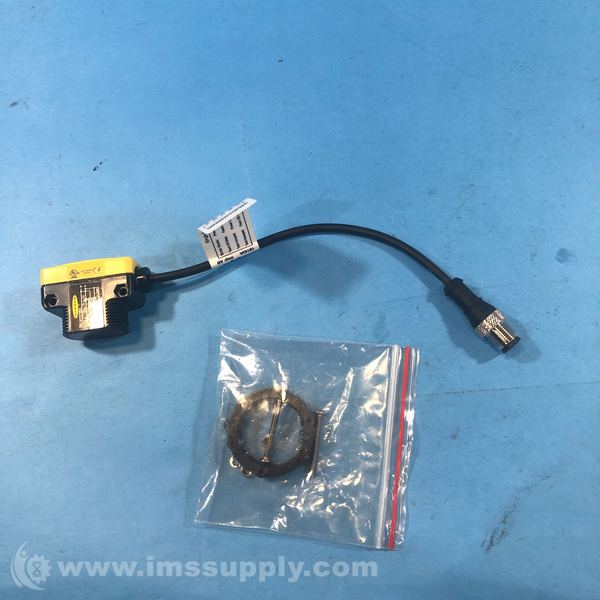

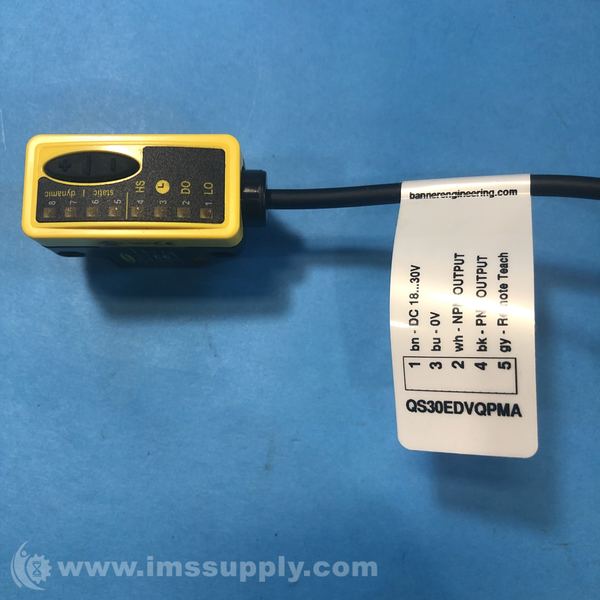

BANNER QS30EDVQPMA PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: QS30EDVQPMA
IMS Product Code: 1792369
Packaging: Sold Individually
Description:
Banner QS30EDVQPMA Photoelectric Sensor
Banner QS30EDVQPMA is a high-performance long-range photoelectric sensor with diffuse mode sensing, visible red LED beam, and bipolar NPN/PNP output. It operates on 10-30 V DC supply voltage and has a maximum sensing distance of 1400 mm.
Specifications
- Supply Voltage: 10-30 V dc
- Sensing Mode: Diffuse
- Max Sensing Distance: 1400 mm
- Output: Bipolar (NPN & PNP)
- Connection: Pigtail PUR QD
- Quick Disconnect Type: M12
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA 4X
- Primary Housing Material: Thermoplastic
- Lens Material: Acrylic
- Min Op. Temp.: -10 C
- Max Op. Temp.: 55 C
- Special Feature: Remote Teach
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 12 hours and 54 minutes.
