BANNER S30AW3FF200Q1 PROXIMITY SENSOR
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: S30AW3FF200Q1
IMS Product Code: 1749328
Packaging: Sold Individually
Description:

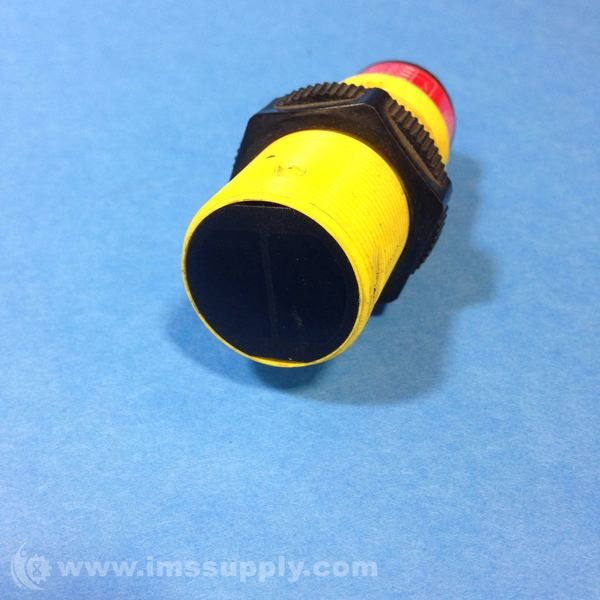

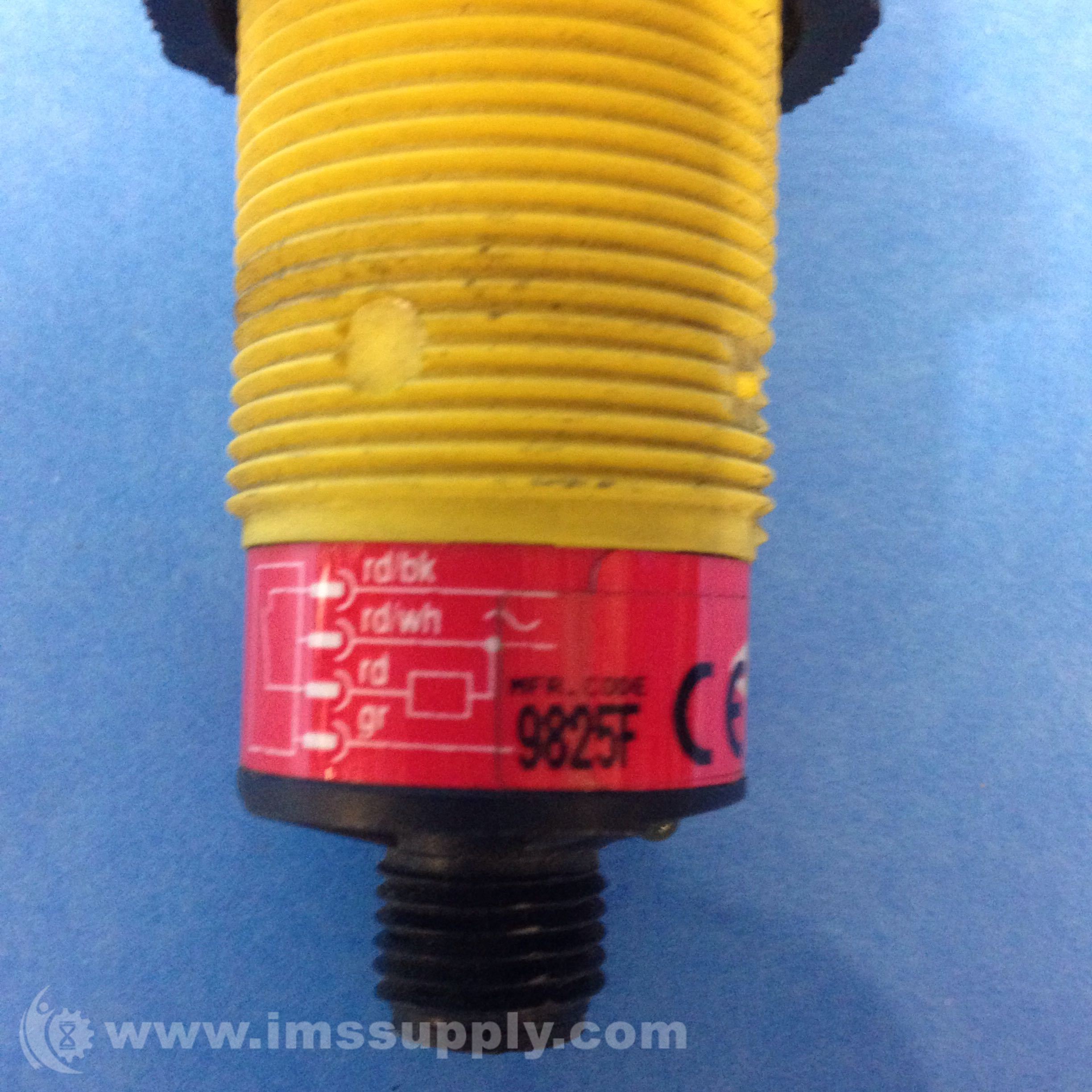

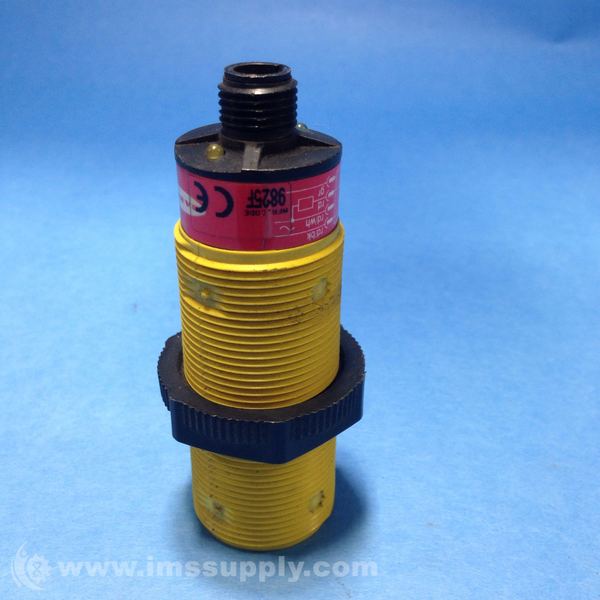

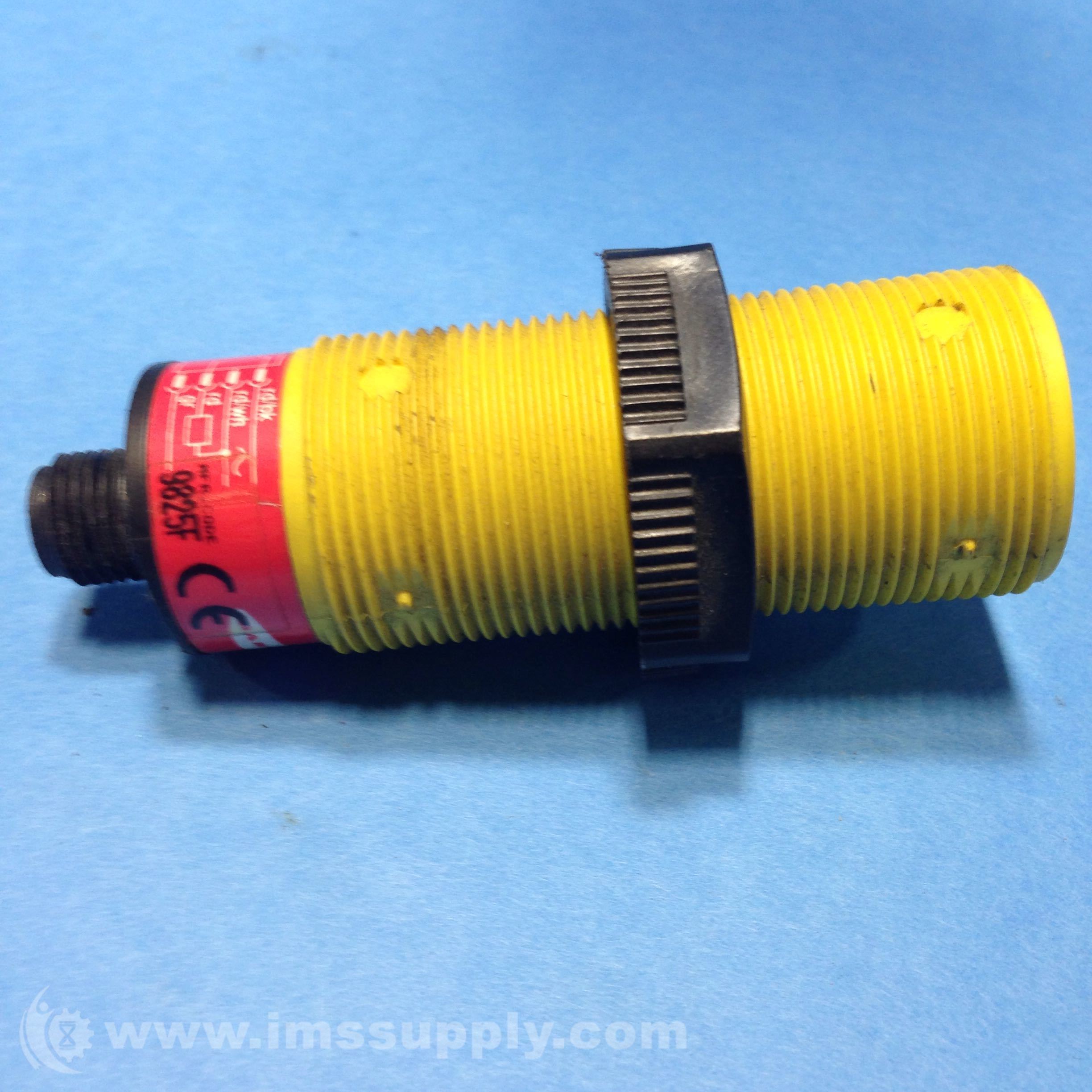

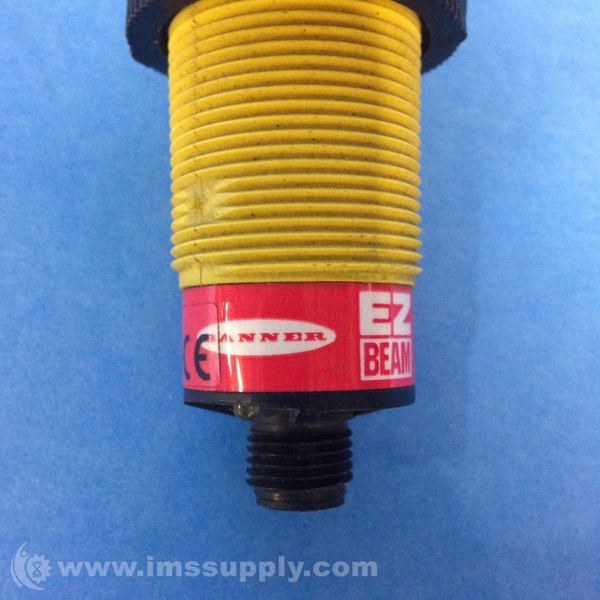

Banner S30AW3FF200Q1 Proximity Sensor
30mm Plastic Threaded Barrel Sensor with Background Suppression (Fixed), AC Power, Solid-State AC Switch Output, Integral QD Connection
Specifications

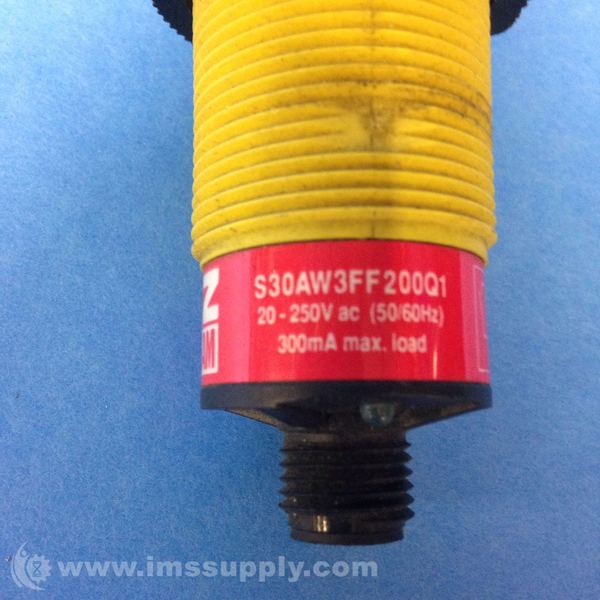

- Supply Voltage: 20-250 V ac
- Sensing Mode: Background Suppression (Fixed)
- Max Sensing Distance: 200 mm
- Output: Solid-State AC Switch
- Connection: Integral QD
- Operation: Light Operate
- IP Rating: IP69K
- NEMA / UL Type Rating: NEMA 4X
- Housing Style: Barrel
- Primary Housing Material: Thermoplastic
- Lens Material: Acrylic
- Indicator: LEDs
- Output response time: 16 ms
- Repeatability: 4000 µs

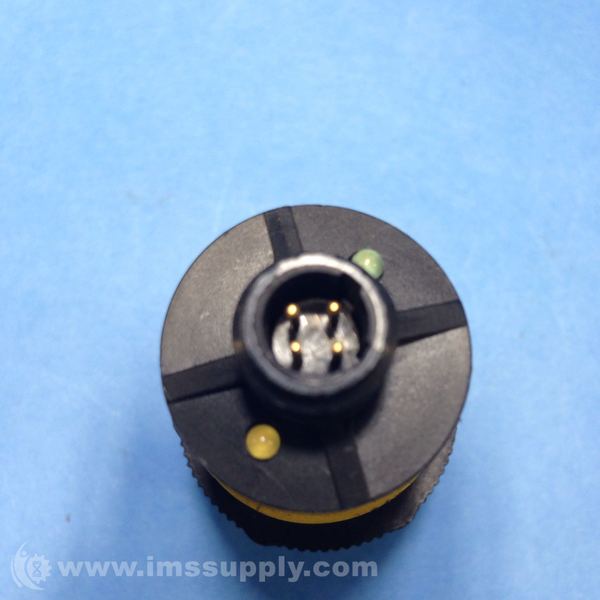

- Number of Pins: 4
- Quick Disconnect Type: 1/2 in. (Micro)
- Min Op. Temp.: -40 °C
- Max Op. Temp.: 70 °C
- Max Op. Relative Humidity: 90% @ 50°C
- Delay at Power-up: 100 ms
- Feature: Washdown Rated
- Feature: Ecolab Certified
- Feature: Encapsulated
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 40 minutes.
