BANNER SM312FQD FIBER OPTIC AMPLIFIER
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: SM312FQD
IMS Product Code: 1778666
Packaging: Sold Individually
Description:

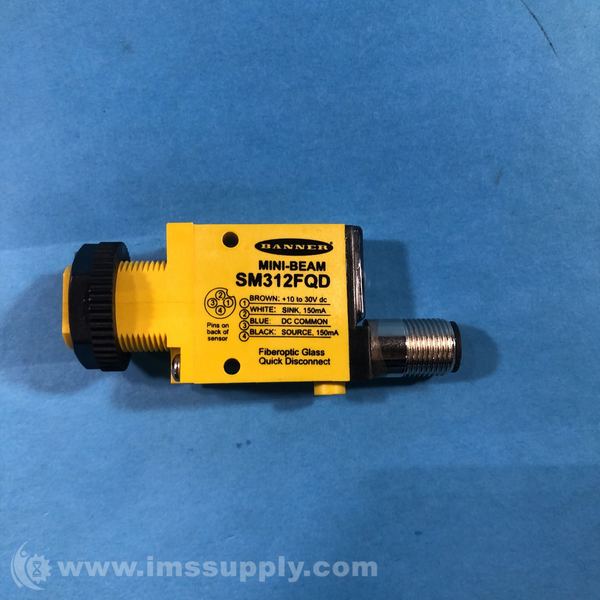

Banner SM312FQD Fiber Optic Amplifier
Infrared 880 nm glass fiber optic amplifier with bipolar NPN/PNP output and 10-30 VDC supply voltage. Features a 4-pin M12 quick-disconnect connector and thermoplastic housing.
Specifications
- Supply Voltage: 10-30 VDC
- Output Type: Bipolar NPN/PNP
- Fiber Type: Glass Fiber
- Wavelength: 880 NM
- Light Source: Infrared LED
- Sensing Range: Depends on fiber

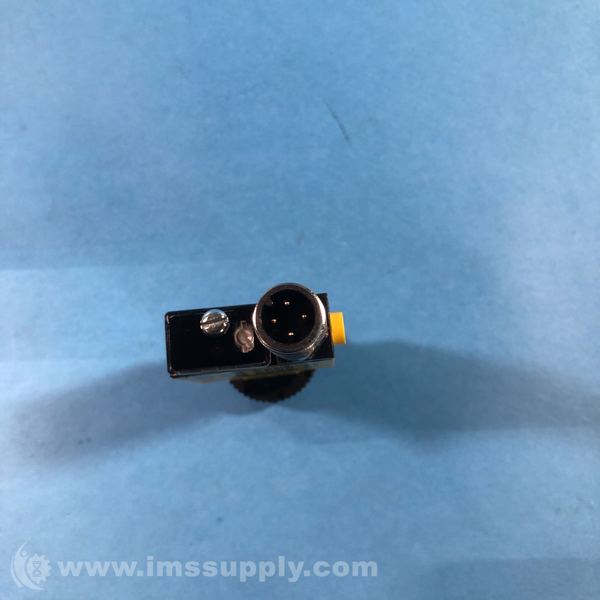

- Connection: 4-pin M12 Integral QD
- Housing Material: Thermoplastic
- IP Rating: IP67
- NEMA Rating: NEMA 4X
- Operating Temperature: -20 to 70 degrees C
- Relative Humidity: 90% @ 50 degrees C
- Repeatability: 300 µs
- Minimum Response Time: 1 ms
- Delay at Power-up: 100 ms
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 2 hours and 1 minutes.
Used (Special):
Has Attached Cables
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 1 minutes.
