BANNER SM31EPD CLEAR PLASTIC DETECTION EMITTER
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: SM31EPD
IMS Product Code: 1820437
Packaging: Sold Individually
Description:

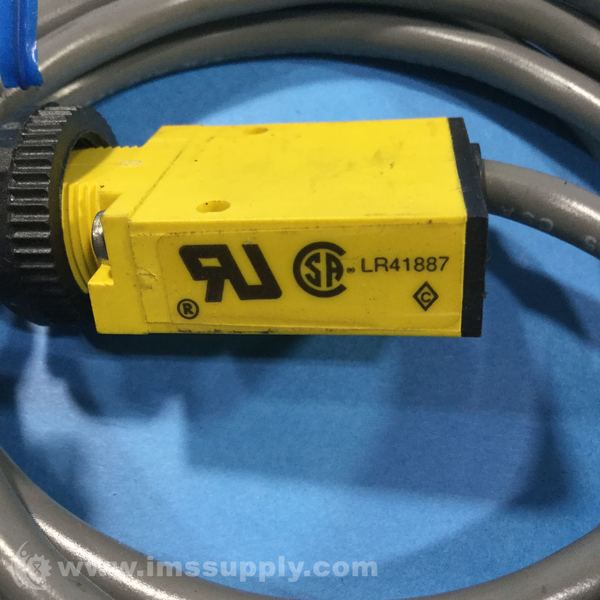

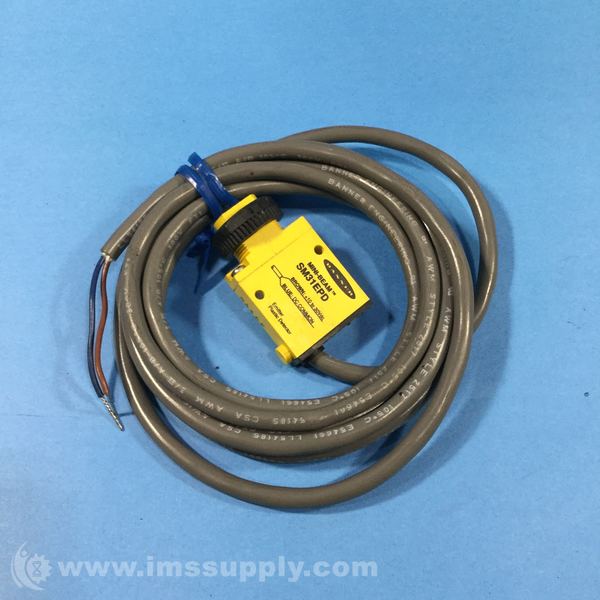

Banner SM31EPD Clear Plastic Detection Emitter
Photoelectric sensor emitter for clear plastic detection with 0-0.3m range, 10-30V DC input, and 2m cable.
Specifications
- Power: DC
- Sensing Beam: Visible Red LED
- Cable Length: 2 m
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA 4X
- Supply Voltage: 10-30 V dc
- Sensing Mode: Emitter
- Housing Style: Rectangular w/M18 Mount
- Primary Housing Material: Thermoplastic
- Max Sensing Distance: 300 mm
- Connection: Cable
- Min Op. Temperature: -20 C
- Max Op. Temp.: 70 C
- Sensing Beam Wavelength: 650
- Repeatability: 140 µs
- Number of Pins: 2
- Max Op. Relative Humidity: 90% @ 50°C
- Lens Material: Acrylic
- Barrel Diameter: 18 mm
- Indicator: LEDs
- Encapsulated: Yes
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 3 minutes.
