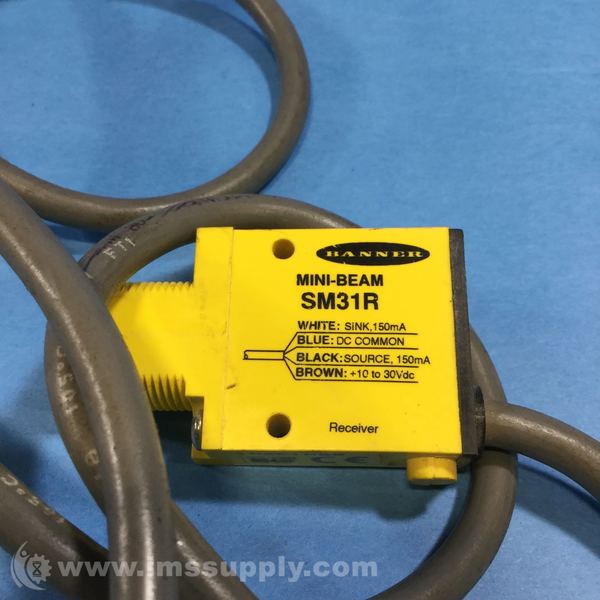

BANNER SM31R PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: SM31R
IMS Product Code: 1801863
Packaging: Sold Individually
Description:
Banner SM31R Photoelectric Sensor
Photoelectric sensor with bipolar NPN/PNP output, 10-30V DC supply, 3m sensing distance, IP67 rating, and 2m cable connection
Specifications
- Power: DC
- Sensing Beam: Infrared LED
- Cable Length: 2 m
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA 4X
- Supply Voltage: 10-30 V dc
- Sensing Mode: Opposed Mode Receiver
- Housing Style: Rectangular w/M18 Mount
- Primary Housing Material: Thermoplastic
- Input/Output: Discrete
- Max Sensing Distance: 3000 mm
- Outputs: Bipolar (NPN & PNP)
- Connection: Cable
- Min Op. Temperature: -20 C
- Max Op. Temperature: 70 C
- Output Response Time: 1 ms
- Delay at Power-up: 100 ms
- Repeatability: 140 us
- Number of Pins: 4
- Max Op. Relative Humidity: 90% @ 50C
- Lens Material: Acrylic
- Adjustments: Potentiometer
- Indicator: LEDs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 4 In Stock
Ships today if ordered in the next 14 hours and 5 minutes.
