BANNER SMI30AN6RQ PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: SMI30AN6RQ
IMS Product Code: 1868351
Packaging: Sold Individually
Description:

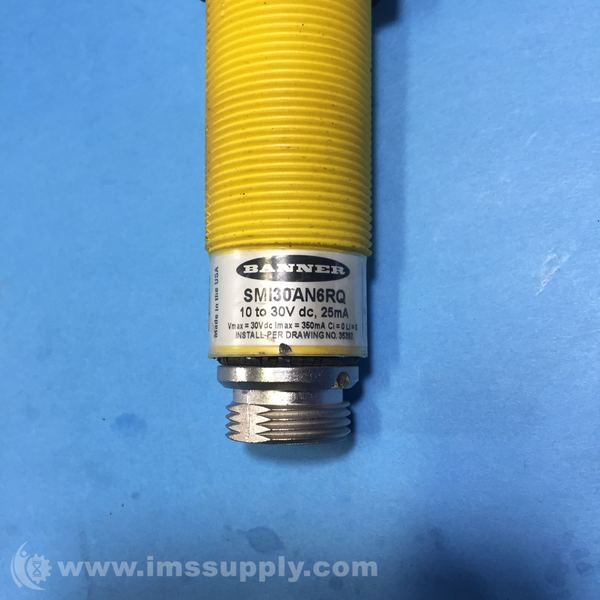

Banner SMI30AN6RQ Photoelectric Sensor
Intrinsically safe barrel sensor, receiver type, opposed mode, 10-30 V dc, NPN output, 3-pin mini integral QD.
Specifications
- Supply Voltage: 10-30 V dc
- Sensing Mode: Opposed
- Sensing Beam: Infrared LED
- Output: NPN

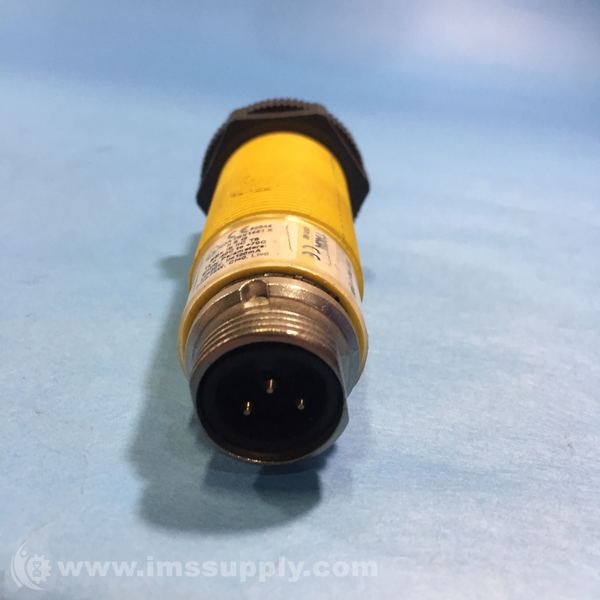

- Connection: Integral QD
- Quick Disconnect Type: 7/8 in. (Mini)
- Operation: Light Operate
- Max Sensing Distance: 106680 mm
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA 4X
- Housing Style: Barrel
- Barrel Diameter: 30 mm
- Primary Housing Material: Thermoplastic

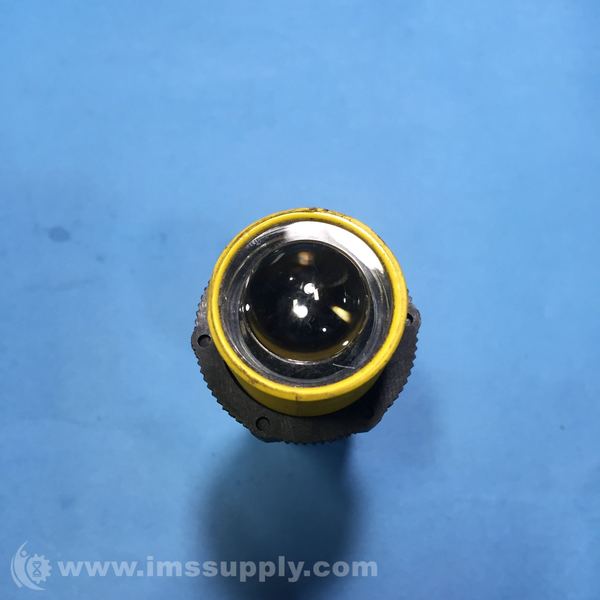

- Lens Material: Acrylic
- Min Op. Temperature: -40 C
- Max Op. Temp.: 70 C
- Output Response Time: 10 ms
- Repeatability: 1000 µs
- Intrinsically Safe: Yes
- Encapsulated: Yes
- Hazardous Area: Yes
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
