BANNER VS25EV PHOTOELECTRIC EMITTER
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: VS25EV
IMS Product Code: 1788783
Packaging: Sold Individually
Description:

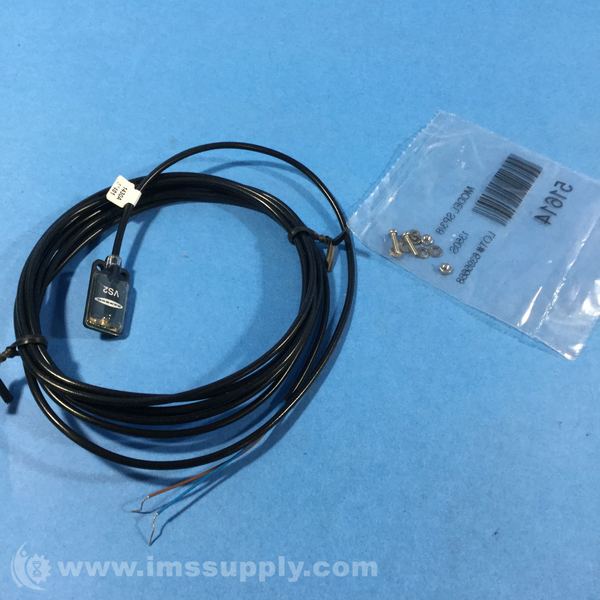

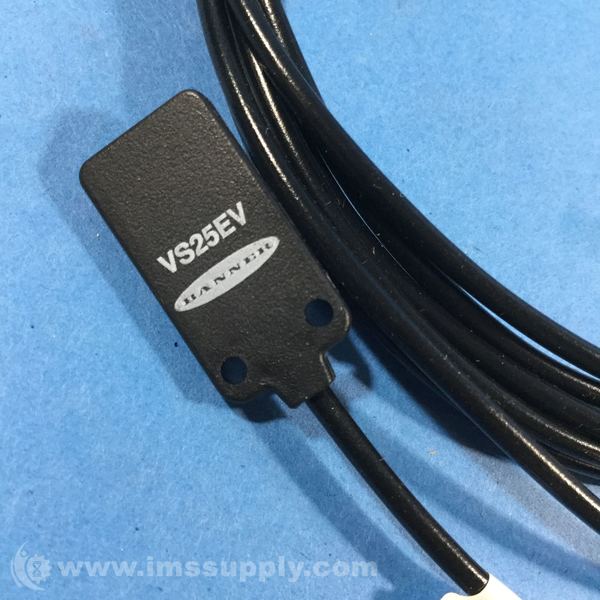

Banner VS25EV Photoelectric Emitter
Ultra-thin photoelectric emitter with 1.2m range and 12-24VDC input.
Specifications
- Cable Length: 2 m
- Connection: Cable
- Housing Style: Rectangular
- Indicator: LEDs
- Input: 12-24V dc
- IP Rating: IP67
- Lens Material: MABS
- Max Op. Temp.: 55 degrees C
- Max Sensing Distance: 1200 mm
- Min Op. Temp.: -20 degrees C
- NEMA / UL Type Rating: NEMA 4X
- Number of Pins: 2
- Opposed Mode Emitter/Receiver: Emitter
- Output response time: 1 ON/0.5 OFF ms
- Power: DC
- Primary Housing Material: Thermoplastic
- Range: 1.2 m max
- Repeatability: 100 µs
- Sensing Beam: Visible Red LED
- Sensing Beam Wavelength: 660
- Sensing Mode: Opposed
- Supply Voltage: 10-30 V dc
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
