BARKSDALE C9612-2 PRESSURE SWITCH
Quick Overview
Manufactured By: BARKSDALE
Manufacturer Part Number: C9612-2
IMS Product Code: 2162886
Packaging: Sold Individually
Description:

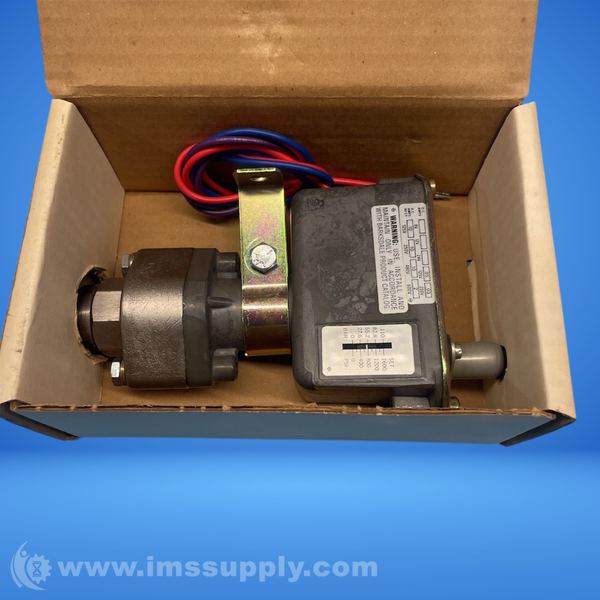

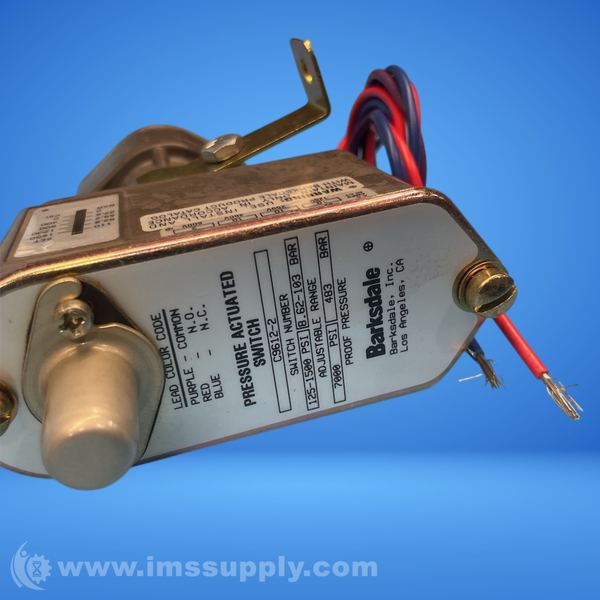

Barksdale C9612-2 Pressure Switch
Sealed piston pressure switch with SPDT snap action, 125-1500 PSI adjustable range, 1/4" NPT female connection.
Specifications
- Product Type: Pressure Switches
- Accuracy: � 2% of adjustable range
- Electrical Connectors: 18" free leads
- Pressure Connection: 1/4" - 18 NPT female
- Adjustable Range Decreasing: 125 (8.5) to 1360 (92.5) psi (bar)
- Adjustable Range Increasing: 135 (9.2) to 1500 (102.0) psi (bar)
- Switch Type: SPDT snap action Single Setpoint
- Rating: 10 amps @ 125/250/480 VAC; 0.03 amps @ 250 VDC
- Wetted Parts O-ring: Buna-N (standard)
- Process Fitting: Nickel plated aluminum
- Piston: 416 stainless steel
- Enclosure: Anodized aluminum
- Weight: 2.00 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
