BAUMER ELECTRIC IFRM 05P15A3/S05L INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: BAUMER ELECTRIC
Manufacturer Part Number: IFRM 05P15A3/S05L
IMS Product Code: 1838287
Packaging: Sold Individually
Description:

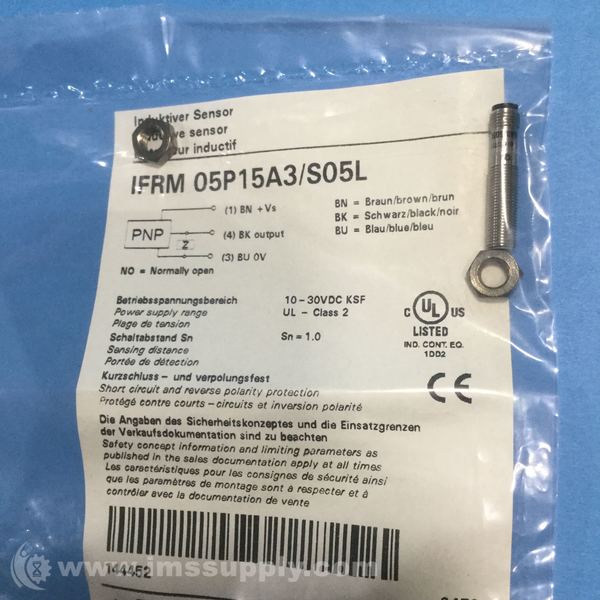

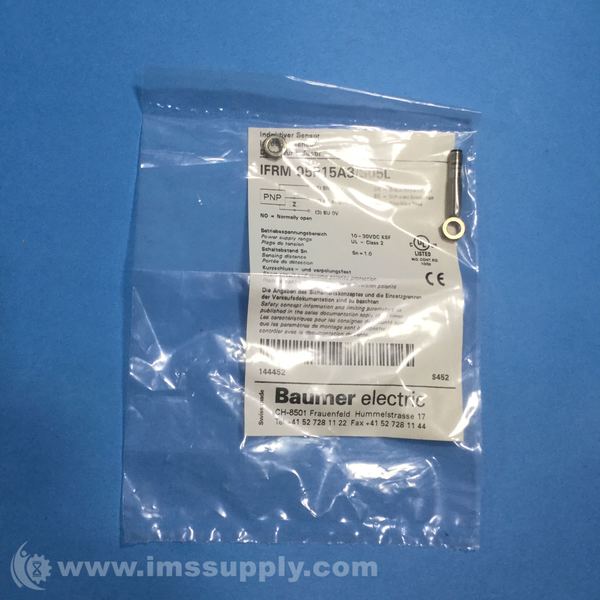

Baumer Electric IFRM 05P15A3/S05L Inductive Proximity Sensor
Cylindrical threaded inductive proximity sensor with 1 mm sensing distance, PNP NO output, M5 connector, IP67 protection.
Specifications
- Mounting Type: Flush
- Nominal Sensing Distance: 1 mm
- Output Type: PNP NO
- Supply Voltage: 10-30 VDC
- Hysteresis: 2-20% of Sr
- Switching Frequency: 5 kHz
- Current Consumption: 12 mA
- Output Current: 200 mA
- Short Circuit Protection: Yes
- Reverse Polarity Protection: Yes
- Housing Material: Stainless Steel
- Sensing Face Material: LCP
- Diameter: 5 mm
- Length: 24 mm
- Connection Type: M5 Connector
- Operating Temperature: -25 to +75 degrees C
- Protection Class: IP67
- Tightening Torque: 2 Nm
