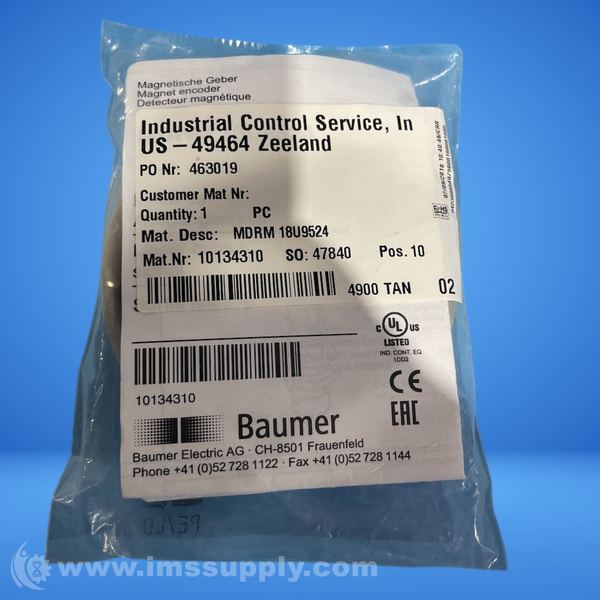

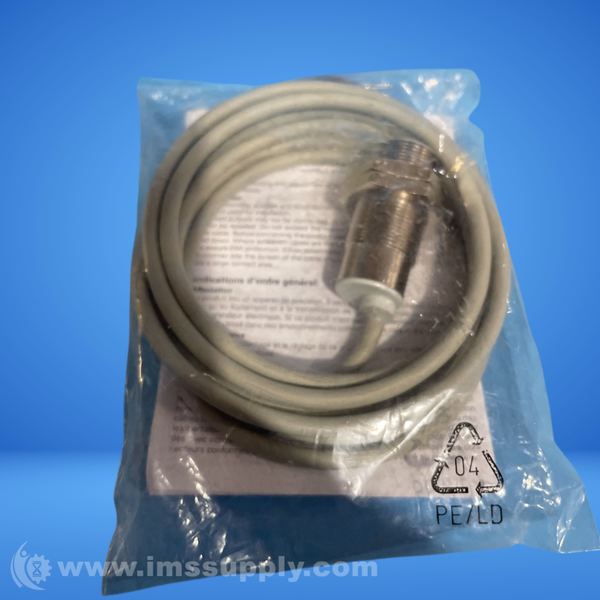

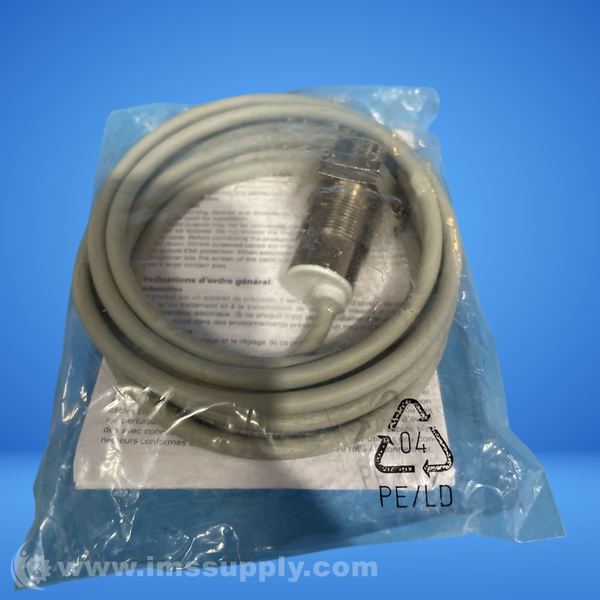

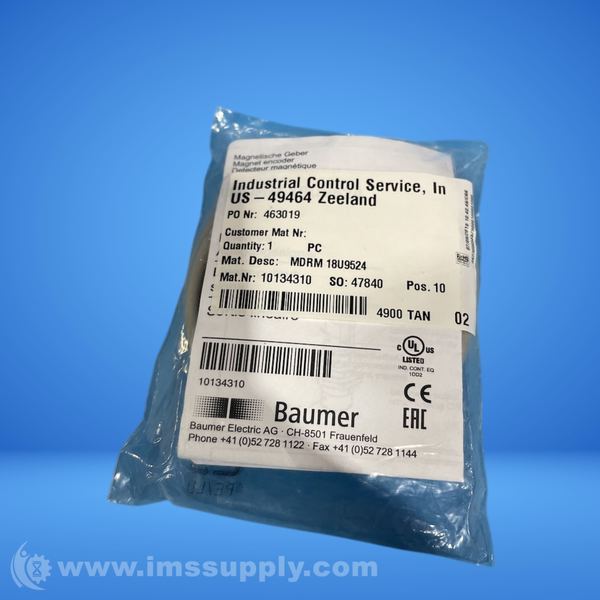

BAUMER ELECTRIC MDRM18U9524 MAGNETIC ANGLE SENSOR
Quick Overview
Manufactured By: BAUMER ELECTRIC
Manufacturer Part Number: MDRM18U9524
IMS Product Code: 2174673
Packaging: Sold Individually
Description:
Baumer Electric MDRM18U9524 Magnetic Angle Sensor
Magnetic angle sensor with voltage output, cylindrical threaded design, brass nickel plated housing
Specifications
- Angular range: 160 degrees linear
- Resolution: 0.09 degrees
- System accuracy: � 0.25 %
- Temperature drift: � 0.2 % (Full Scale)
- Working distance max.: 5 mm with magnet rotor MSFS
- Axial misalignment max.: 0.4 mm
- Voltage supply range +Vs: 12 � 28 VDC
- Current consumption max. (no load): 20 mA
- Output signal: 1 ... 9 VDC
- Load resistance: > 1000 Ohm
- Output circuit: Voltage output
- Short circuit protection: Yes
- Reverse polarity protection: Yes, Vs to GND
- Connection types: Cable PUR 3 x 0.25, 2 m
- Design: Cylindrical threaded
- Housing material: Brass nickel plated
- Dimension: 18 mm
- Material (sensing face): PBTP
- Operating temperature: -25 � +85 degrees C
- Protection class: IP 67
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
