Manufactured By: BECKHOFF
Manufacturer Part Number: CX1030-0120
IMS Product Code: 1736750
Packaging: Sold Individually

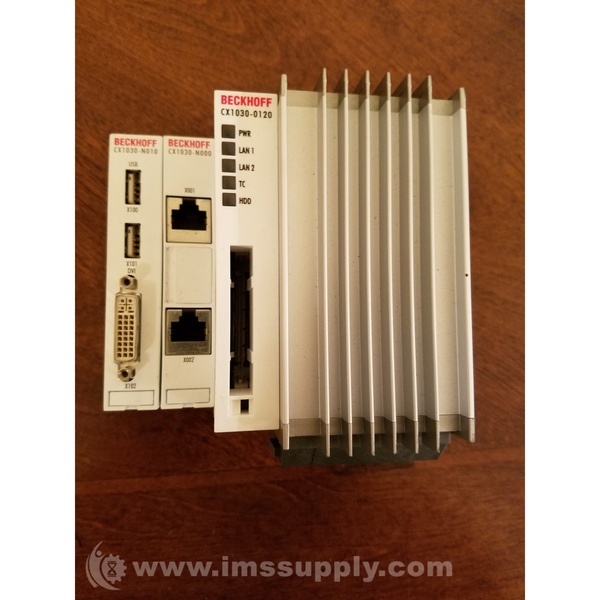

Beckhoff CX1030-0120 CPU Module


  • Processor: Intel® Pentium® M, 1.8 GHz clock frequency
  • Flash memory: 128 MB Compact Flash card (optionally expandable)
  • Internal main memory: 256 MB DDR RAM (expandable to 512 MB, 1 GB)
  • Interfaces: 2 x RJ45 (Ethernet, internal switch), 10/100 Mbit/s
  • Cooling: cooling module + fan cartridge featuring speed control with double ball bearing fans, easily replaceable
  • Diagnostics LED: 1 x power, 2 x LAN link/activity, TC status, 1 x flash access
  • Expansion slot: 1 x Compact Flash type I+II insert with eject mechanism
  • Clock: internal battery-backed clock for time and date (battery exchangeable)
  • Operating system: Microsoft Windows Embedded CE 6 or Microsoft Windows Embedded Standard 2009
  • Control software: TwinCAT 2 PLC runtime, NC PTP runtime, NC I runtime
  • System bus: 16 bit ISA (PC/104)
  • I/O connection: via power supply module (E-bus, K-bus, K-bus/IP-Link)
  • Power supply: via system bus (through CX1100-0012 [K-bus], CX1100-0013 [K-bus, IP-Link], CX1100-014 [E-bus] power supply module)
  • Max. power loss: 32 W (including CX1030-N0xx system interfaces)
  • Dimensions (W x H x D): 96 mm x 112 mm x 99 mm
  • Weight: approx. 580 g
  • Operating/storage temperature: 0…+50 °C/-25…+85 °C
  • Relative humidity: 95 %, no condensation
  • Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
  • EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
  • Protection class: IP 20
