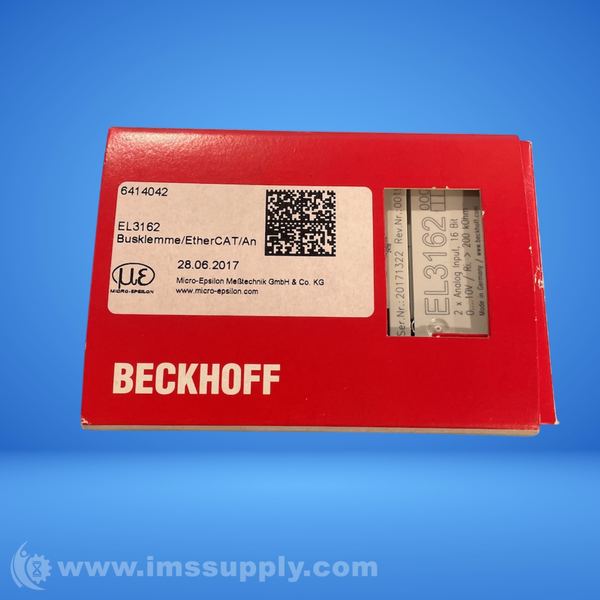

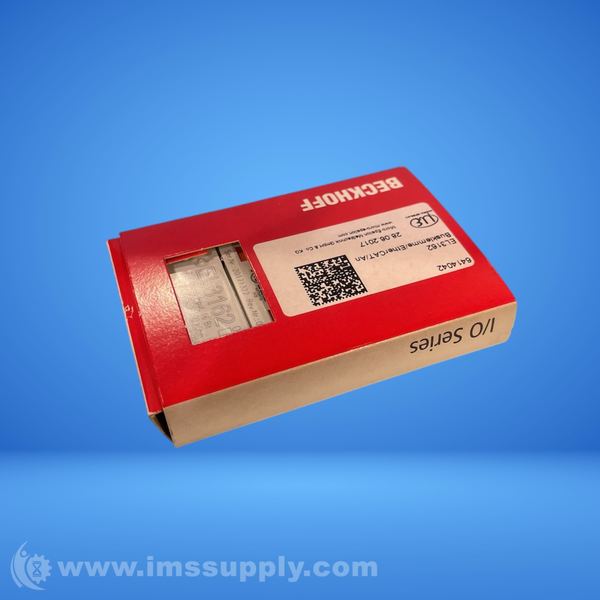

BECKHOFF EL3162 ETHERCAT TERMINAL
Quick Overview
Manufactured By: BECKHOFF
Manufacturer Part Number: EL3162
IMS Product Code: 2165317
Packaging: Sold Individually
Description:
Beckhoff EL3162 Ethercat Terminal
EtherCAT Terminal, 2-channel analog input, voltage, 0�10 V, 16 bit, single-ended
Specifications
- Type: EtherCAT Terminal
- Number of Inputs: 2 (single-ended)
- Signal Voltage: 0...10 V
- Resolution: 16 bit (including sign)
- Conversion Time: ~50 �s
- Internal Resistance: >200 kOhm
- Input Filter Limit Frequency: 5 kHz
- Dielectric Strength: Max. 30 V
- Electrical Isolation: 500 V (E-bus/field voltage)
- Power Supply: Via E-bus
- Current Consumption (E-bus): Typ. 170 mA
- Bit Width in Process Image: 2 x 16-bit input, 2 x 8-bit status
- Operating Temperature: -25�C to +60�C
- Storage Temperature: -40�C to +85�C
- Relative Humidity: 95%, non-condensing
- Protection Class: IP20
- Vibration/Shock Resistance: Conforms to EN 60068-2-6/EN 60068-2-27
- EMC Immunity/Emission: Conforms to EN 61000-6-2/EN 61000-6-4
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 57 minutes.
