BECKHOFF EP3356-0022 ETHERCAT BOX ANALOG INPUT
Quick Overview
Manufactured By: BECKHOFF
Manufacturer Part Number: EP3356-0022
IMS Product Code: 2174091
Packaging: Sold Individually
Description:

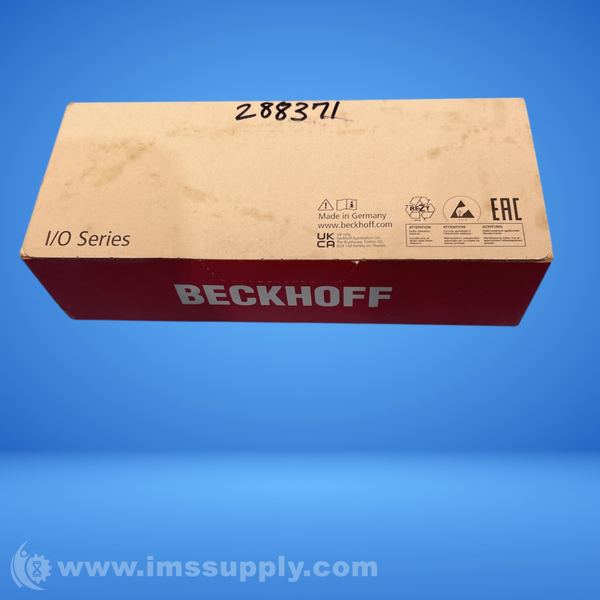

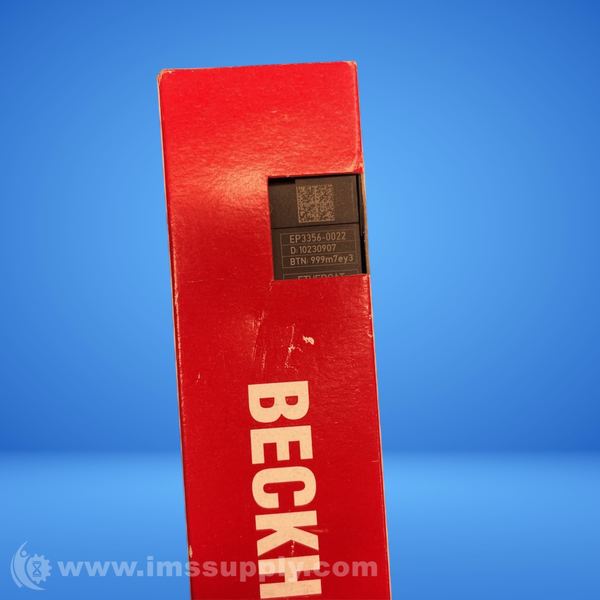

Beckhoff EP3356-0022 EtherCAT Box Analog Input
EtherCAT Box, 1-channel analog input, measuring bridge, full bridge, 24 bit, M12
Specifications
- Protocol: EtherCAT
- Bus interface: 2 x M8 socket, 4-pin, a-coded, shielded
- Number of inputs: 2, for 1 resistor bridge in full bridge technology
- Input connections: M12 x 1, 5-pin, A-coded
- Resolution: 24 bit, 32 bit presentation
- Signal type: resistor bridge, strain gauge
- Internal resistance: > 200 kO (UREF), > 1 MO (UD)
- Input filter cut-off frequency: 10 kHz low pass (-3 dB)
- Conversion rate: 10,000�4 samples/s (0.1�250 ms conversion time)
- Nominal voltage: 24 V (-15%/+20%)
- Distributed clocks: yes
- Sensor supply: 10 V (supplied from UP)
- Current consumption from US: 120 mA
- Power supply connection: feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
- Supported nominal sensitivity: all, parameter resolution: 0.01 �V/V; recommended: 0.5�2.5 mV/V
- Special features: self-calibration, quadruple averager, dynamic filters, fast data sampling, parallel connection
- Operating temperature: -25�+60 degrees C
- Storage temperature: -40�+85 degrees C
- Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 57 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 57 minutes.
