BECKHOFF KL1104 4-CHANNEL DIGITAL INPUT TERMINAL 24 V DC
Starting At: $9.20
Quick Overview
Manufactured By: BECKHOFF
Manufacturer Part Number: KL1104
IMS Product Code: 321062
Packaging: Sold Individually
Description:

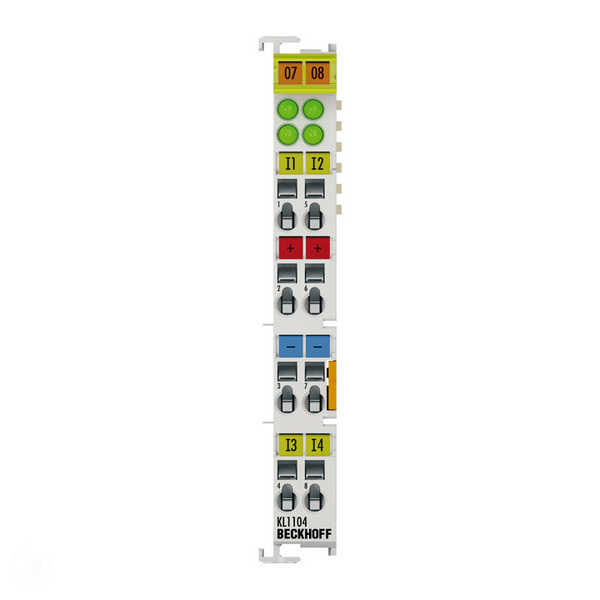

Beckhoff KL1104 4-Channel Digital Input Terminal
The KL1104 digital input terminal acquires the binary 24 V DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal contains four channels that indicate its signal state by means of light emitting diodes.
Special features:
- input specification type 1/3
- no bouncing due to mechanical switches thanks to 3 ms input filter
- +24 V DC and 0 V DC sensor supply connections
Technical Data
| Connection technology | 2-/3-wire |
| Specification | EN 61131-2, type 1 |
| Number of inputs | 4 |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| “0” signal voltage | -3…+5 V |
| “1” signal voltage | 15…30 V |
| Input filter | typ. 3.0 ms |
| Input current | typ. 5 mA |
| Current consumption K-bus | typ. 5 mA |
| Electrical isolation | 500 V (K-bus/field potential) |
| Bit width in the process image | 4 inputs |
| Configuration | no address or configuration setting |
| Weight | approx. 55 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, UL, ATEX, DNV GL |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
Housing Data
| Design form | |
| Material | |
| Dimensions (W x H x D) | |
| Installation | |
| Side by side mounting by means of | |
| Marking | |
| Wiring | |
| Connection cross-section | |
| Connection cross-section AWG | |
| Stripping length | |
| Current load power contacts |
*s: solid wire; st: stranded wire; f: with ferrule
