BELL & GOSSETT 132122 TRIPLE DUTY VALVE
Quick Overview
Manufactured By: BELL & GOSSETT
Manufacturer Part Number: 132122
IMS Product Code: 1836871
Packaging: Sold Individually
Description:

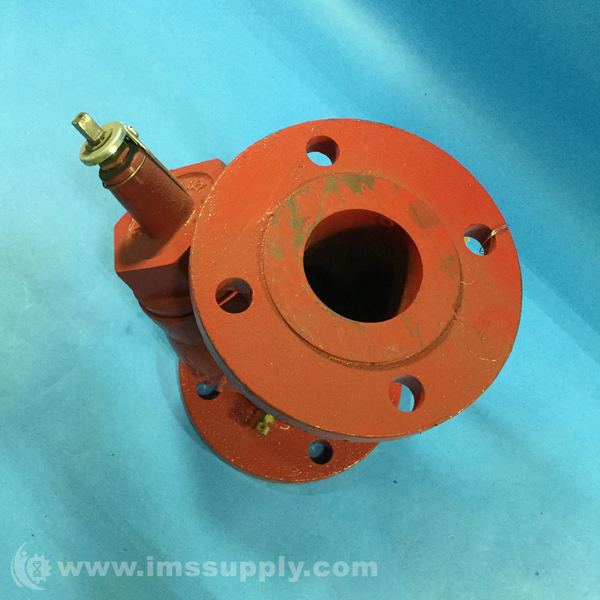

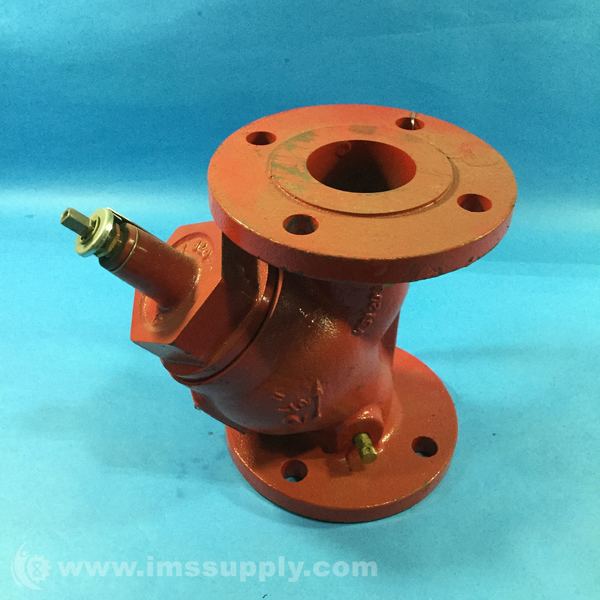

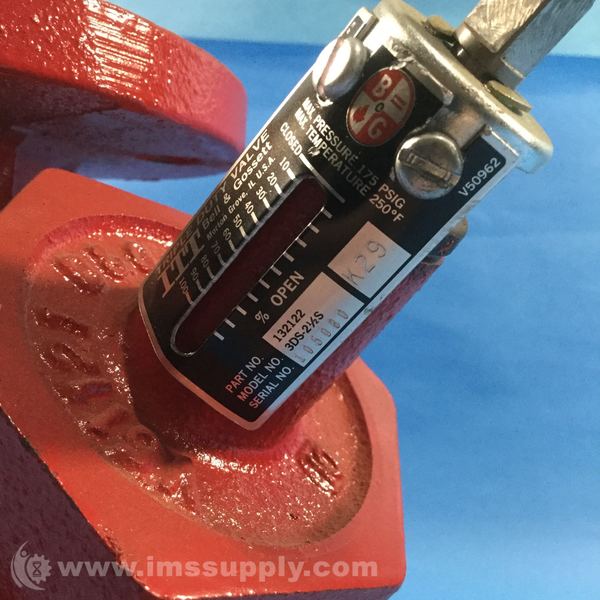

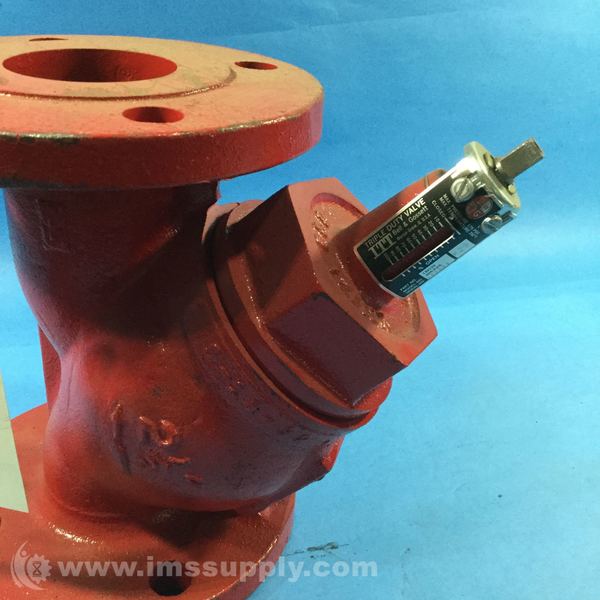

Bell & Gossett 132122 Triple Duty Valve
The Bell & Gossett Triple Duty Valve is a combination valve that provides all of the functions normally required on the discharge side of hydronic pump systems. It combines a calibrated balance valve, non-slam check valve, and positive shut-off valve. The valve is made of cast iron and is rated to 175 psi and 250 degrees F. It features a replaceable bronze disc with EPDM insert and brass read-out valves for accurate balancing.
Specifications
- Manufacturer: Bell & Gossett
- Model: 3DS-2-1/2S
- Part Number: 132122
- Material: Cast Iron
- Connection Size: 2-1/2"
- Connection Type: Flanged
- Max Pressure: 175 psi
- Max Temp: 250 degrees F
- Softgoods Material: EPDM
- Weight: 27.68 lbs
- Product Dimensions: 10.65" x 15" x 11.35"
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
