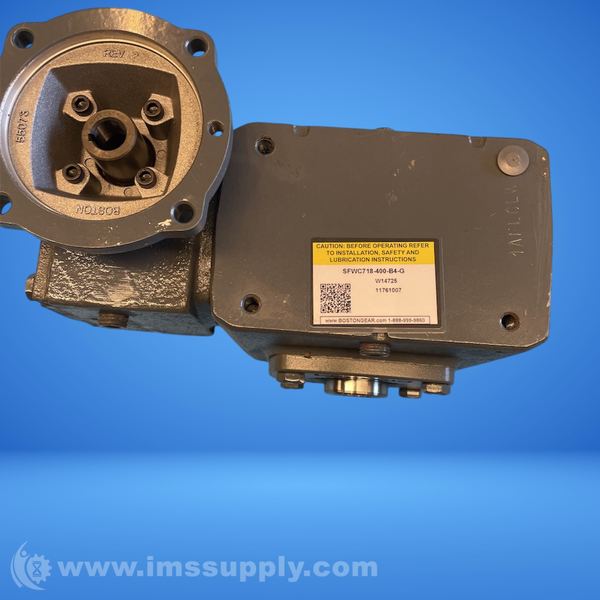

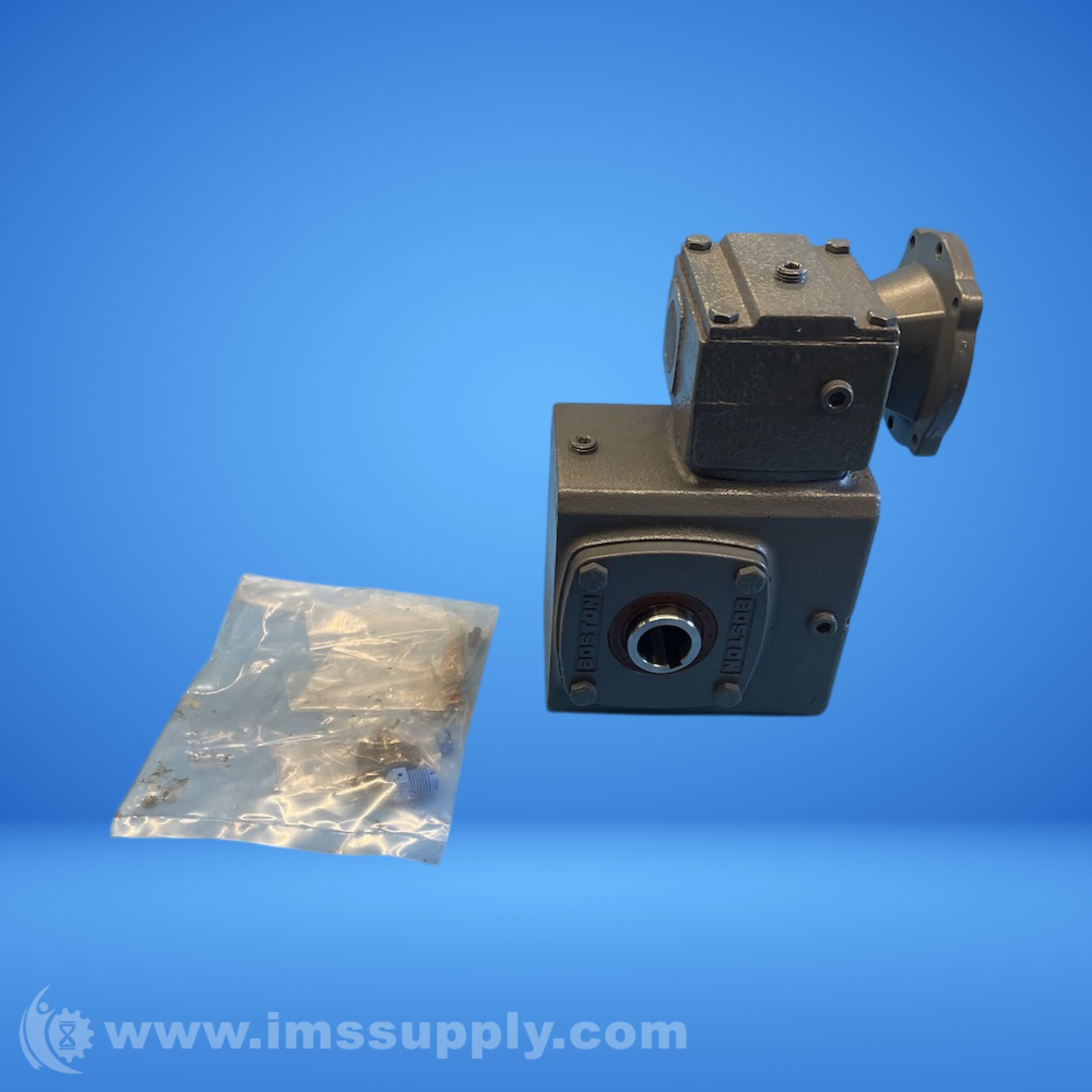

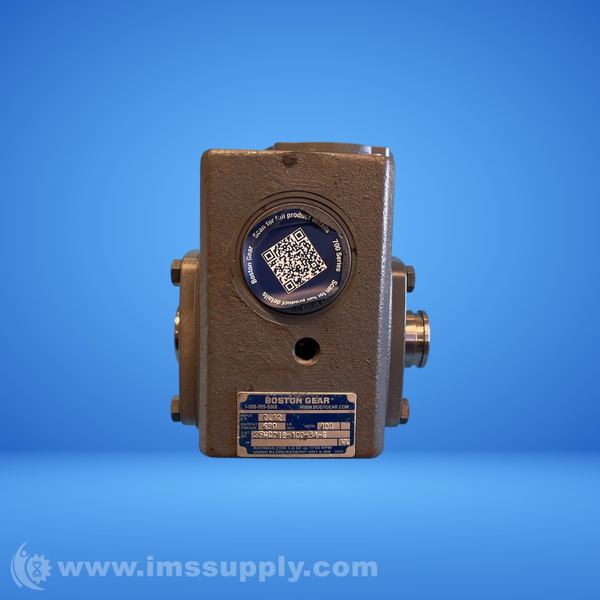

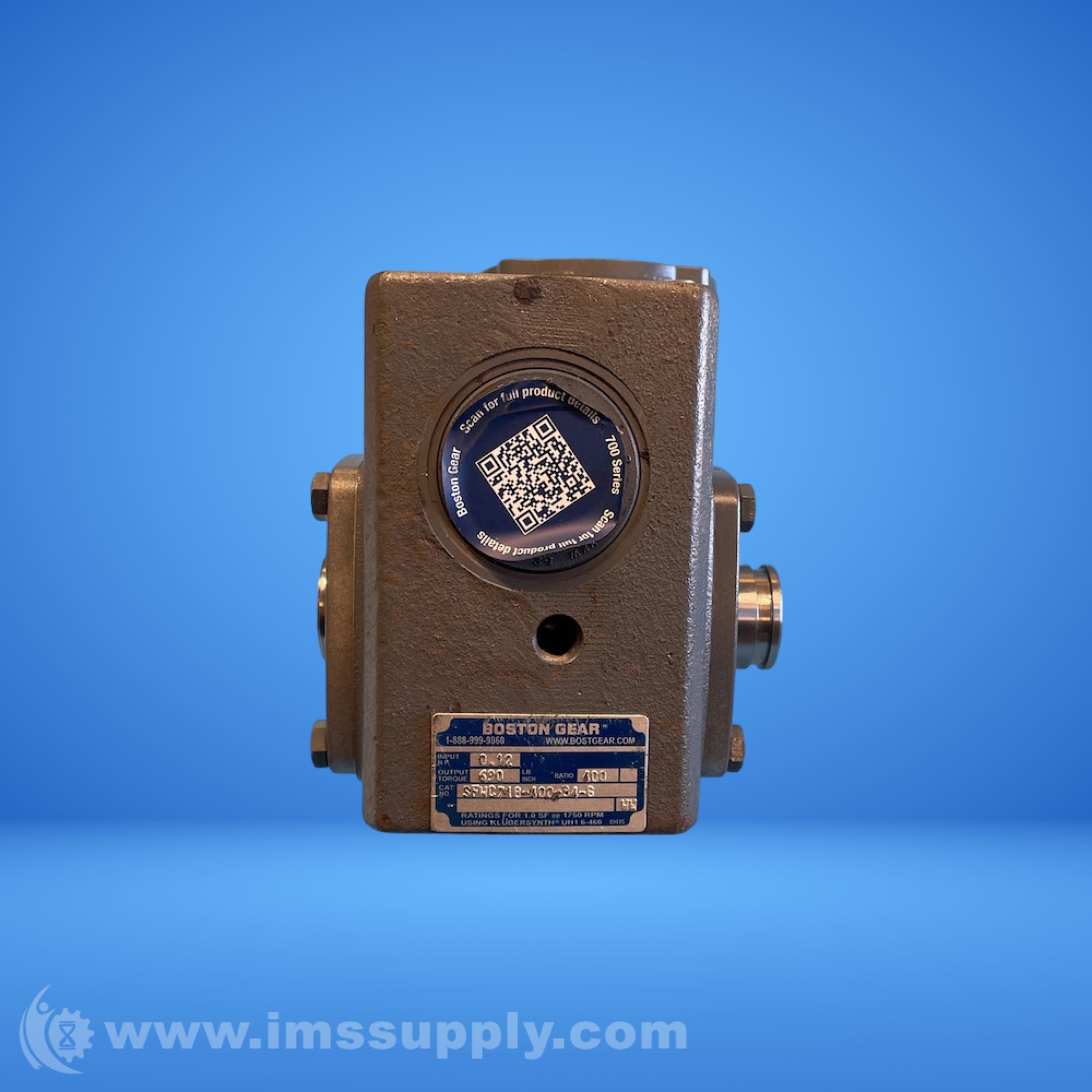

BOSTON GEAR SFWC718-400-B4-G RIGHT ANGLE GEAR DRIVE
Quick Overview
Manufactured By: BOSTON GEAR
Manufacturer Part Number: SFWC-718-400-B4-G
IMS Product Code: 2145728
Packaging: Sold Individually
Description:
Boston Gear SFWC718-400-B4-G Right Angle Gear Drive
Right Angle Helical Worm Gear Drive, Double Reduction, 400:1 Gear Ratio, Cast Iron, 5.5 in L x 6.97 in W x 3.69 in H
Specifications
- Series: 700
- Gear Ratio: 400:1
- Input hp: 0.12
- Output hp: 0.048
- Motor hp: 0.17
- Input Type: Quill Flange
- Output Type: Solid Projecting Shaft
- Input Shaft Diameter: 1/2 in
- Output Shaft Diameter: 7/8 in
- Maximum Output Speed: 4.4 rpm
- Maximum Input Speed: 1750 rpm
- Torque Rating: 690 in-lb
- Centre Distance: 1-3/4 in
- Keyway: 1/8 x 1/16 in
- Efficiency: 0.4 %
- Lubrication: Klubersynth UH1 6-460
- Material: Cast Iron
- Mounting: No Base Mount
- Dimensions: 5.5 in L x 6.97 in W x 3.69 in H
- AGMA Class: II
