B&R 8V1022.00-2 ACOPOS SERVO DRIVE
Quick Overview
Manufactured By: B&R
Manufacturer Part Number: 8V1022.00-2
IMS Product Code: 306478
Packaging: Sold Individually
Description:
B&R 8V1022.00-2 ACOPOS Servo Drive
ACOPOS servo drive, 3x 400-480 V, 2.2 A, 1 kW, with line filter, integrated braking resistor and electronic secure restart inhibit
Specifications
- Input Voltage: 3x 400-480V AC
- Nominal Current: 2.2A
- Power Output: 1.0 kW
- Dimensions: 3.0 in x 15.0 in x 9.0 in (7.6 cm x 38.1 cm x 22.9 cm)
- Weight: 8 lbs 6.1 oz (3.8 kg)
- Country of Manufacture: Austria
- Certifications: CE: Yes, UL (cULus E225616): Yes, KC: Yes
- Operating Temperature: 5 to 40 degrees C (Nominal), Up to 55 degrees C (Maximum)
- Storage Temperature: -25 to 55 degrees C
- Transport Temperature: -25 to 70 degrees C
- Relative Humidity: 5 to 85% (Operation), 5 to 95% (Storage), Up to 95% at 40 degrees C (Transport)
- Nominal Frequency: 50Hz - 60Hz (+/-4% tolerance)
- Switching Frequencies Supported: 5kHz, 10kHz, 20kHz
- IP Rating: IP 20
- Continuous Current: 2.2 Amps (RMS)
- Peak Current: 14 Amps
- Power Stage: IGBT
- Brake Chopper: Integrated
- Restart Inhibit: Integrated electronic secure restart inhibit
- Motor Operation: Operation of synchronous and induction motors
Used (Special):

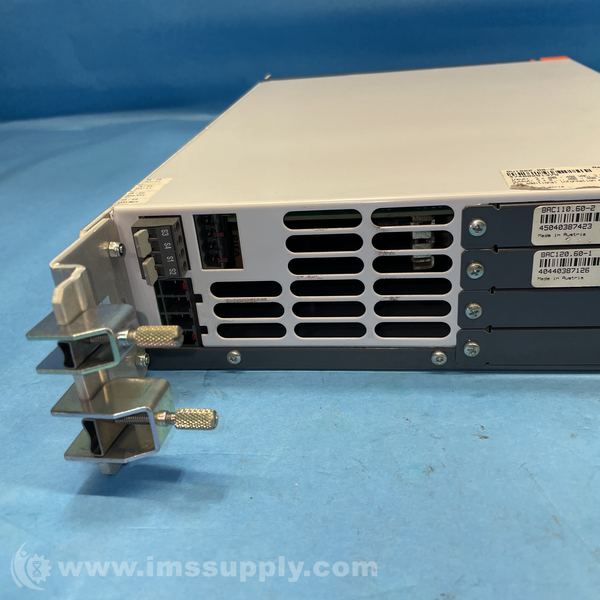

Part comes with multiple attachments AC110 P/N 8AC110.60-2,AC120.60-1, and two other unknown attachments.
Availability: 1 In Stock
Ships on Monday, December 29, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Part comes with multiple attachments AC140 P/N 8AC140.16-3,AC120 P/N 8AC120.60-1, and three unknown attachment.
Availability: 1 In Stock
Ships on Monday, December 29, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
