BRAY 92-0630-11300-532 PNEUMATIC ACTUATOR
Quick Overview
Manufactured By: BRAY
Manufacturer Part Number: 92-0630-11300-532
IMS Product Code: 373383
Packaging: Sold Individually
Description:

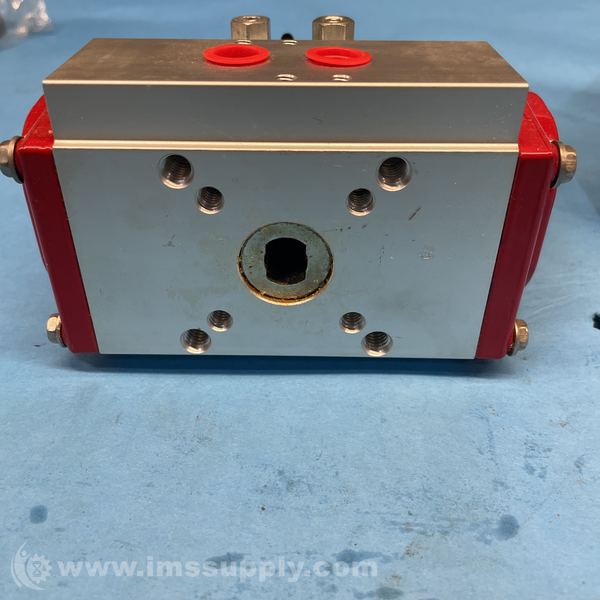

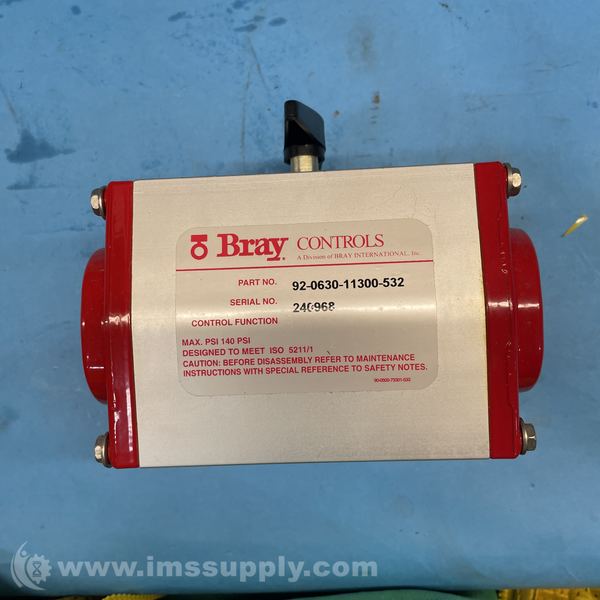

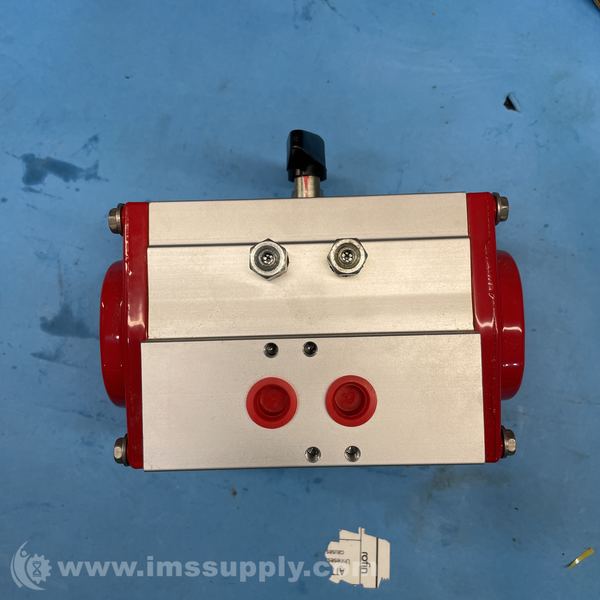

Bray 92-0630-11300-532 Pneumatic Actuator

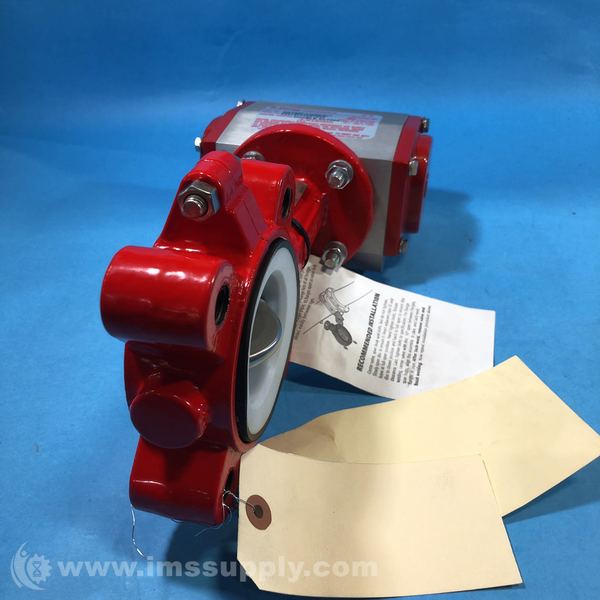

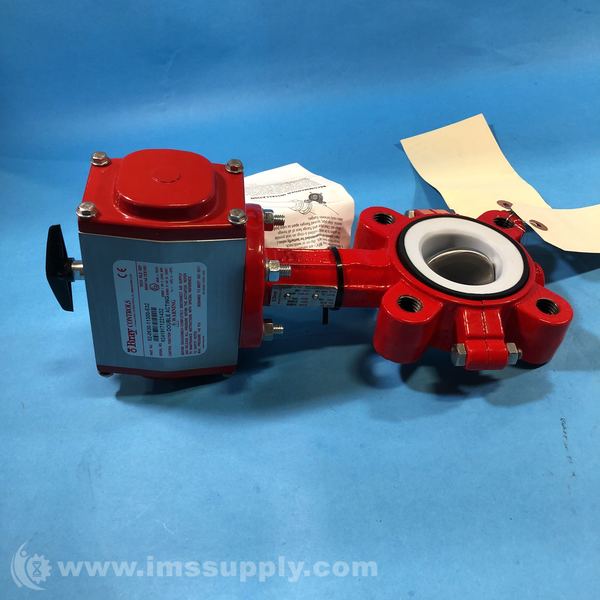

Double acting pneumatic actuator for 2" butterfly valves, max pressure 140 PSI (10 BAR), torque 4,986 Nm.
Specifications
- Torque: to 44,130 Lb-in (4,986 Nm)
- Pressure Rating: Max Pressure: 140psig (10 Bar)
- Temperature Range: Standard: -4°F to 200°F (-20°C - 93°C)
- Body Materials: Extruded Aluminum Alloy, Anodized 316 Stainless Steel, Electroless Nickel Plated Body Exterior, Hard Anodized Body Exterior
- Output Shaft/Pinion: Carbon Steel, Zinc Plated, Stainless Steel
- Pistons: Die Cast Aluminum Alloy
- End Caps: Die cast Aluminum Alloy with Corrosion Resistant Polyester Coating 316 Stainless Steel
- Piston O-Ring Seals: BUNA-N
- Approvals: CE-marked
- Pressure Range: 40 to 140 psi (2.8 to 10 bar)
- Media: Dry Compressed Air/Inert Gas
- Travel Stop Material: Alloy Steel
- Piston Guides Material: Acetal
- Weight: 3.62 lbs
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Availability: 1 In Stock
Lead Time: 4 to 5 Days
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
