BROWNING VF2S-116 TWO-BOLT FLANGE BALL BEARING UNIT
Quick Overview
Manufactured By: BROWNING MFG
Manufacturer Part Number: VF2S-116
IMS Product Code: 1944339
Packaging: Sold Individually
Description:

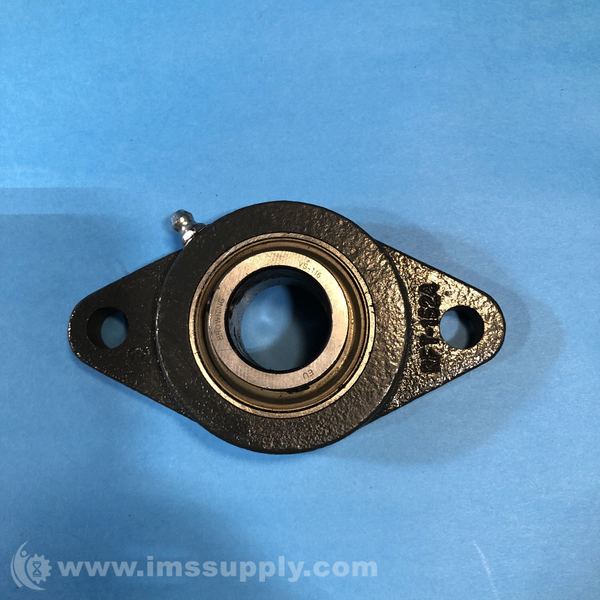

Browning VF2S-116 Two-Bolt Flange Ball Bearing Unit
Two-Bolt Flange Ball Bearing Unit with 1 inch bore, cast iron housing, set screw locking, and single lip contact seal
Specifications
- Bore Diameter: 1 in
- Housing Material: Cast Iron
- Duty Type: Intermediate Duty
- Bolt Center To Center Length: 3.8910 in
- Overall Length: 4.8750 in
- Locking Device: Set Screw
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Single Lip Contact Seal
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Bore Type: Straight
- Inner Ring Width: 1.1090 in
- Bearing Material: 52100 Bearing Steel
- Radial Dynamic Load Capacity: 2801 lbf
- Radial Static Load Capacity: 1651 lbf
- Operating Temperature Range: -20 to 200 degrees F
- Max Operating Temperature: 200 degrees F
- Bolt Size: 0.4375 in
- Max Rpm: 3500 rpm
- Series: VF2S
- Weight: 1.26 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
