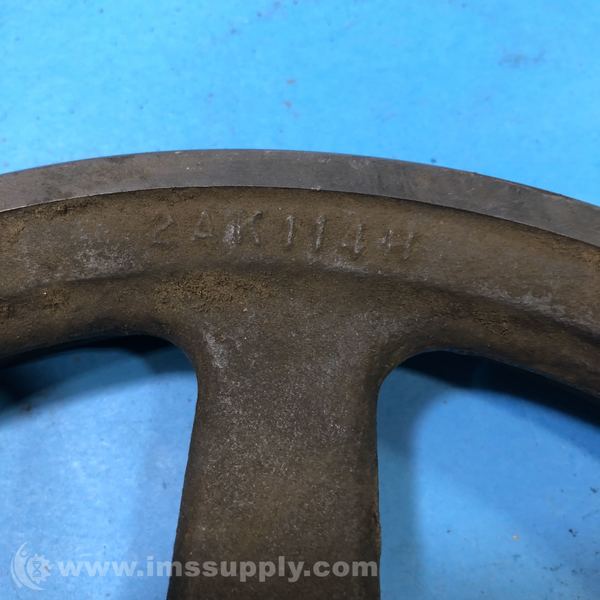

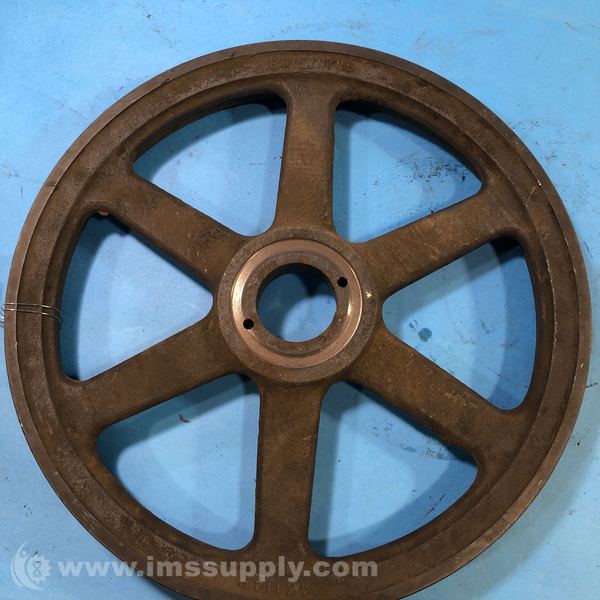

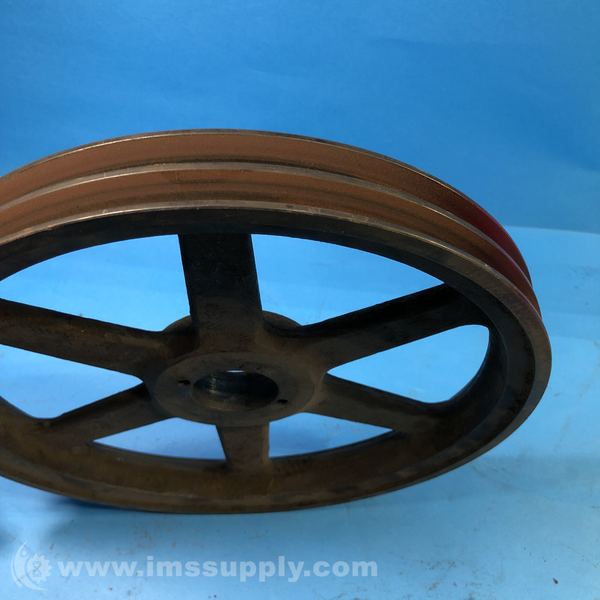

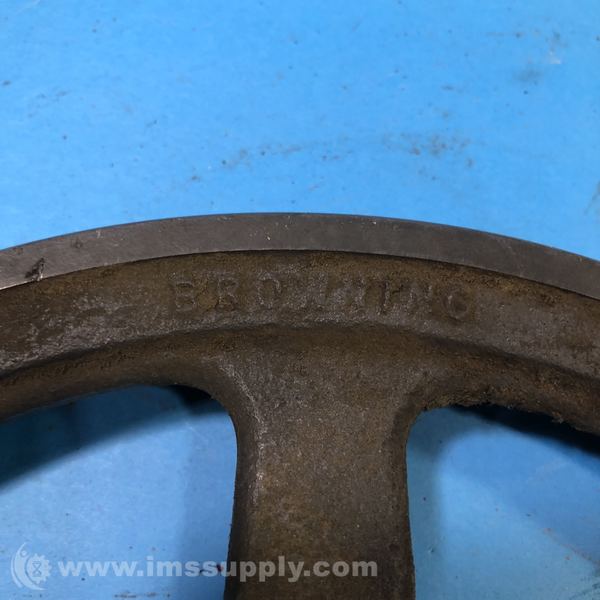

BROWNING 2AK114H CAST IRON BUSHED SHEAVE
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: 2AK114H
IMS Product Code: 1897335
Packaging: Sold Individually
Description:
Browning 2AK114H Cast Iron Bushed Sheave
Cast iron bushed sheave with 2 grooves, 11.25 inch outside diameter, split taper bushing type, suitable for 4L, A, and 3L belt sections.
Specifications
- Bushing Type: Split Taper
- Outside Diameter: 11.25 inches
- Type of Bore: Bushed
- Datum Diameter: 11 inches
- Pitch Diameter: 11.2 inches (A), 10.66 inches (3L)
- No. of Grooves: 2
- Belt Size: A, 3L, 4L
- Material: Cast Iron
- Bushing Series: H
- Outside Length: 1.5 inches
- Bore (Min): 0.375 inches
- Weight: 9.41 LB
- Pulley Type: Fixed Pitch
- Belt Type: 3L, 4L, A
- Bore Type: Requires Bushing
- Diameter: 11.25 Inch
- Height: 2 inches
- Length: 11.7 inches
- Width: 11.6 inches
- Series: AK Series
- Bore Diameter: 3/8 to 1-1/2 inches
- Face Width: 1-3/8 inches
- Hub Projection: 1/32 inches
- Overall Length: 1-13/32 inches
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
