BROWNING 2B5V48 CAST IRON MULTIPLE SHEAVE
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: 2B5V48
IMS Product Code: 2140407
Packaging: Sold Individually
Description:

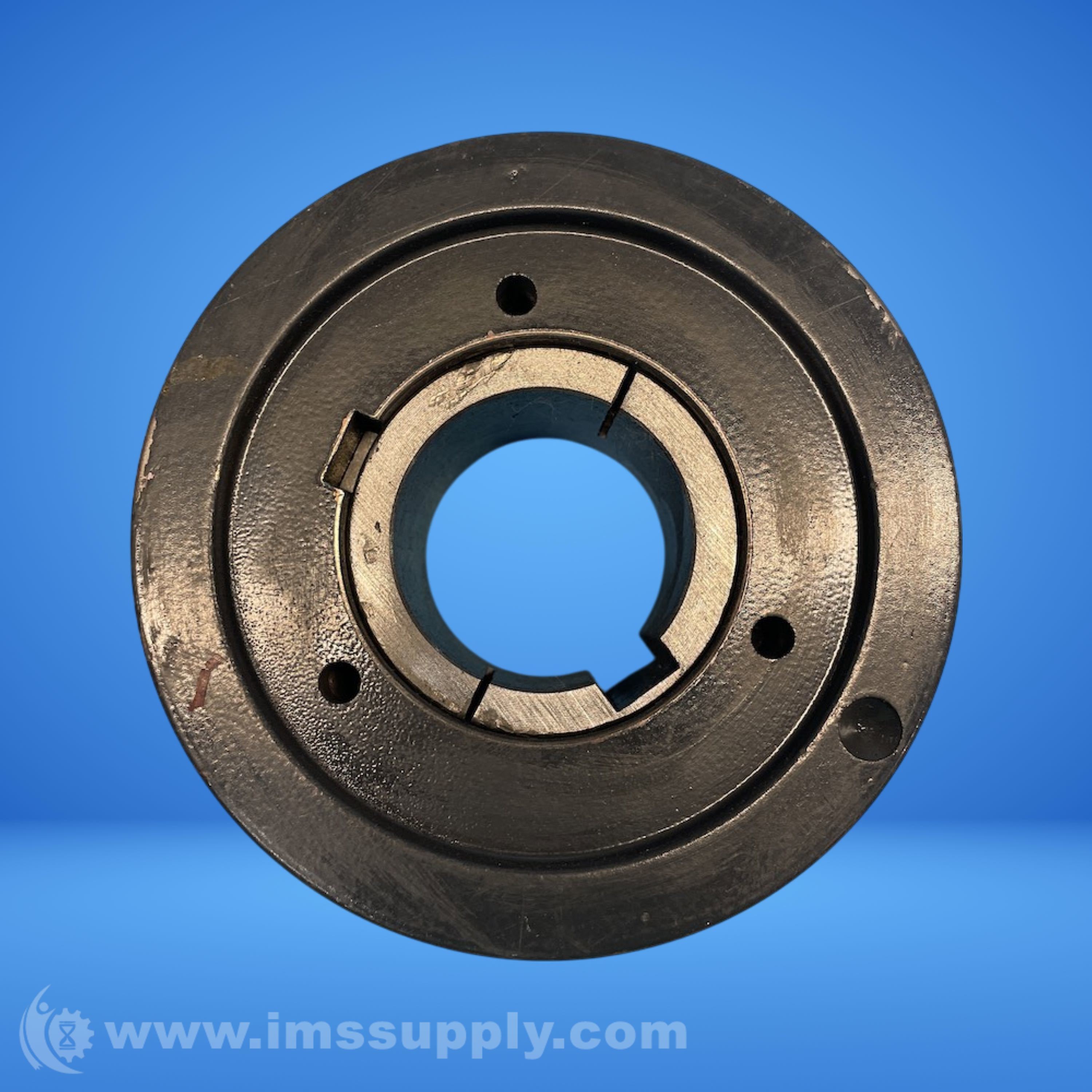

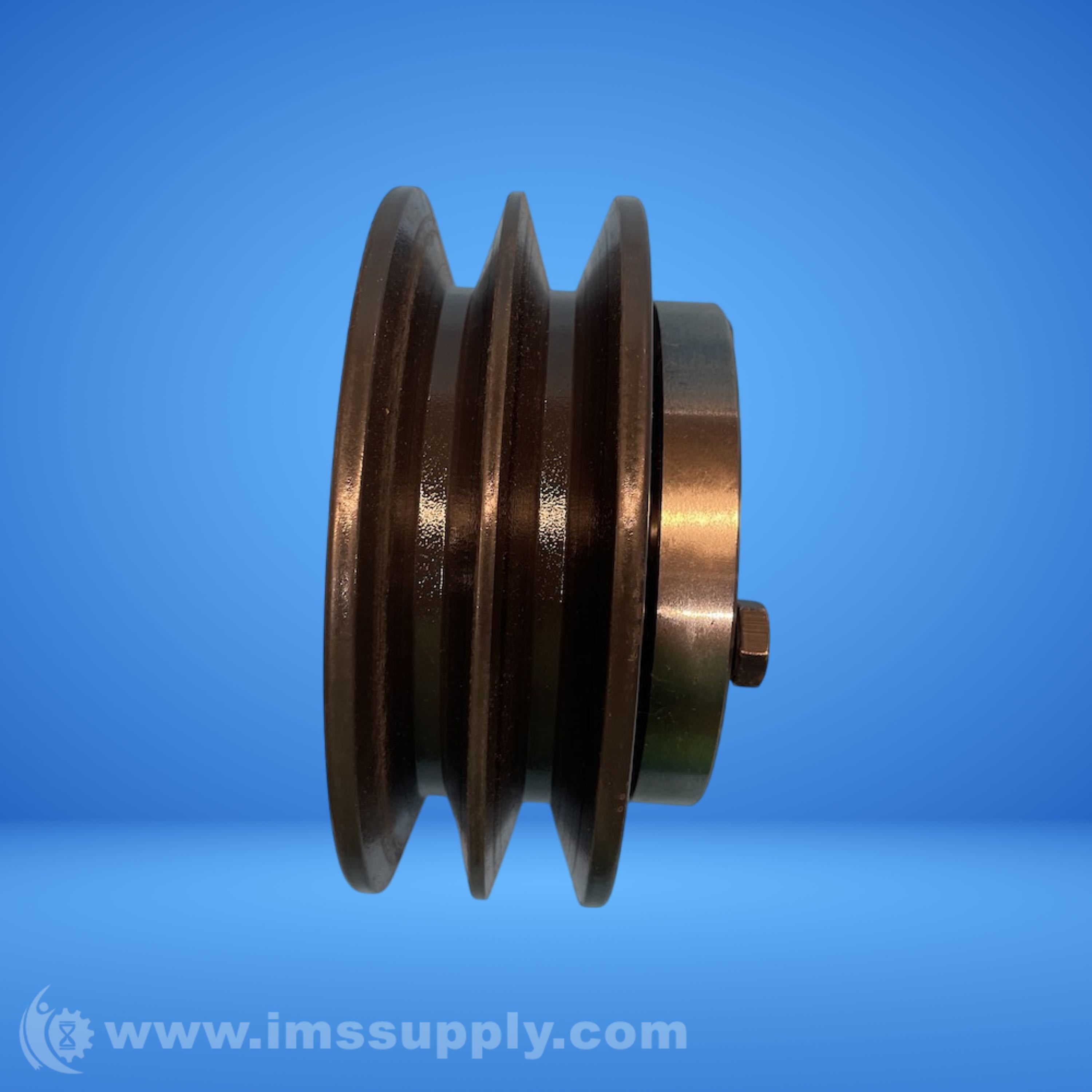

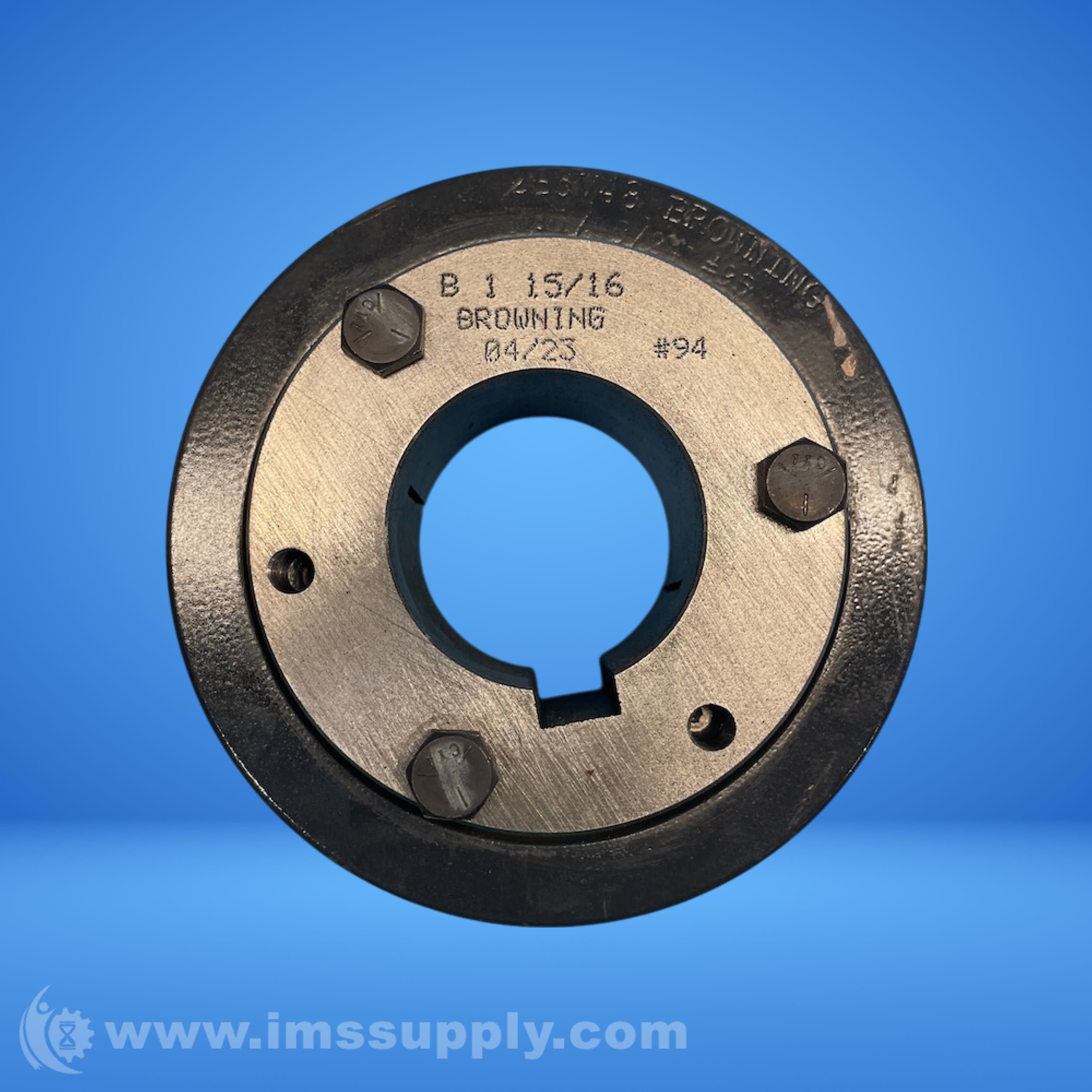

Browning 2B5V48 Cast Iron Multiple Sheave
Cast iron multiple sheave with split taper bushing, 2 grooves, compatible with A, B, and 5V belts.
Specifications
- Bore Type: Split Taper Bushed
- Material: Cast Iron
- Number of Grooves: 2
- Outside Diameter: 5.08 in
- Type: Type 3
- Series: B5V
- Bore Diameter: 1/2 to 1-15/16 in
- Pitch Diameter: 4.9 in 5V/4.6 in A/5.1 in B
- Face Width: 1-23/32 in
- Hub Projection: 5/8 in
- Bushing Type: B
- Overall Length: 2-35/64 in
- Suitable For Use With: Gripbelt A and B, 5V Cross Section Belts
- For Belt Trade Size: 5V, A, B
- Minimum Bore Diameter (Inch): 5/8
- Maximum Bore Diameter (Inch): 2-1/4
- Bushing Style: B
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 13 hours and 30 minutes.
