BROWNING B 1 5/16 SPLIT TAPER BUSHING
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: B 1 5/16
IMS Product Code: 1843456
Packaging: Sold Individually
Description:

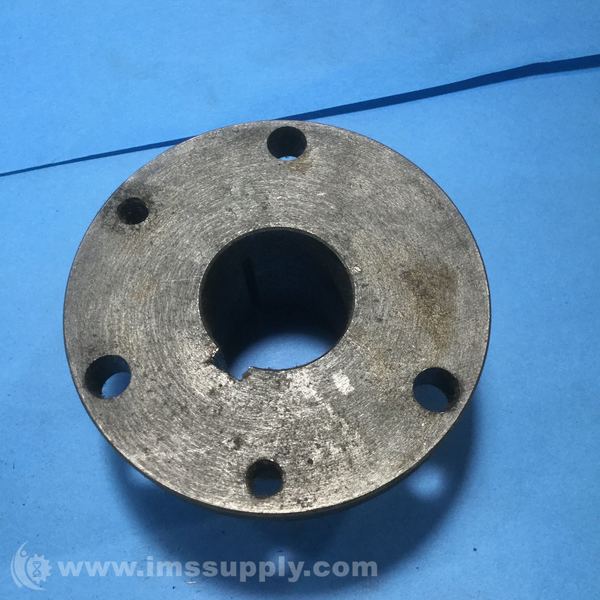

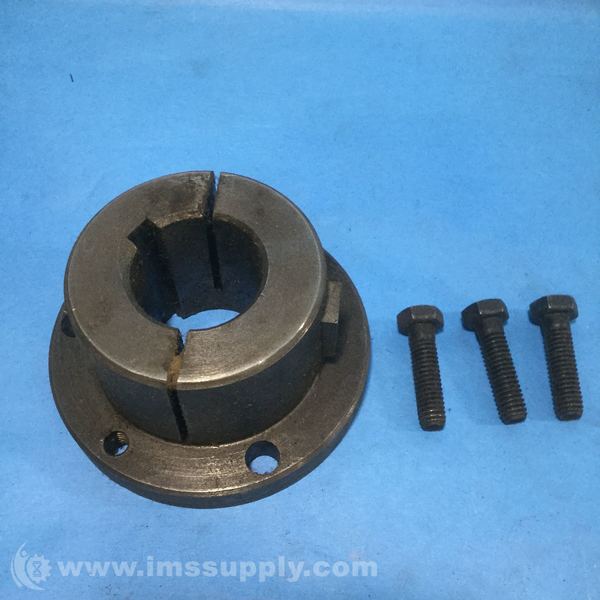

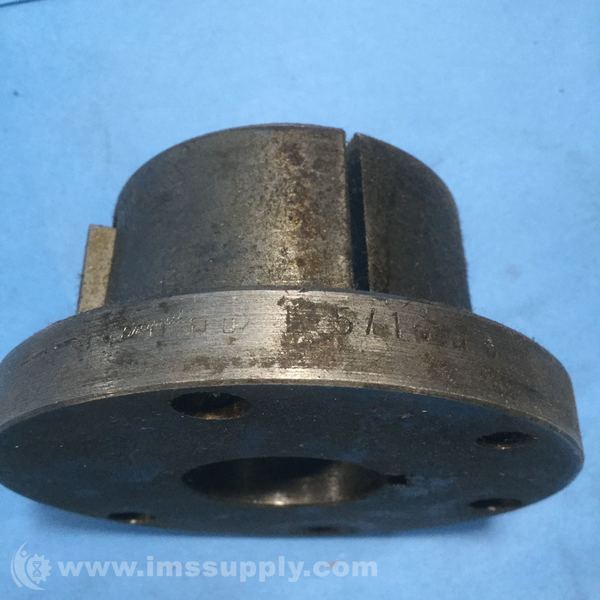

Browning B 1 5/16 Split Taper Bushing
Split taper bushing with 1-5/16 inch bore, 3.6875 inch flange OD, and steel material
Specifications
- Bushing Size: B
- Bore Type: Finished Bore
- Keyway Size: 5/16 x 5/32
- Bore Diameter: 1-5/16 in
- Material: Steel
- Flange Outside Diameter: 3.6875 in
- Flange Thickness: 1/2 in
- Flange Type: Solid Flange
- Length Through Bore: 1.9375 in
- Barrel Diameter Large End: 2-5/8 in
- Screw Torque: 192 in
- Barrel Diameter Small End: 2.5567 in
- Bolt Circle Diameter: 3-1/8 in
- Number Of Bolt Holes: 3
- Screw Thread Size: 5/16 in
- Screw Length: 1-1/4 in
- Mounting Type: Conventional
- Weight: 2.74
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
