BROWNING H10MM SPLIT TAPER BUSHING

Call For Quote

Quick Overview

Manufactured By: BROWNING
Manufacturer Part Number: H 10 MM
IMS Product Code: 1734889
Packaging: Sold Individually

Description:

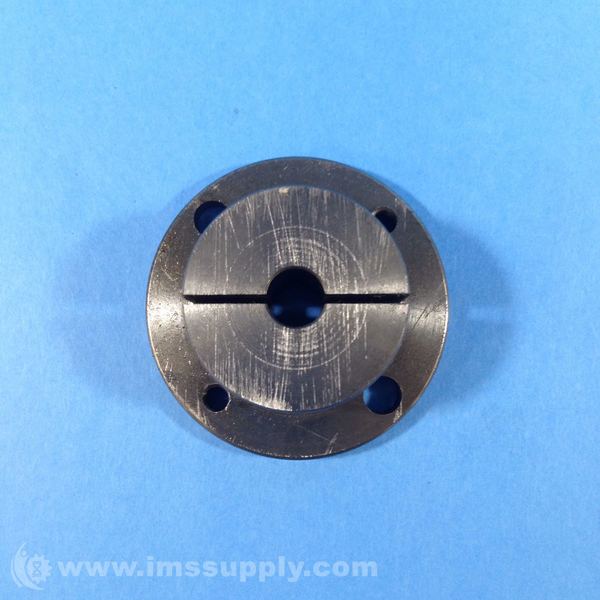

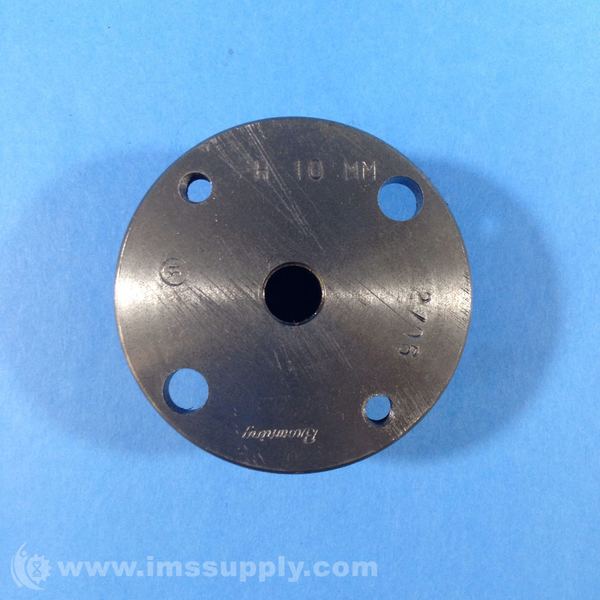

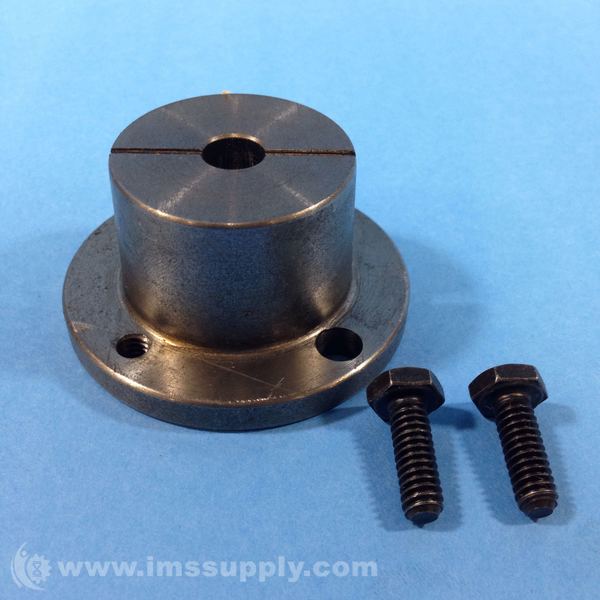

Browning H10MM Split Taper Bushing

Specifications:

  • Bore Diameter: 10 mm
  • Flange Outside Diameter: 2-1/2 in
  • Flange Thickness: 1/4 in
  • Length Through Bore: 1-1/4 in
  • Barrel Diameter (Large End): 1-5/8 in
  • Bushing Size: H
  • Bore Type: No Keyway
  • Material: Sintered Steel
  • Flange Type: Solid Flange
  • Mounting Type: Conventional
  • Screw Torque: 95 in·lb
  • Barrel Diameter (Small End): 1.57 in
  • Bolt Circle Diameter: 2 in
  • Number of Bolt Holes: 2
  • Screw Thread Size: 1/4 in
  • Screw Length: 3/4 in

Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.

Shipping Times Provided In Quote

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Browning. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
