BROWNING HB60A13X5/8 IDLER SPROCKET
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: HB60A13X5/8
IMS Product Code: 2156062
Packaging: Sold Individually
Description:

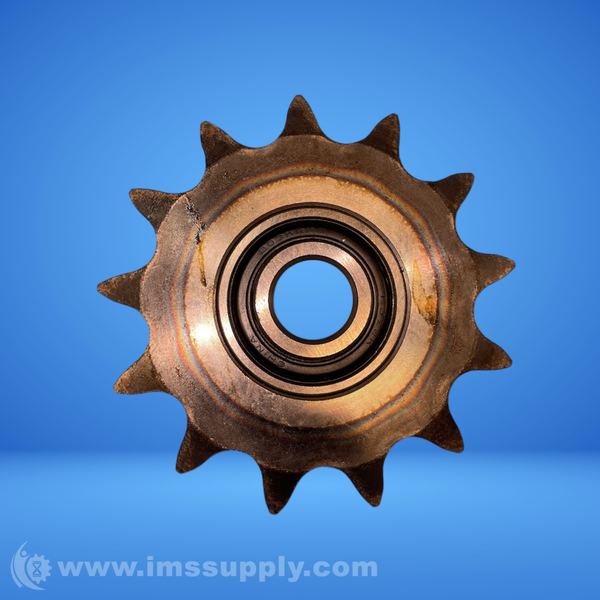

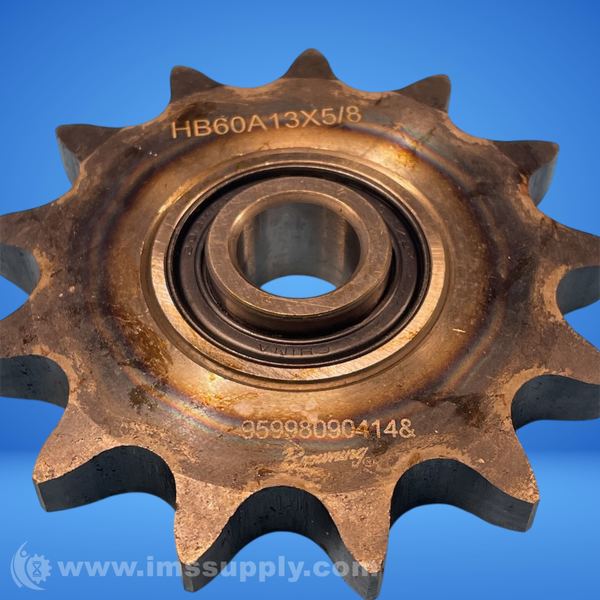

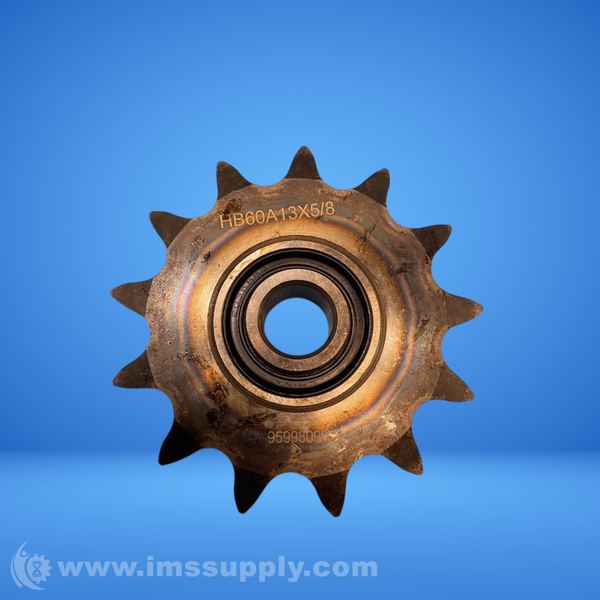

Browning HB60A13X5/8 Idler Sprocket
Steel ANSI #60 roller chain idler sprocket with 13 teeth, a 3/4" pitch, and a 5/8" finished bore. It features an integral ball bearing for smooth rotation and tensioning in conveyor and drive systems. Compatible with standard ANSI #60 roller chain for industrial material handling and power transmission applications.
Specifications
- Bore Diameter: 0.635 in
- Chain Size: 60
- Chain Pitch: 0.75 in
- Hub Type: No Hub
- Length Through Bore: 0.72 in
- Material: Steel
- Number of Strands: 1
- Number of Teeth: 13
- O.D.: 3.49 in
- Outside Diameter: 3.49 in
- Pitch: 3/4 in
- Pitch Diameter: 3.134 in
- Sprocket Material: Steel
- Tooth Width: 0.459 in
- Type Of Bearing: Ball Bearing
- Weight: 0.86 lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
