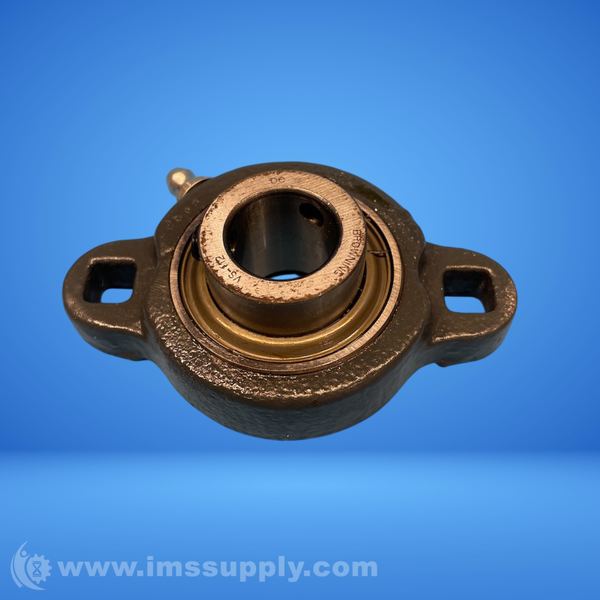

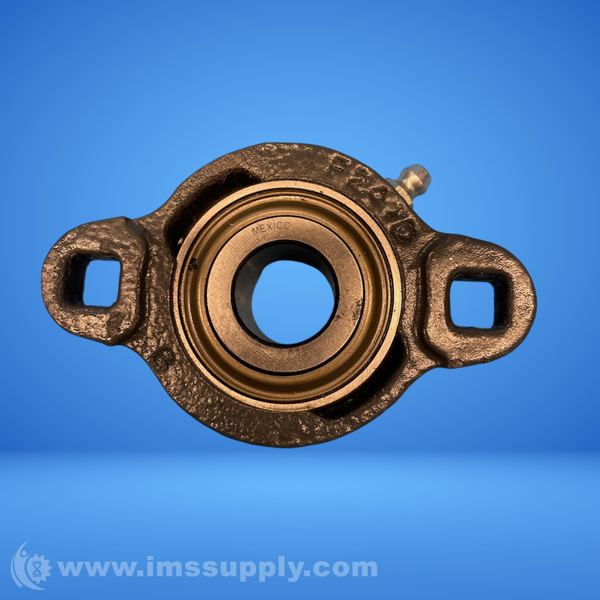

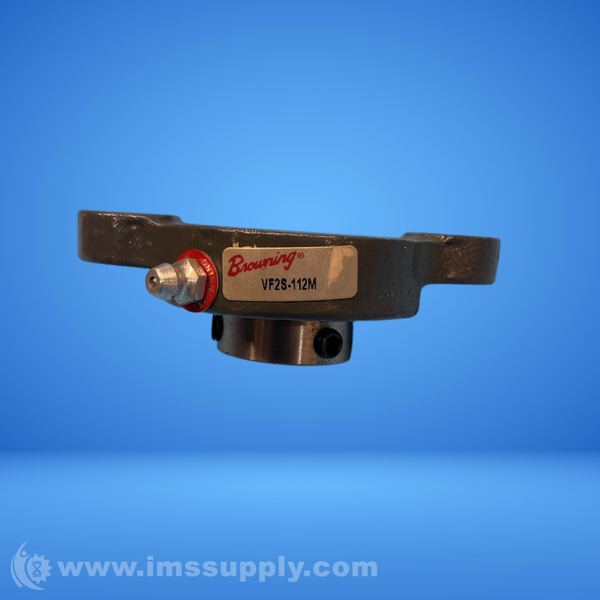

BROWNING VF2S-112M TWO-BOLT FLANGE BALL BEARING UNIT
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: VF2S-112M
IMS Product Code: 2156587
Packaging: Sold Individually
Description:
Browning VF2S-112M Two-Bolt Flange Ball Bearing Unit
Two-Bolt Flange Ball Bearing Unit - 3/4 in Bore, 2-Bolt Flange, Set Screw Locking, Ductile Iron Housing Material, Non-Expansion Bearing (Fixed), Intermediate Duty, Single Lip Contact Seal Seal
Specifications
- Product Type: Flange-Mount Ball Bearing Units
- Bore Diameter: 3/4 in
- Housing Material: Ductile Iron
- Duty Type: Intermediate Duty
- Bolt Center To Center Length: 2.8130 in
- Overall Length: 3.5630 in
- Locking Device: Set Screw
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Single Lip Contact Seal
- Overall Height: 1.1094 in
- Housing Width: 0.7188 in
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Bore Type: Straight
- Overall Width: 2.2500 in
- Inner Ring Width: 1.1090 in
- Bearing Material: 52100 Bearing Steel
- Radial Dynamic Load Capacity: 2611 lbf
- Radial Static Load Capacity: 1444 lbf
- Length Through Bore: 1.1090 in
- Operating Temperature Range: -20 degrees to 200 degrees F
- Max Operating Temperature: 200 degrees F
- Finish Coating: Gray
- Bolt Size: 0.3594 in
- Max Rpm: 4000 rpm
- Series: VF2S
- Weight: 0.68 lbs
- Type Of Bearing: Ball
- Mounting Type: 2-Bolt Flange
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 10 minutes.
