BROWNING VF2S-120SM TWO BOLT FLANGE BALL BEARING
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: VF2S-120SM
IMS Product Code: 2086898
Packaging: Sold Individually
Description:

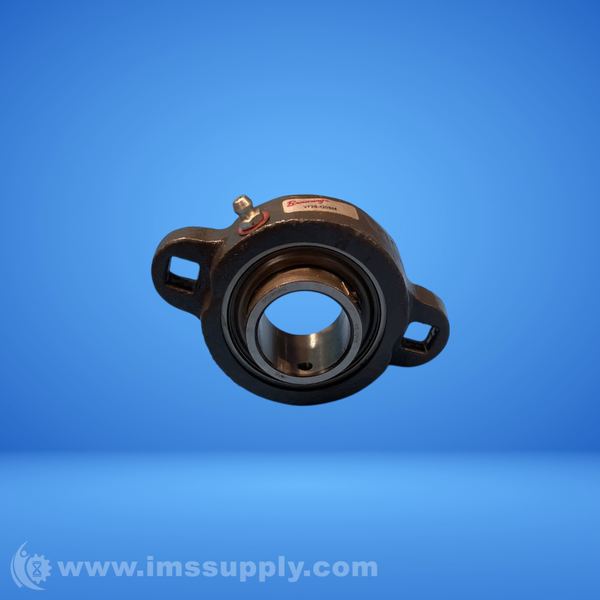

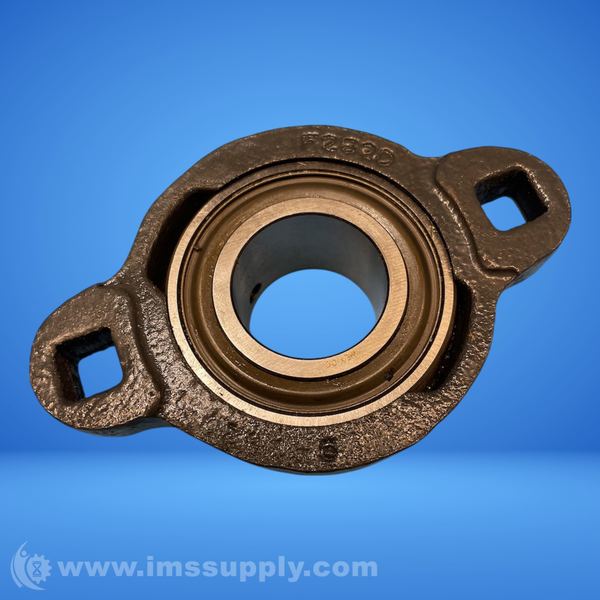

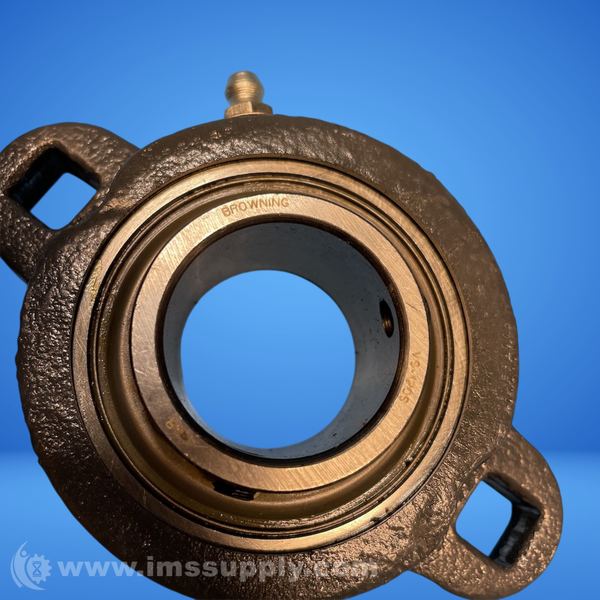

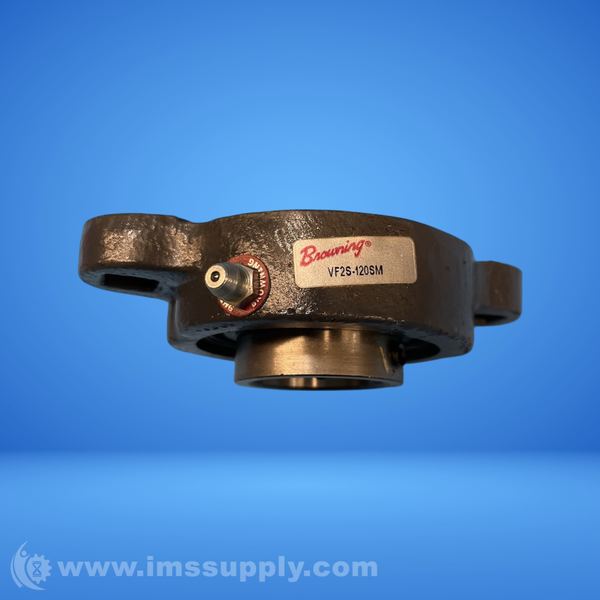

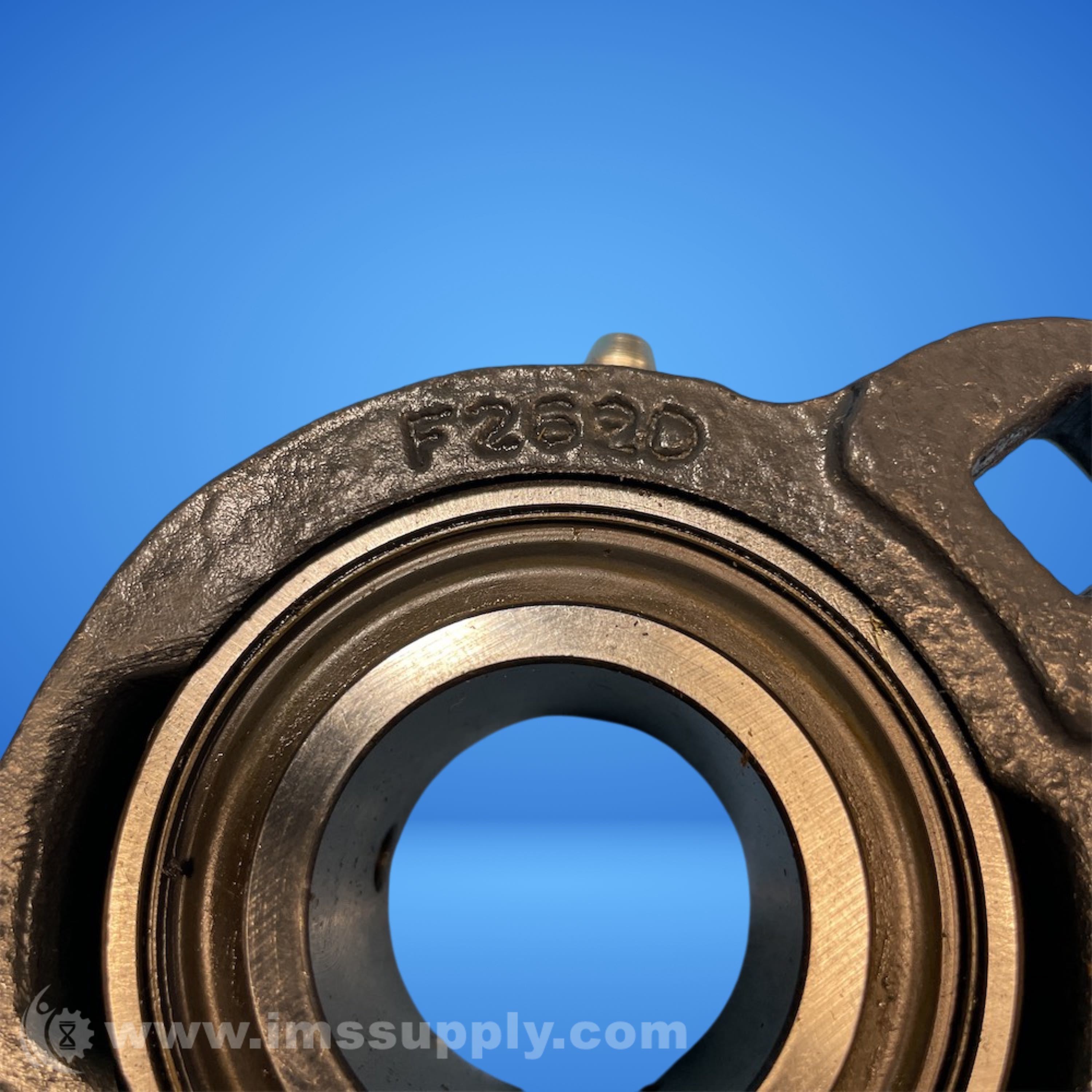

Browning VF2S-120SM Two Bolt Flange Ball Bearing
Mounted ductile iron two bolt flange ball bearing with 1.25 inch bore, set screw locking, and single lip contact seal.
Specifications
- Bore Diameter: 1.25 in
- Housing Material: Ductile Iron
- Bearing Material: 52100 Bearing Steel
- Locking Device: Set Screw
- Seal Type: Single Lip Contact Seal
- Duty Type: Intermediate Duty
- Expansion Type: Non-Expansion Bearing (Fixed)
- Bolt Size: 0.4219 in
- Max Rpm: 3000 rpm
- Radial Dynamic Load Capacity: 4381 lbf
- Radial Static Load Capacity: 2567 lbf
- Operating Temperature Range: -20 to 200 degrees F
- Weight: 1.19 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships on Monday, October 13, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
